NZM 27613 KH (7800023) - Snapper 61" Zero-Turn Mower, 27hp Kohler ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

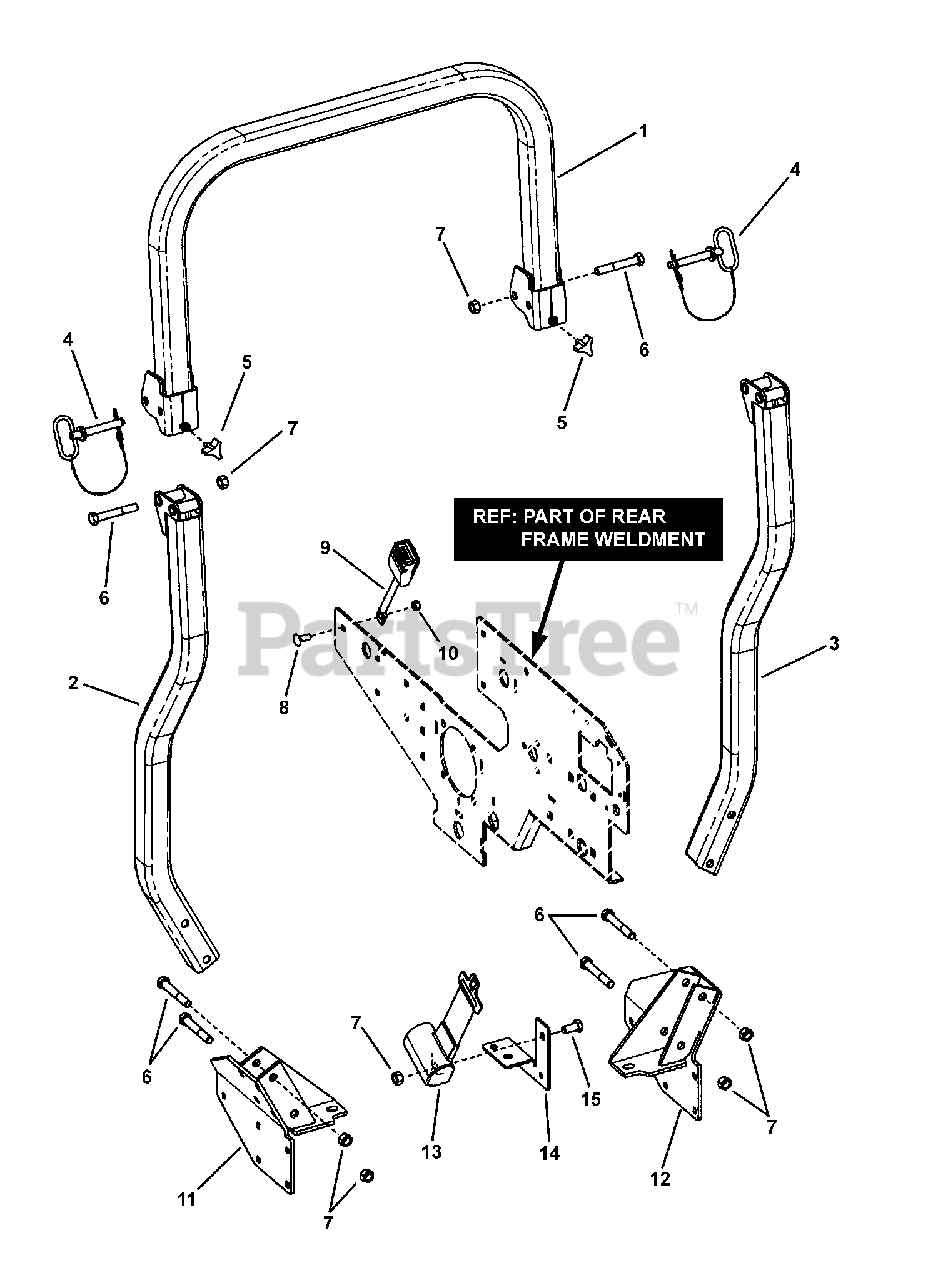

ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

  • Title

1

Snapper 7100091

TOP LOOP, Folding
(Superseded to 7100091YP)

$422.99

$

Usually ships in 2-12 days

0

2

Snapper 7100089

WELDMENT POST, RH
(Superseded to 7100089YP)

$350.99

$

Usually ships in 2-12 days

0

3

Snapper 7100090

WELDMENT POST, LH
(Superseded to 7100090YP)

$350.99

$

Usually ships in 2-12 days

0

4

Snapper 7100095

PIN, Hinge (ROPS)
(Superseded to 7100095YP)

$

$

Not available

5

Snapper 7100099

STAR KNOB (5/16-18 thread)
(Superseded to 7100099YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7092123

SCREW, 1/2-13 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 7092123YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7090975

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

Note: or 7091894

$3.49

$

In Stock, Qty 6

0

8

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7100228

SEAT BELT, w/Metal Strap
(Superseded to 7100228YP)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 8

0

11

Snapper 7400080

WELDMENT, Right Hand Socket
(Superseded to 7400080YP)

Note: see also on REAR FRAME & TANK BRACKETS page

$146.99

$

Usually ships in 2-12 days

0

12

Snapper 7400081

WELDMENT, Left Hand Socket
(Superseded to 7400081YP)

Note: see also on REAR FRAME & TANK BRACKETS page

$146.99

$

Usually ships in 2-12 days

0

13

Snapper 7100227

SEAT BELT, Retracter
(Superseded to 7100227YP)

$91.99

$

Usually ships in 2-12 days

0

14

Snapper 7300139

BRACKET, Seat Beal, LH
(Superseded to 7300139YP)

Note: see also on FUEL TANK ASSEMBLY page

$28.99

$

Usually ships in 2-12 days

0

15

Snapper 7090646

SCREW, 1/2-13 x 1" Hex Head Cap, GR 5

$

$

Not available
