NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler CASTER WHEEL ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

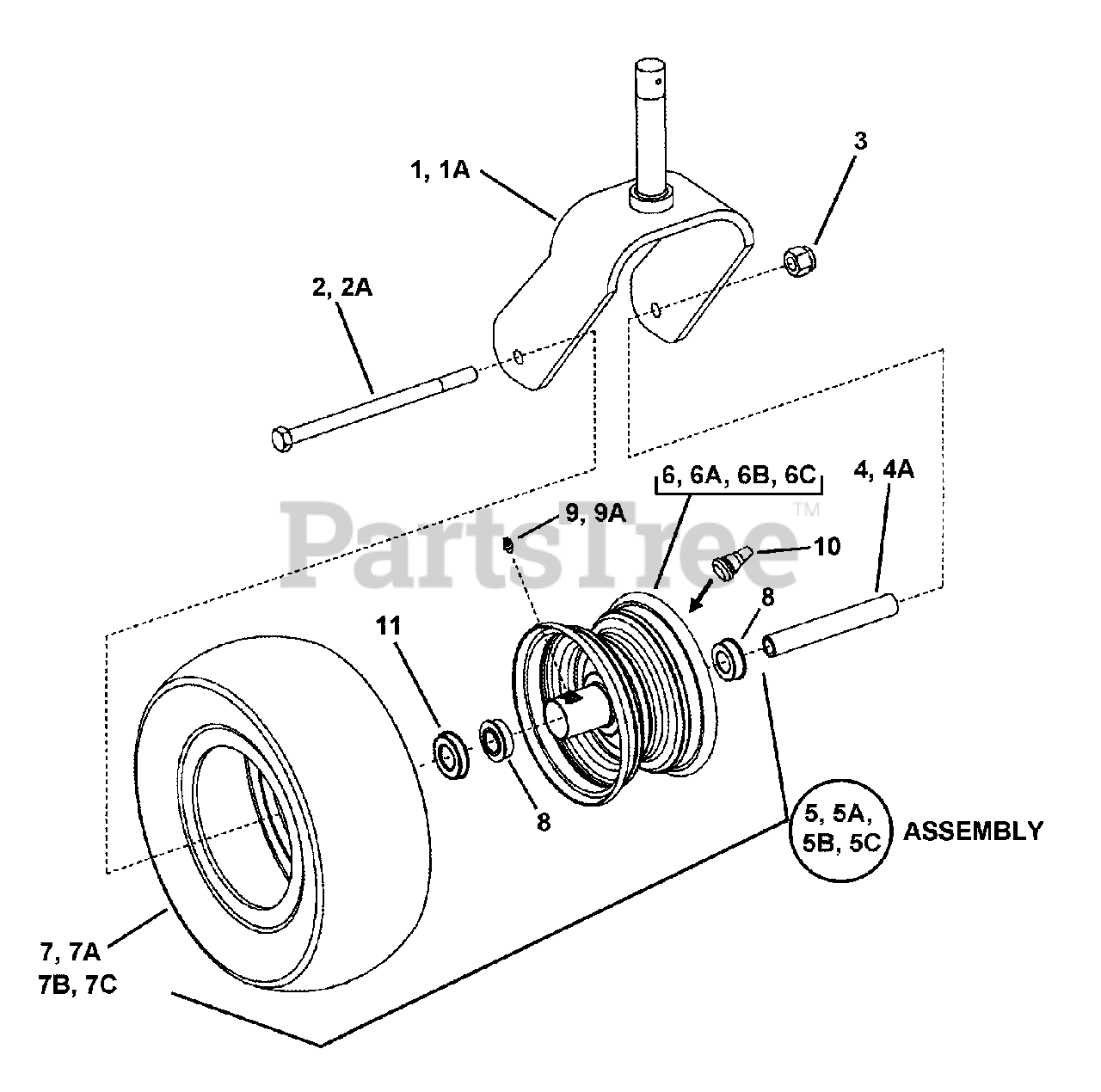

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7058744

WELDMENT, Caster Yoke
(Superseded to 7058744YP)

Note: used on 52" Deck Model only

$

$

Not available

1A

Snapper Pro 7075398

WELDMENT, Caster Yoke, 7-1/4" Wide
(Superseded to 7075398YP)

Note: used on 61" Deck Model only

$244.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

Note: used on 52" Deck Model only

$15.99

$

In Stock, only 1 left!

0

2A

Snapper Pro 7092094

SCREW, 1/2-13 x 9-1/2" Hex Head Cap, GR 5
(Superseded to 7092094YP)

Note: used on 61" Deck Model only

$15.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091325

NUT,1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

4

Snapper Pro 7035476

SPACER, Bearing, 5.29" Long
(Superseded to 7035476YP)

Note: used on 52" Deck Model only

$32.99

$

In Stock, only 2 left!

0

4A

Snapper Pro 7075462

SPACER, Bearing, 7.29" Long
(Superseded to 7075462YP)

Note: used on 61" Deck Model only

$34.99

$

In Stock, only 2 left!

0

5

Snapper Pro 7053496

ASSY, Tire & Wheel (Incl. items 6 thru 11)
(Superseded to 7026188YP)

Note: used on 52" Deck Model only (Series 1)

$206.99

$

In Stock, only 2 left!

0

5A

Snapper Pro 7075461

ASSY, Tire & Wheel (Incl. items 6A, 7A, 8, 9A, 10 & 11)
(Superseded to 7072795YP)

Note: used on 61" Deck Model only (Series 1)

$206.99

$

In Stock, only 1 left!

0

5B

Snapper Pro 7026188

ASSY, Tire & Wheel (Incl. items 6B, 7B, 8, 9, 10 & 11)
(Superseded to 7026188YP)

Note: used on 52" Deck Model only (Series 2)

$206.99

$

In Stock, only 2 left!

0

5C

Snapper Pro 7072795

ASSY, Tire & Wheel (Incl. items 6C, 7C, 8, 9, 10 & 11)
(Superseded to 7072795YP)

Note: used on 61" Deck Model only (Series 2)

$206.99

$

In Stock, only 1 left!

0

6

Snapper Pro 7075335

WELDMENT, Wheel Hub & Rim (Grey)
(Superseded to 7075335YP)

Note: used on 52" Deck Model only (Series 1)

$99.99

$

Usually ships in 2-12 days

0

6A

Snapper Pro 7075460

WELDMENT, Wheel Hub & Rim (Grey)

Note: used on 61" Deck Model only (Series 1)

$

$

Currently unavailable

6B

Snapper Pro 7078276

WELDMENT, Wheel Hub & Rim (Grey)

Note: used on 52" Deck Model only (Series 2)

$

$

Not available

6C

Snapper Pro 7078285

WELDMENT, Wheel Hub & Rim (Grey)

Note: used on 61" Deck Model only (Series 2)

$

$

Currently unavailable

7

Snapper Pro 7074791

TIRE, 13 x 5.06 4 Ply Slick

Note: used on 52" Deck Model only (Series 1)

$64.99

$

Usually ships in 2-12 days

0

7A

Snapper Pro 7075463

TIRE, 13 x 6.5-6 4 Ply Slick
(Superseded to 7075463YP)

Note: used on 61" Deck Model only (Series 1)

$105.99

$

Usually ships in 2-12 days

0

7B

Snapper Pro 7078275

TIRE, 13 x 5.00-6 4 Ply Smooth TL

Note: used on 52" Deck Model only (Series 2)

$

$

Not available

7C

Snapper Pro 7078277

TIRE, 13 x 6.5-6 4 Ply Smooth TL

Note: used on 61" Deck Model only (Series 2)

$

$

Currently unavailable

8

Snapper Pro 7028722

BEARING, .750 Heim
(Superseded to 7028722YP)

$29.99

$

In Stock, only 3 left!

0

9

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

9A

Snapper Pro 7012700

FITTING, Lube, 1/4-28 Thread
(Superseded to 703153)

Note: used on 61" Deck Model only (Series 1)

$3.99

$

In Stock, Qty 8

0

10

Snapper Pro 7012234

VALVE STEM, Air
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

11

Snapper Pro 7075883

SPACER
(Superseded to 7075883YP)

$12.99

$

In Stock, only 2 left!

0
