NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler ENGINE SUB-ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

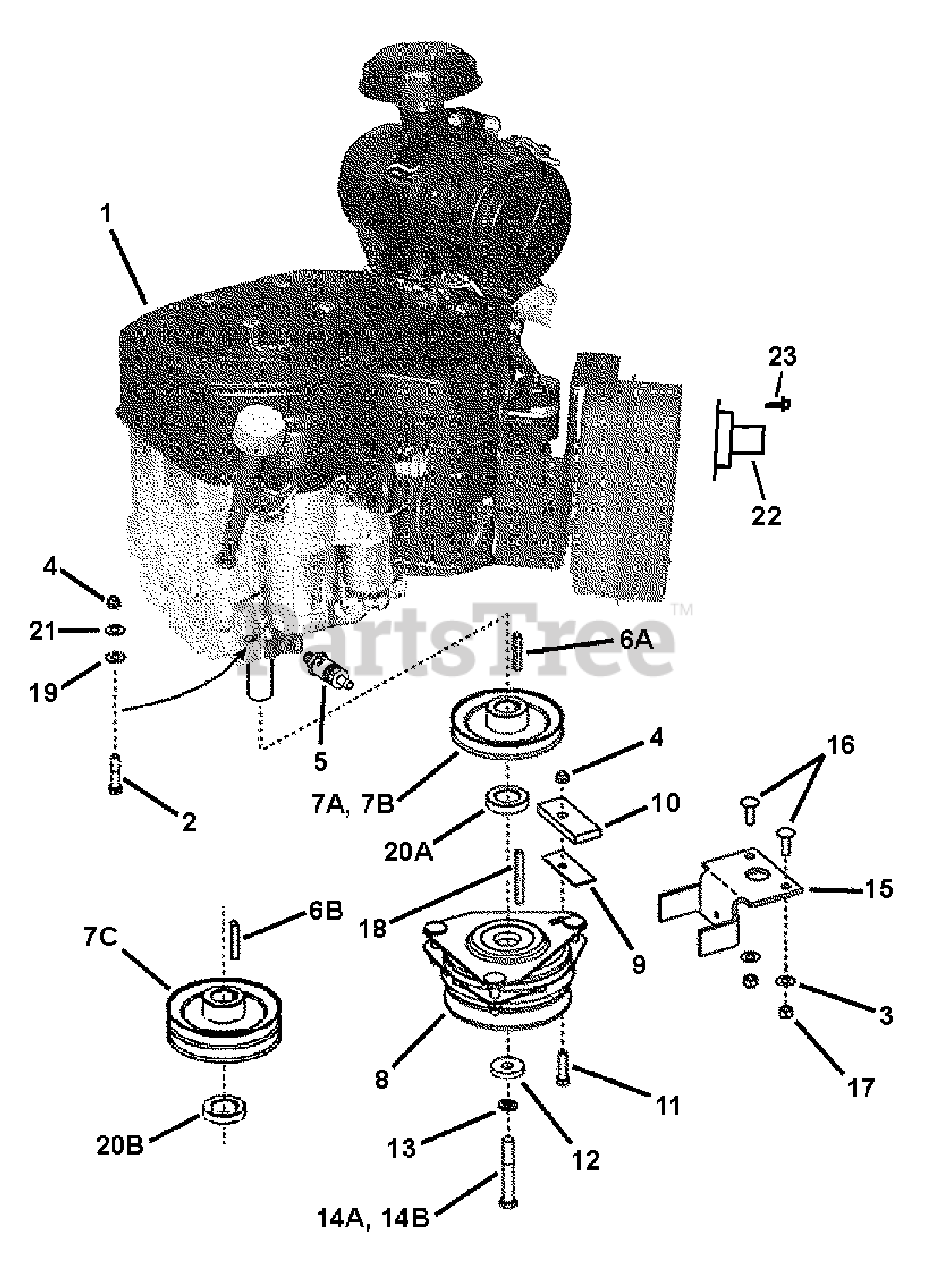

ENGINE SUB-ASSEMBLY Parts Diagram

  • Title

1

** ENGINE, 23HP Kohler (Model CV730S, Spec. PS-CV730-0022)

$

$

Not available

1

** ENGINE, 25HP Kohler (Model CV730S, Spec. PS-CV730-0023)

$

$

Not available

2

Snapper Pro 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5

$

$

Not available

3

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, Qty 10

0

4

Snapper Pro 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

In Stock, only 1 left!

0

5

Snapper Pro 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, only 1 left!

0

6A

Snapper Pro 7012757

KEY, 1/4" Square x 1-1/4" Long
(Superseded to 7012757YP)

Note: used on Series 1 Models

$10.99

$

Usually ships in 2-12 days

0

6B

Snapper Pro 7013250

KEY, 1/4" Square x 1" Long
(Superseded to 5050407X8SM)

Note: used on Series 2 Models

$3.99

$

Usually ships in 2-12 days

0

7A

Snapper Pro 7059099

PULLEY, Engine, Hydro Drive
(Superseded to 7059099YP)

Note: used on NZMJ23521KH Model

$74.99

$

In Stock, only 1 left!

0

7B

Snapper Pro 7075625

PULLEY, Engine, Hydro Drive
(Superseded to 7075625YP)

Note: used on NZMJ25611KH Model

$87.99

$

In Stock, only 2 left!

0

7C

Snapper Pro 7071828

PULLEY, Engine (Double)

Note: used on Series 2 Models

$

$

Not available

8

Snapper Pro 7075081

CLUTCH, Electric (Ogura GT-2)
(Superseded to 7075672YP)

Note: used on NZMJ23521KH Model

$501.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7075672

CLUTCH, Electric (Ogura GT-2.5)
(Superseded to 7075672YP)

Note: used on NZMJ25611KH & both Series 2 Models

$501.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7034448

WASHER, Rectangular Steel
(Superseded to 7034448YP)

$33.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

12

Snapper Pro 7075082

WASHER, .468 x 1.85 x .25 Flat

$12.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

14A

Snapper Pro 5025016X24

BOLT, 7/16-20 X 3" GD5
(Superseded to 5102866)

Note: used on Series 1 Models

$5.49

$

Usually ships in 2-12 days

0

14B

Snapper Pro 7092071

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 (w/Nyloc Patch)
(Superseded to 7092071YP)

Note: used on Series 2 Models

$4.49

$

In Stock, only 4 left!

0

15

Snapper Pro 7034829

BRACKET, Clutch
(Superseded to 7034829YP)

$33.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

17

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

18

Snapper Pro 7017033

KEY, 1/4" Square x 2-1/4" Long
(Superseded to 7017033YP)

$5.49

$

In Stock, Qty 5

0

19

Snapper Pro 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

20A

Snapper Pro 7075084

SPACER, Ogura Clutch

Note: used on Series 1 Models

$18.99

$

Usually ships in 2-12 days

0

20B

Snapper Pro 7025071

SPACER, Clutch
(Superseded to 7025071YP)

Note: used on Series 2 Models

$47.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

22

Snapper Pro 7075734

OUTLET, Muffler

$

$

Not available

23

Snapper Pro 7091581

SCREW, # 8-18 x 1/2" Hex Washer Head Self-Tap
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 7092044

NUT, M8 x 1.25 Hex
(Superseded to 7092044YP)

Note: used on NZMJ23522KH only (not shown)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

Note: used on NZMJ23522KH only (not shown)

$3.49

$

In Stock, Qty 20+

0
