NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler FUEL TANK ASSEMBLY (Series 1) Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

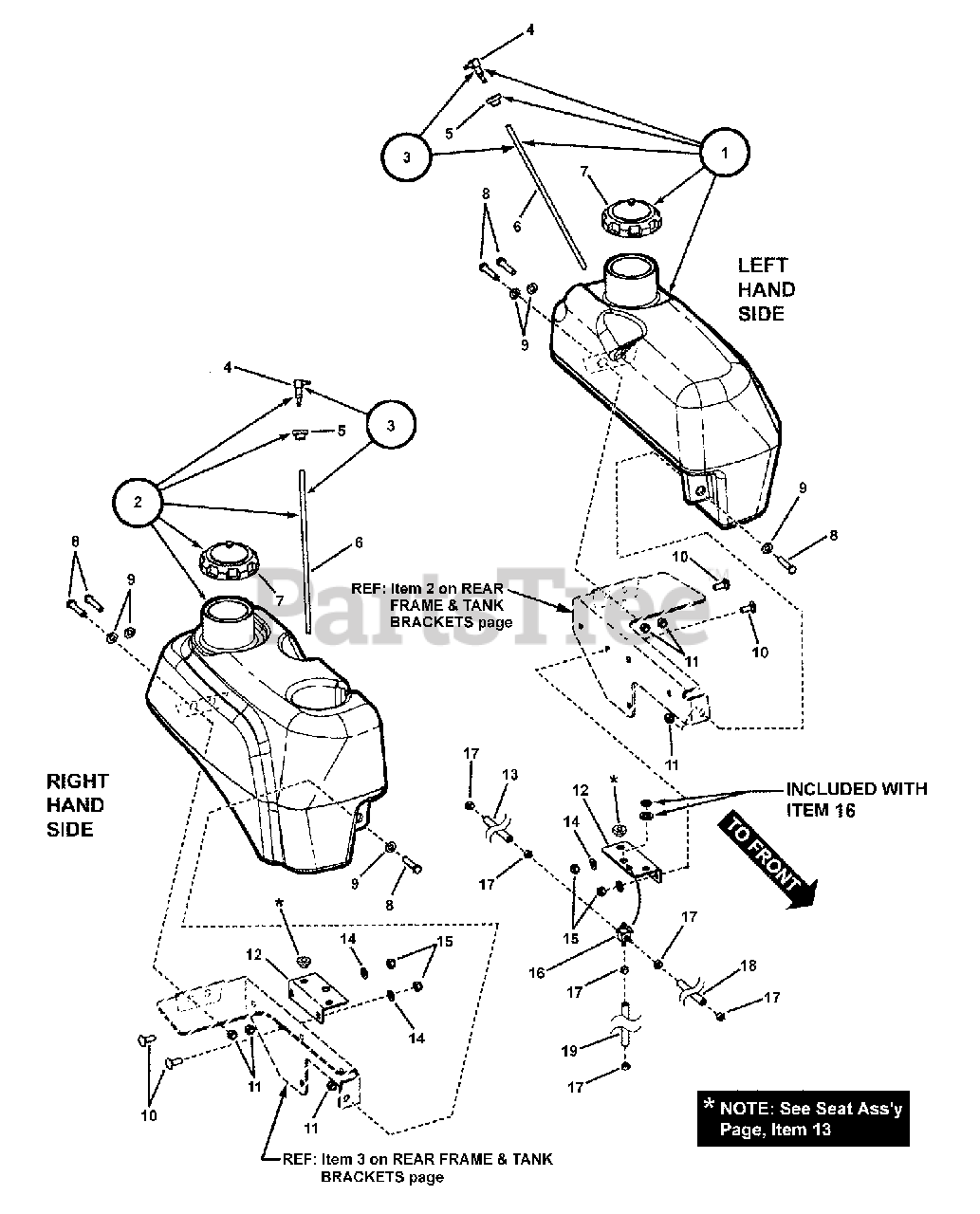

FUEL TANK ASSEMBLY (Series 1) Parts Diagram

  • Title

1

Snapper Pro 7074566

ASSEMBLY, Fuel Tank, Left Hand (Incl. items 3, 5 & 7)
(Superseded to 7074566YP)

$384.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7074565

ASSEMBLY, Fuel Tank, Right Hand (Incl. items 3, 5 & 7)
(Superseded to 7074565YP)

$208.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7049999

ASSEMBLY, Fuel Pickup (Incl. items 4 & 6, one each)
(Superseded to 7049999YP)

$30.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7074835

ELBOW, 90 Degree
(Superseded to 7074835YP)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7012377

GROMMET

$

$

Currently unavailable

6

Snapper Pro 7075106

DIP TUBE

$

$

Currently unavailable

7

Snapper Pro 7075135

CAP, 3-1/2" Fuel
(Superseded to 5101651SM)

$26.99

$

In Stock, Qty 20+

0

8

Snapper Pro 7092089

SCREW, 7/16-14 x 2" Hex Head Cap, GR 5
(Superseded to 7092089YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7090250

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

10

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 3 left!

0

11

Snapper Pro 5025125

NUT, 7/16-14 HEX NYLON LOCK
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 11

0

12

Snapper Pro 7074687

BRACKET, Valve Mount

$13.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7074689

HOSE, 1/4" I.D. x 1'-8" Long Fuel (L.H.)
(Superseded to 791745)

$11.99

$

In Stock, Qty 20+

0

14

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

15

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 7

0

16

Snapper Pro 7044681

ASSEMBLY, 3-Way Fuel Valve
(Superseded to 7044681YP)

$53.99

$

In Stock, only 2 left!

0

17

Snapper Pro 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

18

Snapper Pro 7074688

HOSE, 1/4" I.D. x 3'-7.5" Long Fuel (R.H.)
(Superseded to 7074688YP)

$17.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7075717

HOSE, 1/4" I.D. x 1'-9" Long Fuel
(Superseded to 7075717YP)

$11.99

$

In Stock, Qty 20+
