NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler HYDRO IDLER ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

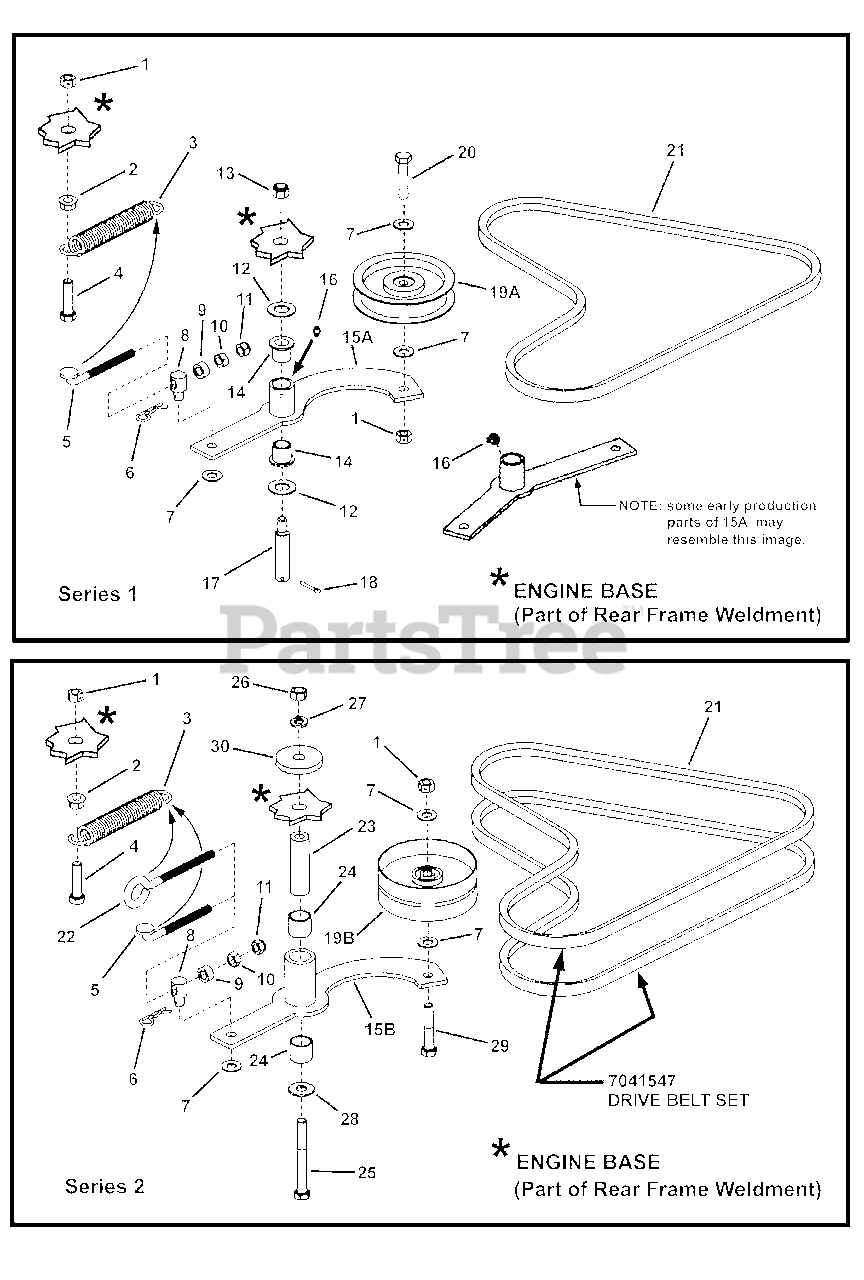

HYDRO IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

2

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7073992

SPRING, Extension
(Superseded to 7073992YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091497

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5

$

$

Not available

5

Snapper Pro 7028728

ADJUSTER, Chain (5/16-18 Thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 20+

0

6

Snapper Pro 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper Pro 7090122

WASHER, 3/8" Flat SAE

$

$

Not available

8

Snapper Pro 7075078

SWIVEL, Adjustable

$17.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7091804

WASHER, 9/16" Flat
(Superseded to 5103679)

Note: Series 1 only

$2.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

Note: Series 1 only

$3.49

$

In Stock, Qty 12

0

14

Snapper Pro 7014409

BUSHING, 9/16" I.D.
(Superseded to 7014409SM)

Note: Series 1 only

$6.99

$

In Stock, Qty 10

0

15A

Snapper Pro 7059094

WELDMENT, Idler Arm
(Superseded to 7059094YP)

Note: Series 1 only

$253.99

$

Usually ships in 2-12 days

0

15B

Snapper Pro 7074440

WELDMENT, Idler Arm
(Superseded to 7074440YP)

Note: Series 2 only

$

$

Not available

16

Snapper Pro 7014669

FITTING, 3/16" Straight Lube
(Superseded to 7014669YP)

Note: Series 1 only

$4.49

$

In Stock, only 2 left!

0

17

Snapper Pro 7035816

PIN, Idler Arm (3/8-24 Thread)
(Superseded to 7035816YP)

Note: Series 1 only

$100.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7091598

PIN, 1/8 x 3/4" Cotter

Note: Series 1 only

$

$

Not available

19A

Snapper Pro 7018574

PULLEY, Flat Idler 4.12" (Backside Idler)
(Superseded to 7018574SM)

Note: Series 1 only

$38.99

$

In Stock, only 4 left!

0

19B

Snapper Pro 7041262

PULLEY, 4" O.D. x .391 I.D. x 1.25 Backside Idler
(Superseded to 7041262YP)

Note: Series 2 only

$49.99

$

In Stock, only 3 left!

0

20

Snapper Pro 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5

Note: Series 1 only

$

$

Not available

21

Snapper Pro 7075109

BELT, Hydro Drive (HA Section, 47.5 Effective Length)
(Superseded to 7075109YP)

Note: qty. 1 for Series 1

$40.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7041547

SET, Matched Traction Drive Belts
(Superseded to 7041547YP)

Note: Series 2 (Kit contains two belts (p/n 7075109)

$74.99

$

In Stock, only 3 left!

0

22

Snapper Pro 7078063

EYEBOLT, 5/16-18

Note: Series 2; may be used instead of 7075078

$5.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 1723806

BOSS, IDLER,YELLOW GV3036304
(Superseded to 1723806SM)

Note: Series 2 only

$70.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 1723805

BUSHING, SLEEVE, 3/4 ID, GV3031224
(Superseded to 1723805SM)

Note: Series 2 only

$12.99

$

In Stock, only 2 left!

0

25

Snapper Pro 7027221

BOLT, 3/8-16 x 3-1/2" Hex Head, GR 5

Note: Series 2 only

$

$

Currently unavailable

26

Snapper Pro 7090130

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

Note: Series 2 only

$4.49

$

In Stock, Qty 5

0

27

Snapper Pro 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Series 2 only

$3.49

$

In Stock, Qty 9

0

28

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Series 2 only

$3.99

$

In Stock, only 1 left!

0

29

Snapper Pro 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR 5

Note: Series 2 only

$

$

Not available

30

Snapper Pro 7075082

WASHER, .468 x 1.85 x .25

Note: Series 2 only

$12.99

$

Usually ships in 2-12 days

0
