NZMJ 25611 KH (7085628) - Snapper 61" Zero-Turn Mower, 25hp Kohler JOYSTICK CONTROL ASSEMBLY (R. H. Side) Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

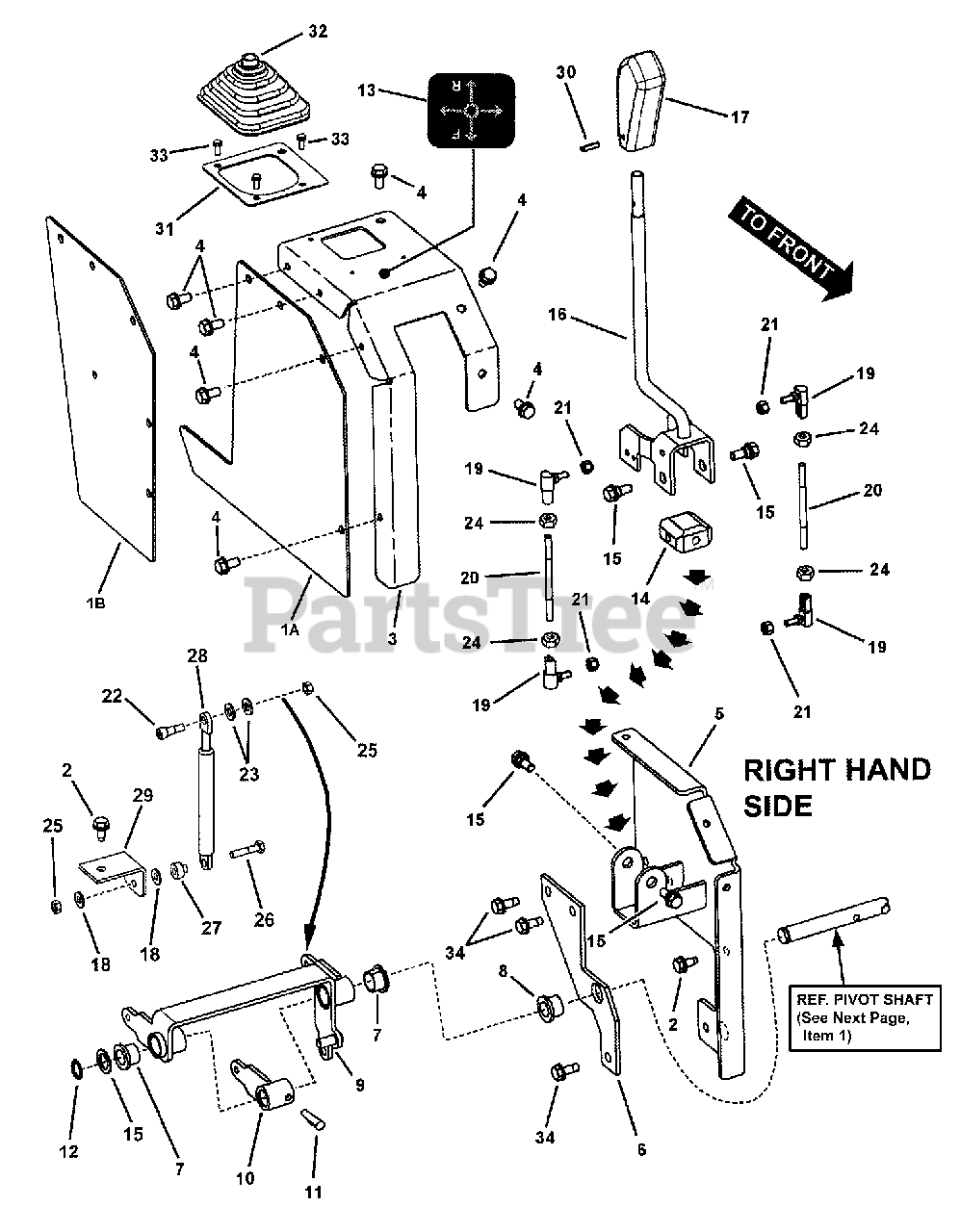

JOYSTICK CONTROL ASSEMBLY (R. H. Side) Parts Diagram

  • Title

1A

Snapper Pro 7075272

COVER, Right Hand Outside
(Superseded to 7075272YP)

Note: used on Series 1

$39.99

$

Usually ships in 2-12 days

0

1B

Snapper Pro 7043207

COVER, Right Hand Outside
(Superseded to 7043207YP)

Note: used on Series 2

$30.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

Note: see also item 2, next page

$3.99

$

In Stock, Qty 18

0

3

Snapper Pro 7075270

LIMITER BRACKET, Right Hand

$

$

Not available

4

Snapper Pro 7091867

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap Yellow Zinc
(Superseded to 7091867YP)

Note: see also item 4, next page

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7053994

WELDMENT, Side Plate Right Hand

$

$

Not available

6

Snapper Pro 7075287

BRACKET, Shaft Support

$19.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7072934

BUSHING, Teflon Impregnated

Note: see also item 7, next page

$7.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7013874

BUSHING 5/8 x 5/8" Bronze

$5.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7053995

WELDMENT, Joystick Pivot
(Superseded to 7053995YP)

$159.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7054002

WELDMENT, Bellcrank
(Superseded to 7054002YP)

$66.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7092091

GROOVE PIN, 1/4 x 1-1/4"
(Superseded to 7092091SM)

Note: see also item 11, next page

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

Note: see also item 12, next page

$3.49

$

In Stock, only 2 left!

0

13

Snapper Pro 7075641

DECAL, Lever Control
(Superseded to 7075641YP)

Note: see also Decal Page

$8.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 7035533

PIVOT, Joystick Control
(Superseded to 7035533YP)

$22.99

$

In Stock, only 2 left!

0

15

Snapper Pro 7091800

SHOULDER BOLT, 5/16-18 thread

Note: was 7015761

$

$

Not available

16

Snapper Pro 7059073

WELDMENT, Joystick Handle

$

$

Not available

17

Snapper Pro 7023656

LEVER, Shift Handle (Grip)
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 18

0

18

Snapper Pro 7091294

WASHER, .28 x .63 x .06 Flat

Note: see also item 18, next page

$

$

Not available

19

Snapper Pro 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

$10.99

$

In Stock, Qty 5

0

20

Snapper Pro 7035909

THREADED ROD, 1/4-28 x 3.85 long

$

$

Not available

21

Snapper Pro 7091812

NUT, 1/4-28 Hex Nyloc

$3.49

$

In Stock, Qty 13

0

22

Snapper Pro 7092010

SHOULDER BOLT, 1/4-20 thread
(Superseded to 7092010YP)

Note: shoulder: 5/16 Dia. x 3/8" long; see also item 22, next page

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 7090188

WASHER, .34 x .69 x .08 Flat

Note: see also item 23, next page

$

$

Not available

24

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

Note: or 7091605

$3.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock

Note: see also item 25, next page

$

$

Not available

26

Snapper Pro 7091814

SCREW, 1/4-20 x 1-1/4" Hex Head Cap
(Superseded to 7091814SM)

Note: see also item 26, next page

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7075026

SPACER, Twin Stick
(Superseded to 7075026YP)

Note: see also item 27, next page

$26.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7075746

DAMPENER, Hydraulic

Note: see also item 28, next page

$

$

Not available

29

Snapper Pro 7074672

BRACKET, Dampener
(Superseded to 7074672YP)

Note: see also item 29, next page

$10.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7090844

ROLL PIN, 3/16 x 3/4"

$

$

Not available

31

Snapper Pro 7075636

BRACKET, Rubber Boot
(Superseded to 7075636YP)

$6.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7035936

BOOT, Joystick, Rubber
(Superseded to 7035936YP)

$50.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

$3.49

$

In Stock, Qty 12

0

34

Snapper Pro 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0
