NZMJ 25613 KH (7800025) - Snapper 61" Zero-Turn Mower, 25hp Kohler ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

61" Zero-Turn Mower, 25hp Kohler

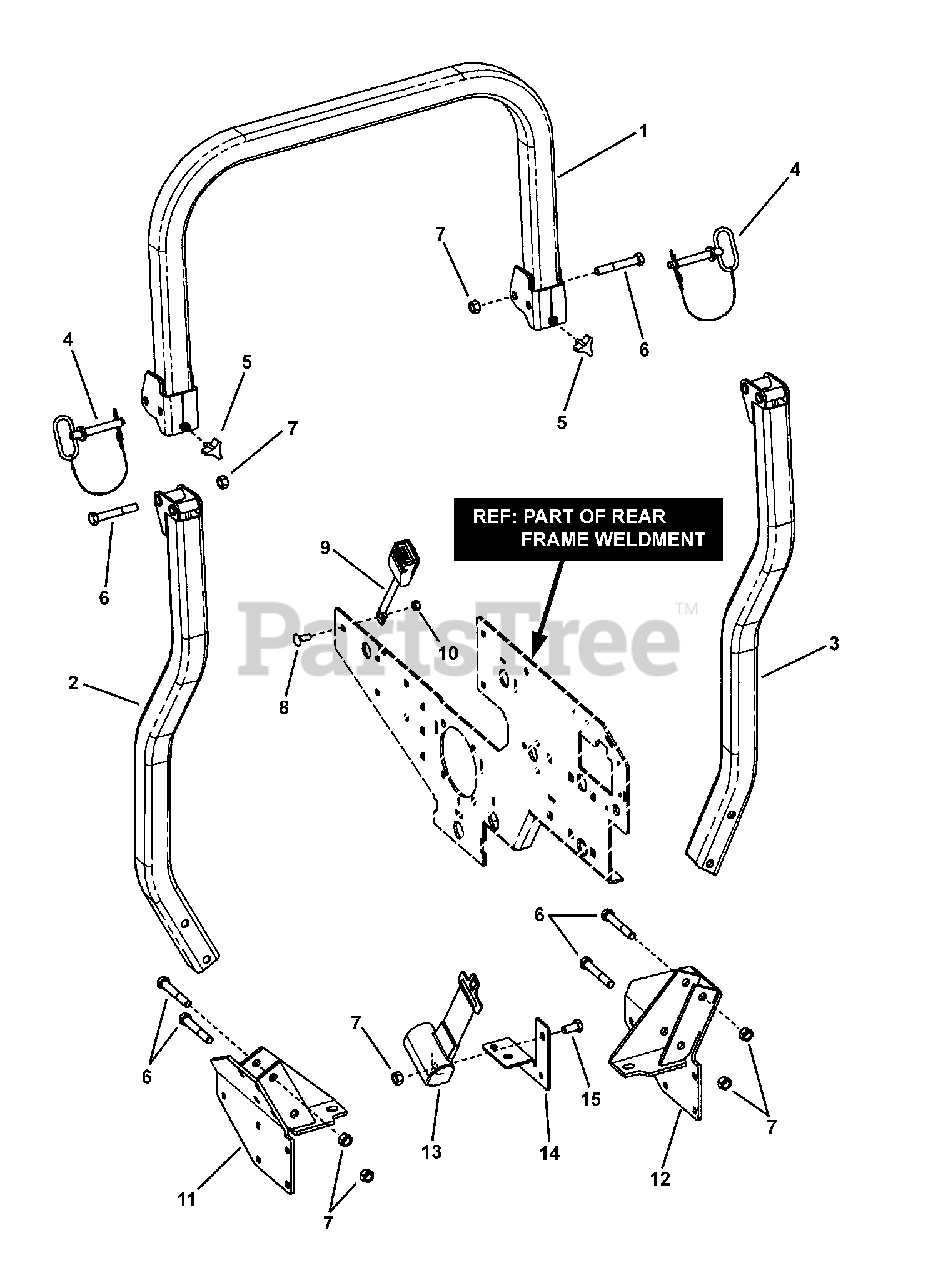

ROLL BAR PROTECTIVE STRUCTURE Parts Diagram

  • Title

1

Snapper 7100091

TOP LOOP, Folding
(Superseded to 7100091YP)

$398.99

$

Usually ships in 2-12 days

0

2

Snapper 7100089

WELDMENT POST, RH
(Superseded to 7100089YP)

$341.99

$

Usually ships in 2-12 days

0

3

Snapper 7100090

WELDMENT POST, LH
(Superseded to 7100090YP)

$341.99

$

Usually ships in 2-12 days

0

4

Snapper 7100095

PIN, Hinge (ROPS)
(Superseded to 7100095YP)

$15.99

$

Usually ships in 2-12 days

0

5

Snapper 7100099

STAR KNOB (5/16-18 thread)
(Superseded to 7100099YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7092123

SCREW, 1/2-13 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 7092123YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7090975

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

Note: or 7091894

$3.49

$

In Stock, Qty 10

0

8

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7100228

SEAT BELT, w/Metal Strap
(Superseded to 7100228YP)

$42.99

$

Usually ships in 2-12 days

0

10

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

11

Snapper 7400080

WELDMENT, Right Hand Socket
(Superseded to 7400080YP)

Note: see also on REAR FRAME & TANK BRACKETS page

$142.99

$

Usually ships in 2-12 days

0

12

Snapper 7400081

WELDMENT, Left Hand Socket
(Superseded to 7400081YP)

Note: see also on REAR FRAME & TANK BRACKETS page

$142.99

$

Usually ships in 2-12 days

0

13

Snapper 7100227

SEAT BELT, Retracter
(Superseded to 7100227YP)

$86.99

$

Usually ships in 2-12 days

0

14

Snapper 7300139

BRACKET, Seat Beal, LH
(Superseded to 7300139YP)

Note: see also on FUEL TANK ASSEMBLY page

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7090646

SCREW, 1/2-13 x 1" Hex Head Cap, GR 5

$

$

Not available
