NZMX 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler FUEL TANK ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

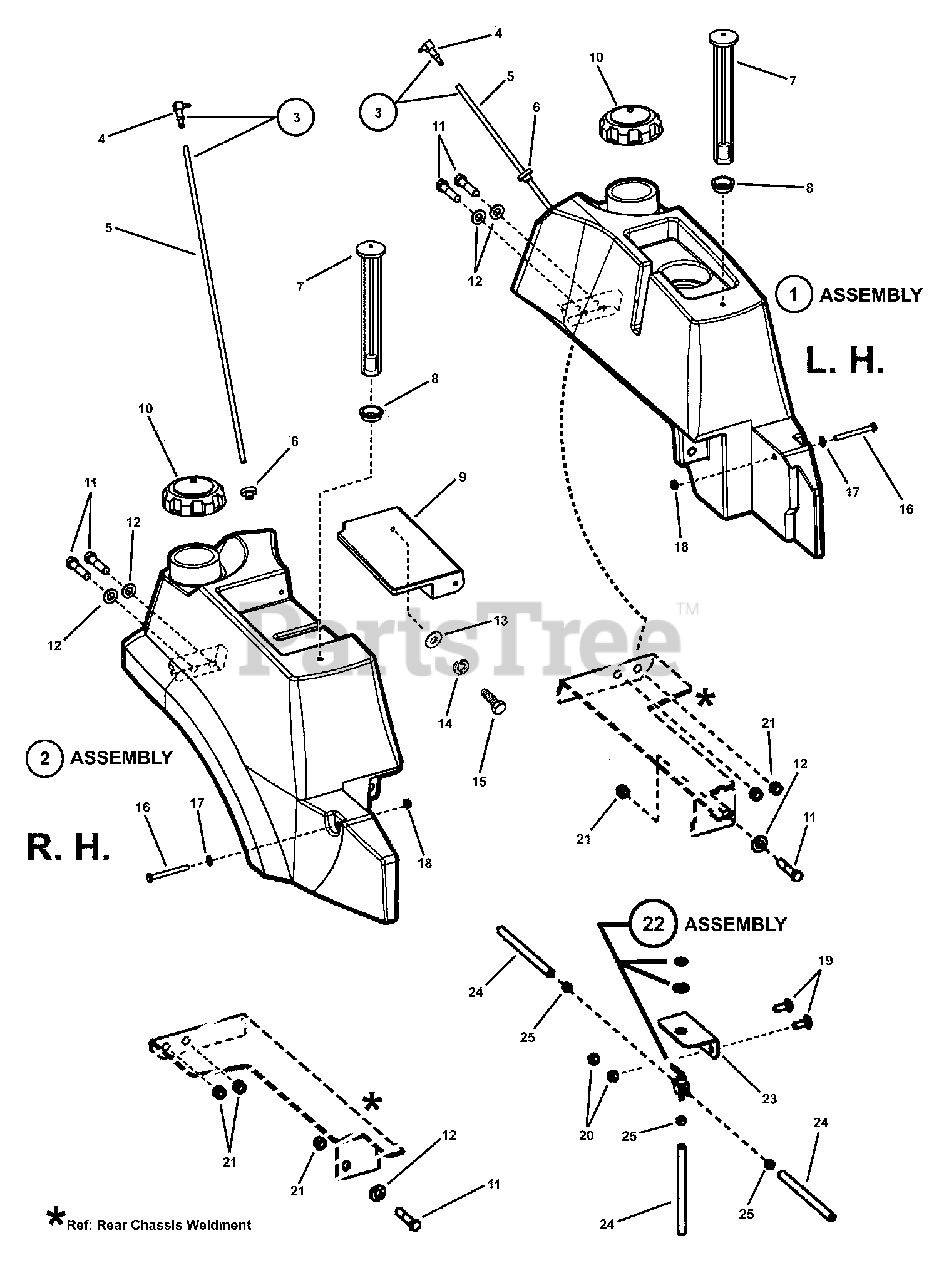

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7024669

ASSEMBLY, LH Fuel Tank

Note: includes: tank (7042924) plus items 3, 6, 7, 8 & 10

$

$

Currently unavailable

2

Snapper Pro 7100217

ASSEMBLY, RH Fuel Tank

Note: includes: tank (7042925) plus items 3, 6, 7, 9 & 10

$

$

Currently unavailable

3

Snapper Pro 7046326

ASSEMBLY, Fuel Pickup
(Superseded to 7046326YP)

Note: includes items 4 & 5

$33.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7074835

ELBOW, 90 Degree
(Superseded to 7074835YP)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7046804

TUBE, Pickup
(Superseded to 7046326YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7012337

GROMMET, Tube
(Superseded to 1654930SM)

Note: Dapco p/n 10672

$7.99

$

In Stock, Qty 20+

0

7

Snapper Pro 7078165

GAGE, Fuel
(Superseded to 7078165YP)

$

$

Not available

8

Snapper Pro 7011247

GROMMET, Gage
(Superseded to 5022917X1SM)

$7.49

$

In Stock, Qty 17

0

9

Snapper Pro 7100211

LID, Fuel Tank

$

$

Currently unavailable

10

Snapper Pro 7075135

CAP, 3-1/2" Fuel
(Superseded to 5101651SM)

Note: Kelch p/n 201906

$26.99

$

In Stock, only 1 left!

0

11

Snapper Pro 7092089

SCREW, 7/16-14 x 2" Hex Head Cap, GR 5
(Superseded to 7092089YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 7090250

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, Qty 20+

0

13

Snapper Pro 7091294

WASHER, 1/4" Flat

$

$

Not available

14

Snapper Pro 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7090825

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 7092088

SCREW, 5/16-18 x 2-1/2" Hex Head Cap, GR 5

$

$

Currently unavailable

17

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

18

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

20

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

21

Snapper Pro 5025125

NUT, 7/16-14 HEX NYLON LOCK
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 12

0

22

Snapper Pro 7044681

FUEL VALVE, 3-Way
(Superseded to 7044681YP)

$53.99

$

In Stock, only 1 left!

0

23

Snapper Pro 7300382

BRACKET, Tank Selector
(Superseded to 7300382YP)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7074688

HOSE, 1/4" I.D. x 3'-7.5" Long Fuel
(Superseded to 7074688YP)

$17.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

26

Snapper Pro 7012080

CABLE TIE, 7" Long (not shown)
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
