NZMXL 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler 61" CUTTING DECK ASSEMBLY (Sub Assy) Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

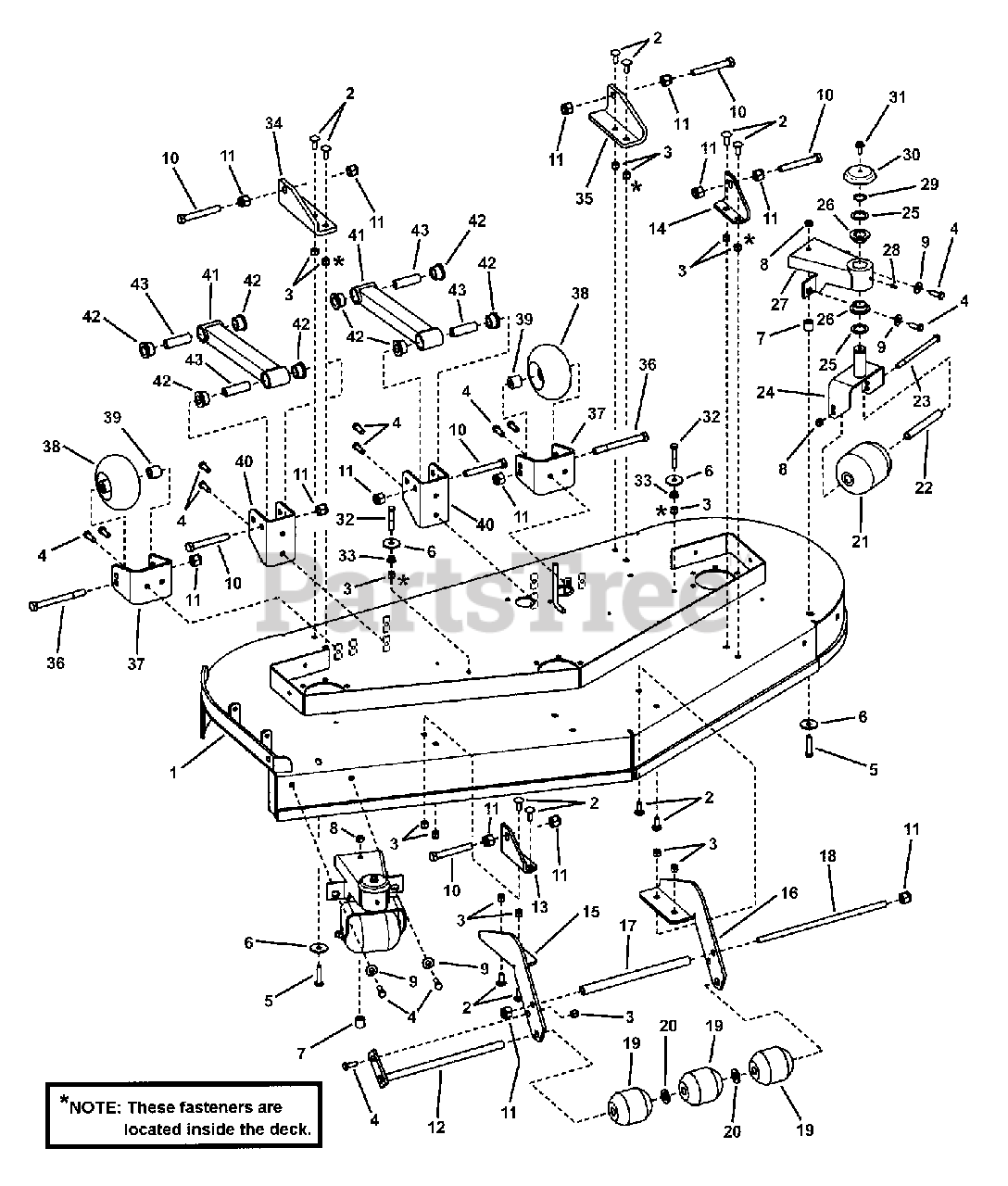

61" CUTTING DECK ASSEMBLY (Sub Assy) Parts Diagram

  • Title

1

Snapper 7400157

WELDMENT, 61" Deck, NZMX
(Superseded to 7400157YP)

$1652.99

$

Usually ships in 2-12 days

0

2

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

4

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

6

Snapper 7091331

WASHER, .406 x 1.50 x .120 Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 6

0

7

Snapper 7044752

SPACER, 3/4 O.D. x 13/32 I. D. x 3/4" long
(Superseded to 7044752YP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

9

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 1 left!

0

10

Snapper 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap
(Superseded to 7029355YP)

$5.99

$

In Stock, only 4 left!

0

11

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

12

Snapper 7027327

WELDMENT, Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

13

Snapper 7300420

BRACKET, RH Front
(Superseded to 7300420YP)

$33.99

$

Usually ships in 2-12 days

0

14

Snapper 7300421

BRACKET, LH Front
(Superseded to 7300421YP)

$33.99

$

Usually ships in 2-12 days

0

15

Snapper 7300212

FRONT ROLLER BRKT, RH

$

$

Not available

16

Snapper 7300214

FRONT ROLLER BRKT, LH
(Superseded to 7300214YP)

$60.99

$

Usually ships in 2-12 days

0

17

Snapper 7036460

TUBE, Roller

$

$

Not available

18

Snapper 7036461

ROD, Roller (1/2-13 Threaded)
(Superseded to 7036461YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: or 7079226

$16.99

$

In Stock, Qty 8

0

20

Snapper 7027344

WASHER, 5/8" Flat SAE
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7079868

ROLLER 3-3/4 Dia. x 4-13/16" long
(Superseded to 7079868YP)

Note: Polyethylene

$63.99

$

In Stock, only 3 left!

0

22

Snapper 7079882

TUBE, Axle
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

23

Snapper 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 7

0

24

Snapper 7400153

WELDMENT, Caster, Gauge Wheel
(Superseded to 7400153YP)

$179.99

$

Usually ships in 2-12 days

0

25

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

26

Snapper 7074720

BUSHING, Idler (Powdered Metal)
(Superseded to 7074720SM)

$8.49

$

In Stock, Qty 20+

0

27

Snapper 7400154

WELDMENT, Gauge Wheel Support
(Superseded to 7400154YP)

$97.99

$

Usually ships in 2-12 days

0

28

Snapper 7014669

LUBE FITTING, 3/16"
(Superseded to 7014669YP)

$4.49

$

In Stock, only 2 left!

0

29

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, only 2 left!

0

30

Snapper 7044839

CAP, Caster Shaft
(Superseded to 7036578YP)

$30.99

$

In Stock, only 1 left!

0

31

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

33

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

34

Snapper 7300418

BRACKET, RH Rear
(Superseded to 7300418YP)

$48.99

$

Usually ships in 2-12 days

0

35

Snapper 7300419

BRACKET, LH Rear
(Superseded to 7300419YP)

$48.99

$

Usually ships in 2-12 days

0

36

Snapper 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 6

0

37

Snapper 7036457

BRACKET, Gauge Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

38

Snapper 7029264

GAUGE WHEEL, Polyethylene
(Superseded to 7029264YP)

$14.99

$

Usually ships in 2-12 days

0

39

Snapper 7036456

SPACER, Gauge Wheel

$

$

Not available

40

Snapper 7300064

BRACKET, Stabilizer
(Superseded to 7300064YP)

$30.99

$

Usually ships in 2-12 days

0

41

Snapper 7044823

WELDMENT, Pusher Bar

$

$

Not available

42

Snapper 7029258

BUSHING- Suspension
(Superseded to 7029258YP)

$8.49

$

In Stock, Qty 20+

0

43

Snapper 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0
