NZMXL 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler DECK SPINDLE ASSEMBLIES Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

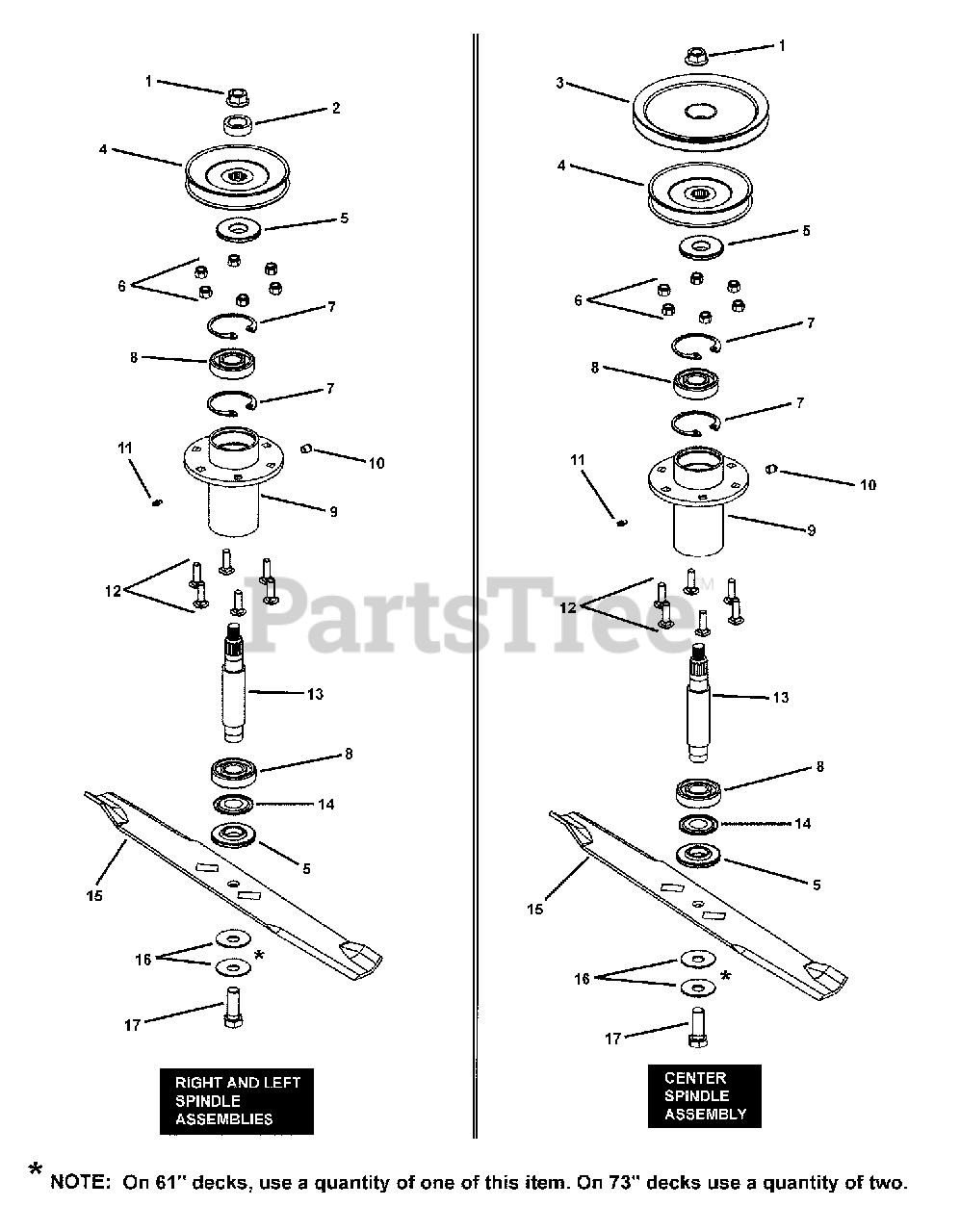

DECK SPINDLE ASSEMBLIES Parts Diagram

  • Title

1

Snapper 7063237

NUT, 5/8-11 Hex Flange Lock, GR 5
(Superseded to 7063237YP)

$4.49

$

In Stock, Qty 12

0

2

Snapper 7029270

WASHER, Spindle
(Superseded to 7029270YP)

$25.99

$

In Stock, Qty 5

0

3

Snapper 7029250

PULLEY, Driven (61" Deck only)
(Superseded to 7029250YP)

$98.99

$

Usually ships in 2-12 days

0

3

Snapper 7100518

PULLEY- Driven (73" Deck only)
(Superseded to 7100518YP)

$117.99

$

Usually ships in 2-12 days

0

4

Snapper 7029245

PULLEY, 5.75" Diameter
(Superseded to 7029245YP)

$59.99

$

In Stock, only 1 left!

0

5

Snapper 7074401

WASHER, Spindle
(Superseded to 7074401YP)

$

$

Not available

6

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

7

Snapper 7091154

RETAINING RING, Internal
(Superseded to 7091154YP)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7029422

BALL BEARING (double sealed, double shield)
(Superseded to 7029422YP)

$

$

Not available

9

Snapper 7045092

WELDMENT, 48" Spindle
(Superseded to 7045092YP)

$176.99

$

In Stock, only 2 left!

0

10

Snapper 7029384

VENT, Spindle (Alemite # 321839)
(Superseded to 7029384YP)

$13.99

$

In Stock, Qty 5

0

11

Snapper 7076998

LUBE FITTING, 1/4-28 Straight
(Superseded to 703153)

Note: or 7014669

$3.99

$

In Stock, only 2 left!

0

12

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

Note: used on 61" Decks

$4.49

$

In Stock, only 4 left!

0

12

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703130)

Note: used on 73" decks

$3.99

$

In Stock, Qty 15

0

13

Snapper 7200025

SPINDLE SHAFT (5/8-11 threads)
(Superseded to 7200025YP)

$69.99

$

Usually ships in 2-12 days

0

14

Snapper 7063238

SEAL, Nylos
(Superseded to 7063238YP)

$56.99

$

In Stock, Qty 6

0

15

Snapper 7075770

BLADE, 21" (61" Deck only)
(Superseded to 7075770YP)

$28.99

$

In Stock, Qty 9

0

15

Snapper 7100721

BLADE, 25" (71" Deck only)
(Superseded to 7046625BMYP)

$33.99

$

In Stock, only 3 left!

0

16

Snapper 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 8

0

17

Snapper 7091976

SCREW, 5/8-11 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091976YP)

$3.99

$

Usually ships in 2-12 days

0
