NZMXL 30614 KH (7800088) - Snapper 61" Zero-Turn Mower, 30hp Kohler FRONT CHASSIS ASSEMBLY (Deck Lift) Parts Diagram

61" Zero-Turn Mower, 30hp Kohler

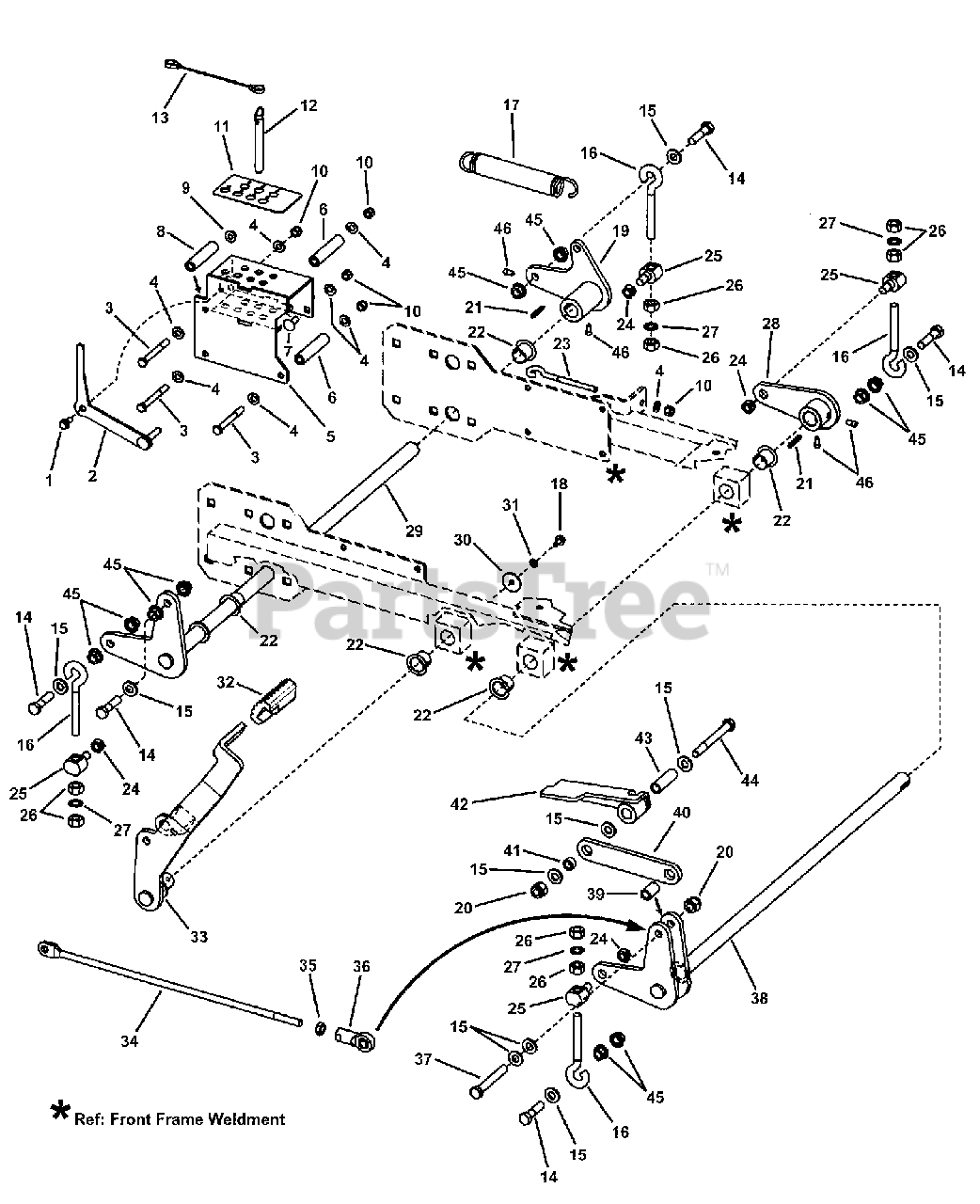

FRONT CHASSIS ASSEMBLY (Deck Lift) Parts Diagram

  • Title

1

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, Qty 5

0

2

Snapper 7400161

WELDMENT, Transport Lever
(Superseded to 7400161YP)

$30.99

$

Usually ships in 2-12 days

0

3

Snapper 7090591

SCREW, 3/8-16 x 4-1/2 Hex Head Cap, GR 5
(Superseded to 7090591YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7400087

WELDMENT, Detent

$

$

Not available

6

Snapper 7200075

SPACER LIFT
(Superseded to 7200075YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

8

Snapper 7200080

DETENT SPACER, Upper
(Superseded to 7200080YP)

$44.99

$

Usually ships in 2-12 days

0

9

Snapper 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 8

0

10

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0

11

Snapper 7100652

DECAL, Detent Channel
(Superseded to 7100652YP)

$24.99

$

Usually ships in 2-12 days

0

12

Snapper 7100804

CLIP, Roll Pin, 1/2"
(Superseded to 7100804YP)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7075086

STRAP, Tether
(Superseded to 7075086YP)

$9.99

$

In Stock, only 1 left!

0

14

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 7091587

WASHER, .531 I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7101001

EYEBOLT, 1/2-13 Open
(Superseded to 7101001YP)

Note: or 7074700

$27.99

$

Usually ships in 2-12 days

0

17

Snapper 7035667

SPRING, Extension, Lift Assist
(Superseded to 7035667YP)

$34.99

$

In Stock, only 3 left!

0

18

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

19

Snapper 7400050

WELDMENT, Bell Crank
(Superseded to 7400050YP)

$211.99

$

Usually ships in 2-12 days

0

20

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 5

0

21

Snapper 7091803

KEY, 3/16" Square x 1-1/2"
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

22

Snapper 7073326

BUSHING, Teflon
(Superseded to 7073326YP)

$46.99

$

Usually ships in 2-12 days

0

23

Snapper 7044860

EYEBOLT, 3/8-16 x 3"
(Superseded to 7044860YP)

Note: spring anchor

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 5

0

25

Snapper 7075782

SWIVEL, Rear Lift (1/2-13 thread)

$

$

Not available

26

Snapper 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

27

Snapper 7090509

WASHER, 3/8" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 5

0

28

Snapper 7400051

WELDMENT, Front Lift LH
(Superseded to 7400051YP)

$55.99

$

Usually ships in 2-12 days

0

29

Snapper 7400049

WELDMENT, Rear Lift
(Superseded to 7400049YP)

$198.99

$

Usually ships in 2-12 days

0

30

Snapper 7092063

WASHER, 5/16" Belleville
(Superseded to 703939)

$7.49

$

Usually ships in 2-12 days

0

31

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

32

Snapper 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$11.99

$

In Stock, only 1 left!

0

33

Snapper 7400147

WELDMENT, Foot Assist
(Superseded to 7400147YP)

$227.99

$

Usually ships in 2-12 days

0

34

Snapper 7100274

ROD, Transfer (1/2-20 thread)
(Superseded to 7100274YP)

$32.99

$

Usually ships in 2-12 days

0

35

Snapper 7090559

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, Qty 15

0

36

Snapper 7073012

ROD END, 1/2-20 Female
(Superseded to 7073012YP)

$70.99

$

Usually ships in 2-12 days

0

37

Snapper 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap
(Superseded to 7029355YP)

$5.99

$

In Stock, only 4 left!

0

38

Snapper 7400017

WELDMENT, Front Deck Lift
(Superseded to 7400017YP)

$205.99

$

Usually ships in 2-12 days

0

39

Snapper 7200059

SPACER
(Superseded to 7200059YP)

$30.99

$

Usually ships in 2-12 days

0

40

Snapper 7300281

LINK PLATE
(Superseded to 7300281YP)

$23.99

$

Usually ships in 2-12 days

0

41

Snapper 7200083

SPACER, Bearing
(Superseded to 7200083YP)

$30.99

$

Usually ships in 2-12 days

0

42

Snapper 7400117

WELDMENT, Height Adjuster
(Superseded to 7400117YP)

$138.99

$

Usually ships in 2-12 days

0

43

Snapper 7200077

SPACER, Bearing
(Superseded to 7200077YP)

$30.99

$

Usually ships in 2-12 days

0

44

Snapper 7900033

BOLT, 1/2-13 x 4-1/2" Hex Head, GR 5
(Superseded to 7900033YP)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7091544

NUT, 1/2-13 Hex Flange Lock GR 5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 7090848

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

Usually ships in 2-12 days

0
