NZMXL 32734 BV (7800073) - Snapper 73" Zero-Turn Mower, 32hp B&S 73" CUTTING DECK ASSEMBLY (Final Assy) Parts Diagram

73" Zero-Turn Mower, 32hp B&S

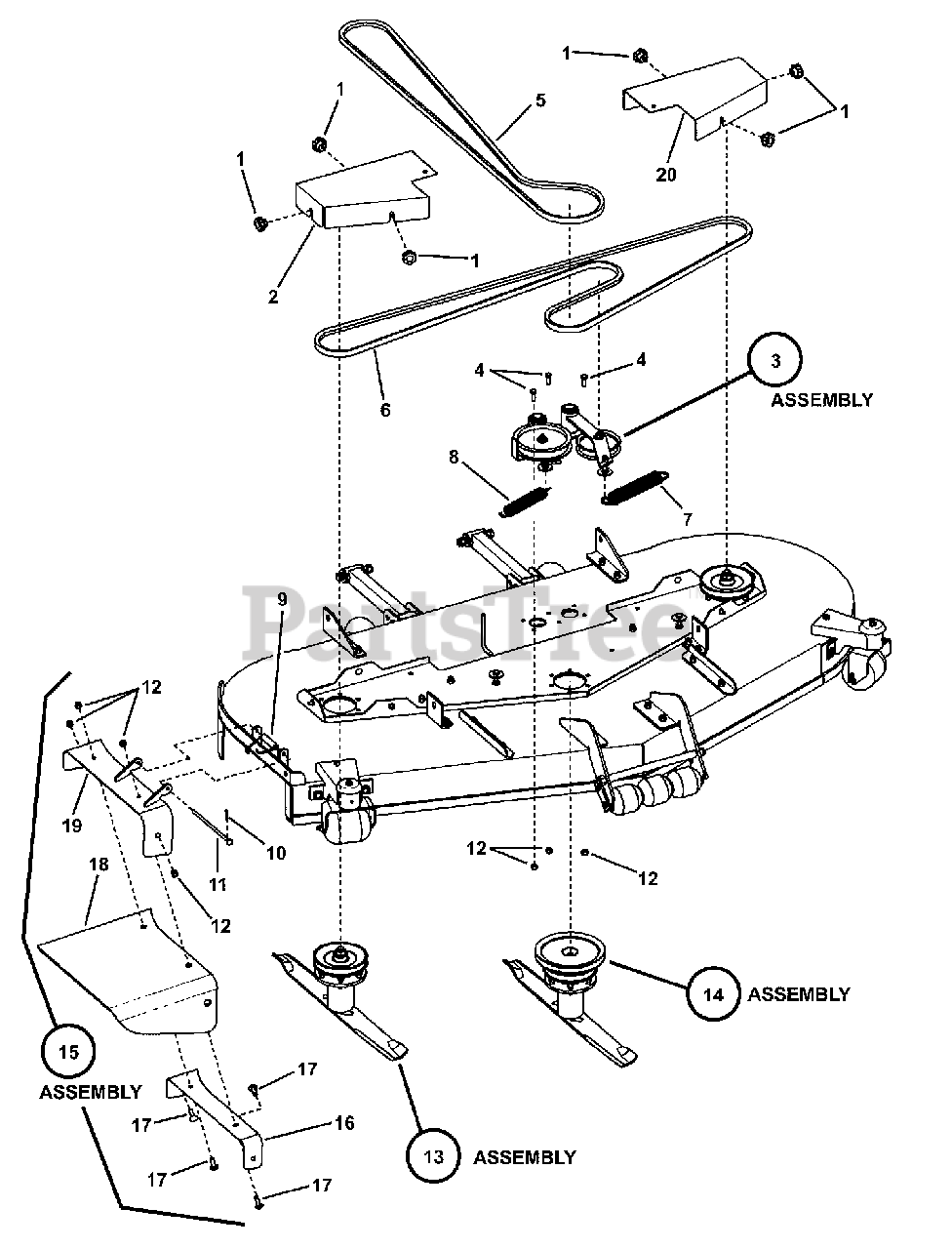

73" CUTTING DECK ASSEMBLY (Final Assy) Parts Diagram

  • Title

1

Snapper 7100516

KNOB, Fluted, 5/16-18 x 5/8"
(Superseded to 7100516YP)

$10.99

$

In Stock, Qty 5

0

2

Snapper 7300129

GUARD, Pulley, RH
(Superseded to 7300129YP)

$59.99

$

Usually ships in 2-12 days

0

3

ASSEMBLY, Idler (see breakdown on Idler Assy page)

$

$

Not available

4

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper 7100519

* BELT, HB Section, (engine to deck)
(Superseded to 7100519YP)

Note: (106.434" nominal effective length)

$74.99

$

Usually ships in 2-12 days

0

6

Snapper 7100521

* V-BELT, Secondary, HB Section
(Superseded to 7100521YP)

Note: (141.871" nominal effective length)

$125.99

$

In Stock, only 2 left!

0

7

Snapper 7035667

SPRING, Extension, Lift Assist
(Superseded to 7035667YP)

$32.99

$

In Stock, only 4 left!

0

8

Snapper 7072915

SPRING, Idler Primary (1.25" O.D. x 10" long)
(Superseded to 7072915YP)

$19.99

$

In Stock, only 1 left!

0

9

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

10

Snapper 7091313

COTTER PIN, 3/32 X 1"
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

11

Snapper 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

13

ASSEMBLY, Spindle (ref. Deck Spindle Assy page)

$

$

Not available

14

ASSEMBLY, Center Spindle (ref. Deck Spindle Assy page)

$

$

Not available

15

Snapper 7500233

ASSEMBLY, 73" Discharge Chute

Note: incl. items 12, 16, 17, 18 & 19

$

$

Currently unavailable

16

Snapper 7300368

DEFLECTOR, Bottom, 73" Deck
(Superseded to 7300368YP)

$29.99

$

Usually ships in 2-12 days

0

17

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 15

0

18

Snapper 7100669

CHUTE, Rubber, 73"
(Superseded to 7100669YP)

$144.99

$

Usually ships in 2-12 days

0

19

Snapper 7400148

WELDMENT, Discharge Chute Top, 73"
(Superseded to 7400148YP)

$63.99

$

Usually ships in 2-12 days

0

20

Snapper 7300371

GUARD, Pulley, LH
(Superseded to 7300371YP)

$59.99

$

Usually ships in 2-12 days

0
