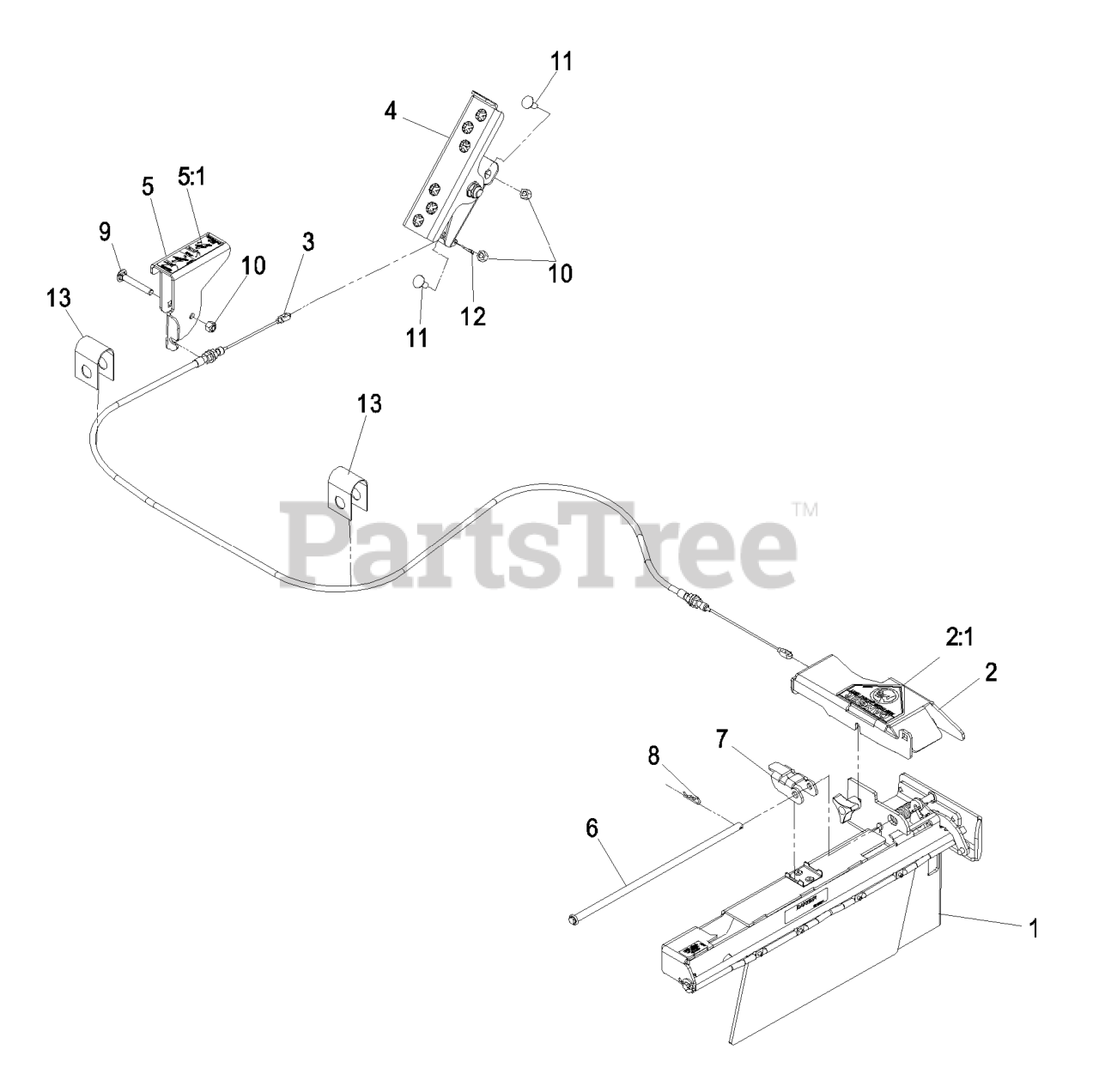

OCD02 - Exmark Operator Controlled Discharge OCD02 Assembly Parts Diagram

Operator Controlled Discharge

OCD02 Assembly Parts Diagram

  • Title

1

Exmark 109-7160

Asm, Gate Linkage

$

$

Not available

2

Exmark 109-9984

Asm, Cable Bracket

$85.99

$

In Stock, only 1 left!

0

2:1

Exmark 1-403005

Decal, Danger

$5.49

$

In Stock, Qty 20+

0

3

Exmark 109-8256

Cable, Discharge Gate

$103.99

$

In Stock, only 2 left!

0

4

Exmark 109-9059

Asm, Gate Pedal

$178.99

$

Usually ships in 3-6 days

0

5

Exmark 109-7167

Asm, Cable Bracket

$63.99

$

Usually ships in 3-6 days

0

5:1

Exmark 109-9928

Decal, Operation

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 109-9581

Rod, Chute Pivot

$25.99

$

Usually ships in 3-6 days

0

7

Exmark 109-9595

Bracket, Link Pivot

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 1-806003

Hairpin, Cotter

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3230-7

Bolt, Carriage 5/16-18 X 2 1/4

$0.99

$

In Stock, Qty 10

0

10

Exmark 3296-29

Nut, Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3230-23

Bolt, Carriage 5/16-18 X 3/4, Short Neck

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3272-5

Pin, Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 8

0

13

Exmark 109-4101

Support, Cable

$8.99

$

Usually ships in 3-6 days

0
