OCDWB01 - Exmark Walk-Behind Operator Discharge Control (SN: 920000 - 999999) (2011)

Walk-Behind Operator Discharge Control

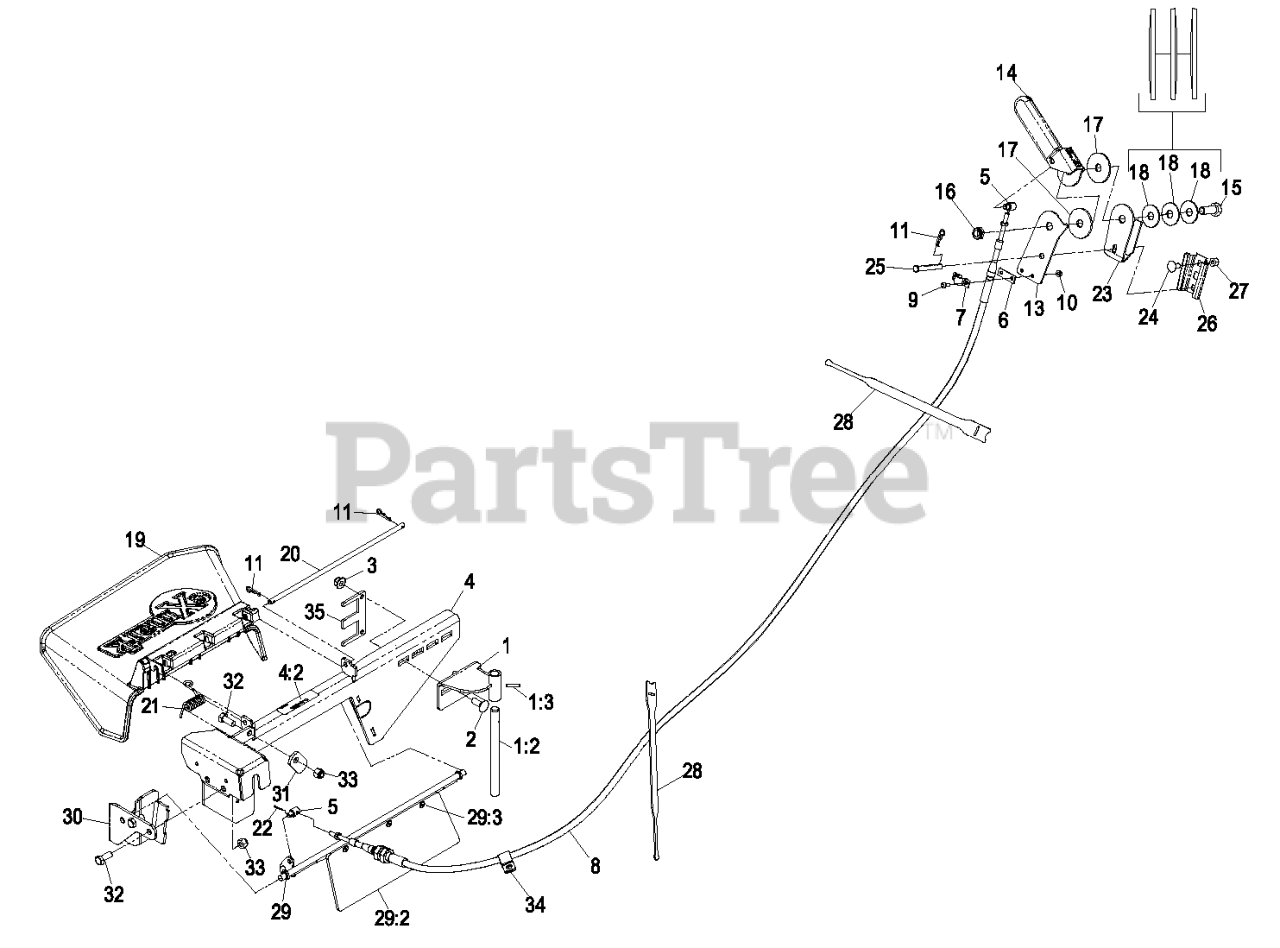

OCDWB01 - Exmark Walk-Behind Operator Discharge Control (SN: 920000 - 999999) (2011) > Parts Diagrams (2) > OCDWB01 Assembly

  • Title
116-1504

1

Asm, Mount

Part# 116-1504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.65

1-353050

1:2

Pin, Mounting

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.96

1-806323

1:3

Rollpin

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

3231-2

2

Bolt, Carriage 3/8-16 X 1

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.50

104-8301

3

Nut, Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

116-2358

4

Gate, Link Frame

Part# 116-2358

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $165.58

98-5954

4:2

Decal, Danger

Part# 98-5954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.02

116-1543

5

Pivot, Control Cable

Part# 116-1543

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.24

116-1544

6

Shim, Control Cable

Part# 116-1544

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.15

116-1545

7

Clamp, Control Cable

Part# 116-1545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

116-4005

8

Cable, Control

Part# 116-4005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.62

3250-12

9

Screw, Pph #10-24 X 1/2

Part# 3250-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.72

3296-12

10

Nut, Nyloc #10-24 Thin

Part# 3296-12 (Superseded to 3296-12)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-806003

11

Hairpin, Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

116-2942

13

Bracket, Control Mount

Part# 116-2942

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.11

116-2361

14

Control Handle Asm

Part# 116-2361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.47

325-5

15

Screw, Hh 1/2-13 X 1 1/4

Part# 325-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

3296-45

16

Nut, Nyloc 1/2-13 Thin

Part# 3296-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

103-5009

17

Disc, Friction

Part# 103-5009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.26

103-5018

18

Washer, Spring Disc

Part# 103-5018

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.24

109-5151

19

Deflector, Discharge

Part# 109-5151

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.65

116-2229

20

Pin, Chute

Part# 116-2229

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.78

116-0962

21

Spring, Torsion

Part# 116-0962

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

3272-1

22

Pin, Cotter 1/16 X 1/2

Part# 3272-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.26

116-2941

23

Bracket, Handle Mount

Part# 116-2941

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.98

3230-18

24

Bolt, Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

116-2223

25

Pin-Clevis

Part# 116-2223

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.65

116-2222

26

Bracket-Mounting

Part# 116-2222

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.34

3296-29

27

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

116-2469

28

Strap-Velcro Cable Tie

Part# 116-2469

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

116-1510

29

Asm, Gate

Part# 116-1510

OEM Warranty Repair Part for Exmark

Not available

116-1509

29:2

Gate

Part# 116-1509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.63

114439

29:3

Rivet, Pop

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

116-2792-01

30

Brkt, Chute Front

Part# 116-2792-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.16

1-353054

31

Latch-Catcher, Grass

Part# 1-353054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.30

323-6

32

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

3296-39

33

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-603727

34

Clip, Loom

Part# 1-603727

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.18

116-3226

35

Shim

Part# 116-3226

OEM Warranty Repair Part for Exmark

Currently unavailable
