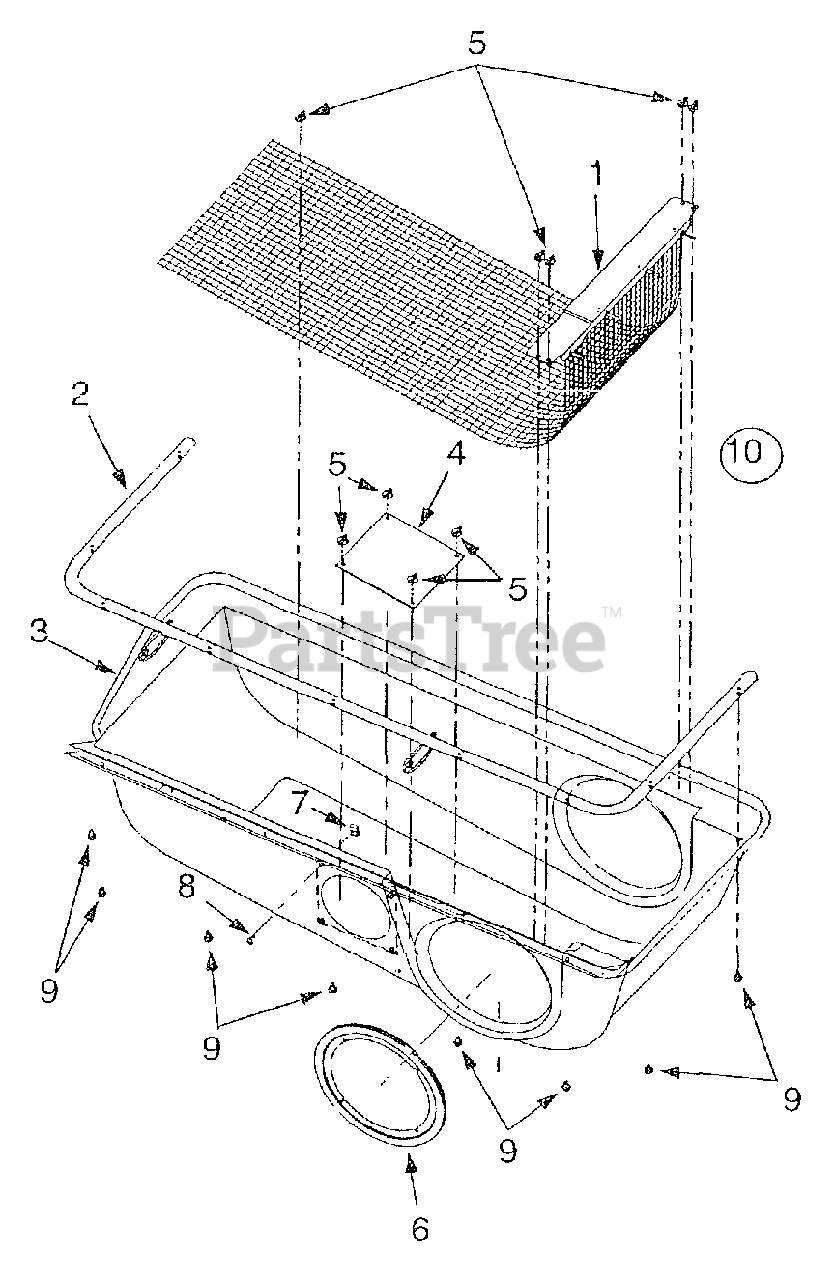

OEM-190-063 - MTD Twin Bagger Assembly (2002) Grass Catcher Cover Assembly Parts Diagram

Twin Bagger Assembly

Grass Catcher Cover Assembly Parts Diagram

  • Title
1

MTD Part# 16847A

Screen Assembly

Variations

MTD Part# 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

2

MTD Part# 16596

Hinge Bracket Assembly

Variations

MTD Part# 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$83.84

0

Usually ships same day

$

$

3

MTD Part# 731-0821A

Grass Catcher Cover

Note: Model 063 only

Usually ships same day

Not available

$

$

MTD Part# 731-1417

Grass Catcher Cover

Note: Model 103 only

Usually ships same day

Not available

$

$

4

MTD Part# 731-0824A

Plastic Plate
Usually ships same day

Not available

$

$

5

MTD Part# 726-0258

Zip Twist Fastener
Usually ships in 5 to 10 days

$

$2.96

0

6

MTD Part# 723-0412

Tube Seal

Note: Model 063 only

Usually ships in 1 day

$

$27.00

0

MTD Part# 723-0413

Tube Seal

Note: Model 103 only

Usually ships in 1 day

$

$23.04

0

7

MTD Part# 712-0147

U-Type Speed Nut
Usually ships in 5 to 10 days

$

$4.81

0

8

MTD Part# 710-0351

Screw, #10-16 x 0.5"

Note: Model 063 only

Usually ships in 1 day

$

$3.11

0

MTD Part# 710-0473

Screw, #10-24 x 0.5"

Note: Model 103 only

Usually ships in 1 day

$

$3.09

0

9

MTD Part# 710-0599

Hex Screw, 1/4-20 x 0.5"

Note: Model 063 only

Usually ships in 1 day

$

$3.06

0

MTD Part# 710-0896

Hex Screw, 1/4-14 x 0.625"

Note: Model 103 only

Usually ships in 1 day

$

$3.06

0

10

MTD Part# 16594A

Grass Catcher Cover Assembly

Note: Model 063 only

Usually ships same day

Not available

$

$

MTD Part# 631-0007

Grass Catcher Cover Assembly

Note: Model 103 only

Usually ships same day

Not available

$

$
