OEM-190-110 - Troy-Bilt Grass Bag Assembly General Assembly Parts Diagram

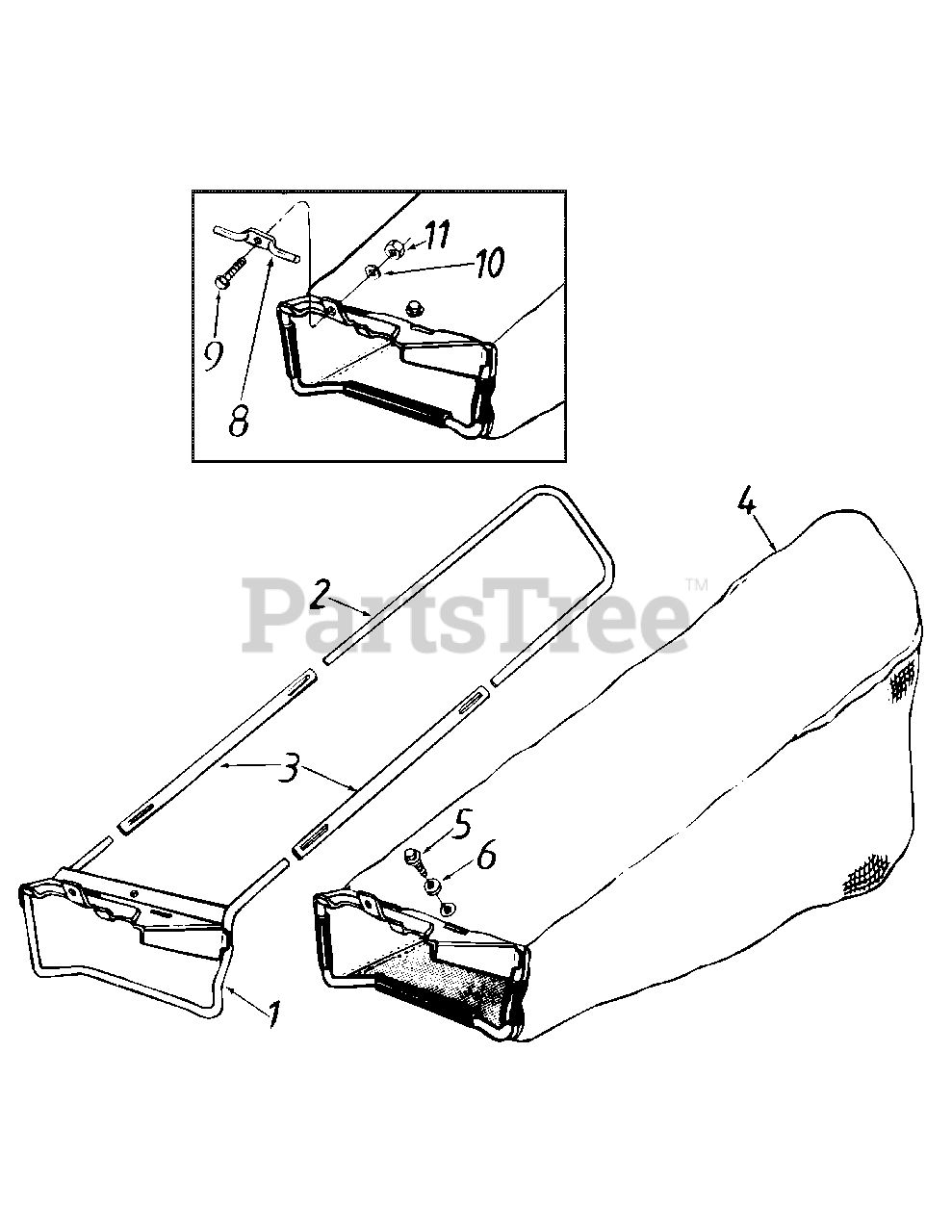

Grass Bag Assembly

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 16839B

Frame - Lower Ass’y
(Superseded to 16839C-0637)

Variations

Troy-Bilt 16839B-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 747-0575

Frame - Upper
(Superseded to 747-0575-0637)

Variations

Troy-Bilt 747-0575-0637

FRAME-UPPER - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 749-0774

Tube Support
(Superseded to 749-0774-0637)

Variations

Troy-Bilt 749-0774-0637

TUBE-CATCHER SUPPO - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 764-0271

Grass Bag
(Superseded to 964-0271)

$115.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 10

0

8

Troy-Bilt 747-0870

Grass Bag Hook

$9.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

11

Troy-Bilt 712-3006

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 20+

0
