OEM-190-116 - MTD Mulch Kit (2003) General Assembly Parts Diagram

Mulch Kit

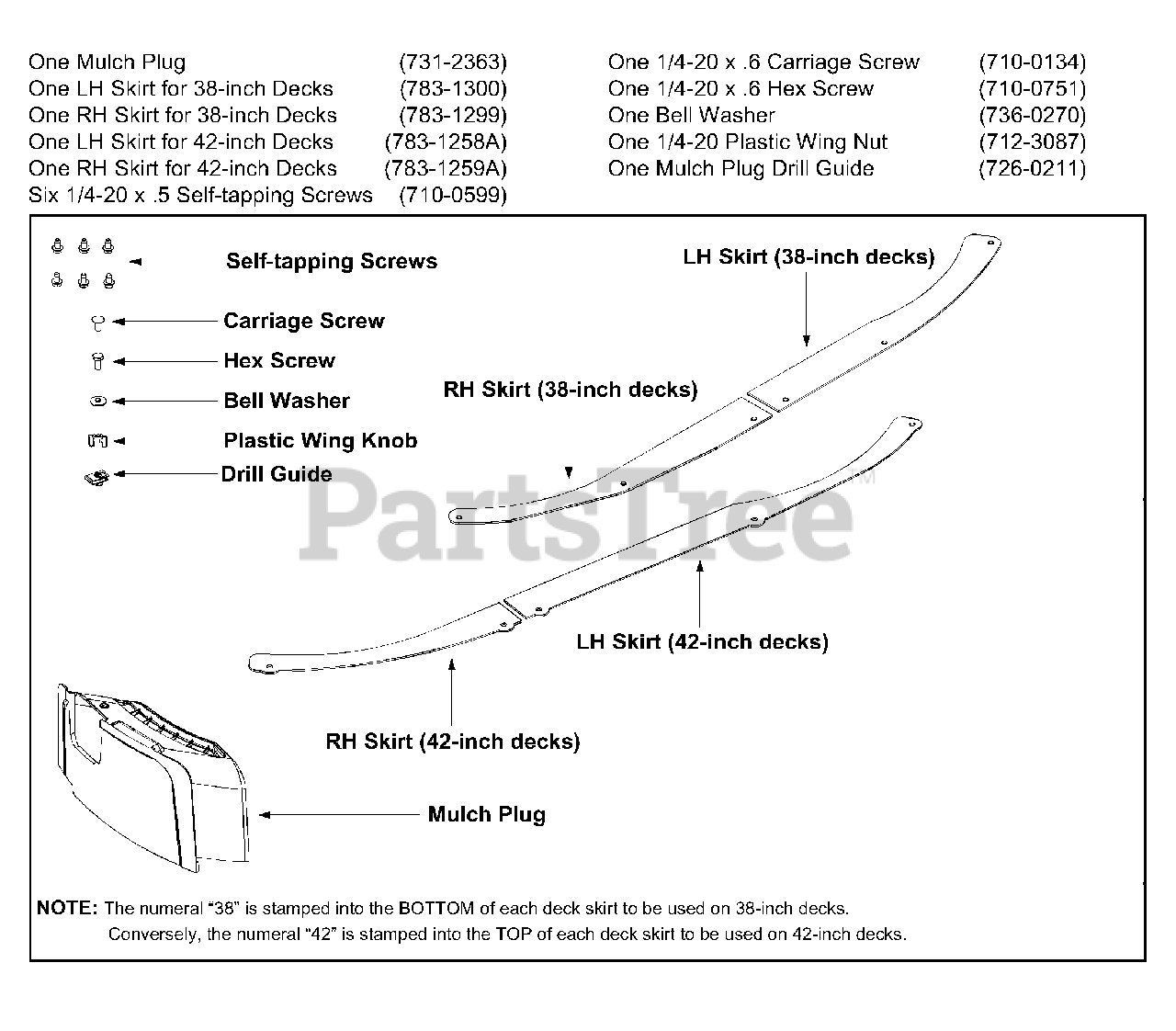

General Assembly Parts Diagram

  • Title

731-2363

MTD 731-2363

One Mulch Plug

$27.99

$

In Stock, Qty 20+

0

783-1300

MTD 783-1300

One LH Skirt for 38-inch Decks
(Superseded to 783-1300-0637)

Variations

MTD 783-1300-0637

SKIRT-38"DECK LH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

783-1299

MTD 783-1299

One RH Skirt for 38-inch Decks
(Superseded to 783-1299-0637)

Variations

MTD 783-1299-0637

SKIRT-38"DECK RH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

783-1258A

MTD 783-1258A

One LH Skirt for 42-inch Decks
(Superseded to 783-1258A-0637)

Variations

MTD 783-1258A-0637

Skirt, 42" Deck LH - POWDER BLACK (0637)

$41.99

$

In Stock, only 2 left!

0

$41.99

$

In Stock, only 2 left!

0

783-1259A

MTD 783-1259A

One RH Skirt for 42-inch Decks
(Superseded to 783-1259A-0637)

Variations

MTD 783-1259A-0637

Skirt, 42" Deck RH - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

710-0599

MTD 710-0599

Six 1/4-20 x .5 Self-tapping Screws

$3.99

$

In Stock, Qty 20+

0

710-0134

MTD 710-0134

One 1/4-20 x .6 Carriage Screw

$3.99

$

In Stock, Qty 20+

0

710-0751

MTD 710-0751

One 1/4-20 x .6 Hex Screw

$3.99

$

In Stock, Qty 20+

0

736-0270

MTD 736-0270

One Bell Washer

$3.99

$

In Stock, Qty 12

0

712-3087

MTD 712-3087

One 1/4-20 Plastic Wing Nut

$3.99

$

In Stock, Qty 20+

0

726-0211

MTD 726-0211

One Mulch Plug Drill Guide

$3.99

$

Usually ships in 3-6 days

0
