OEM-190-825 - MTD 30" Hydraulic Tiller Attachment (2003) Hydraulic Valve And Tiller Housing Assembly Parts Diagram

30" Hydraulic Tiller Attachment

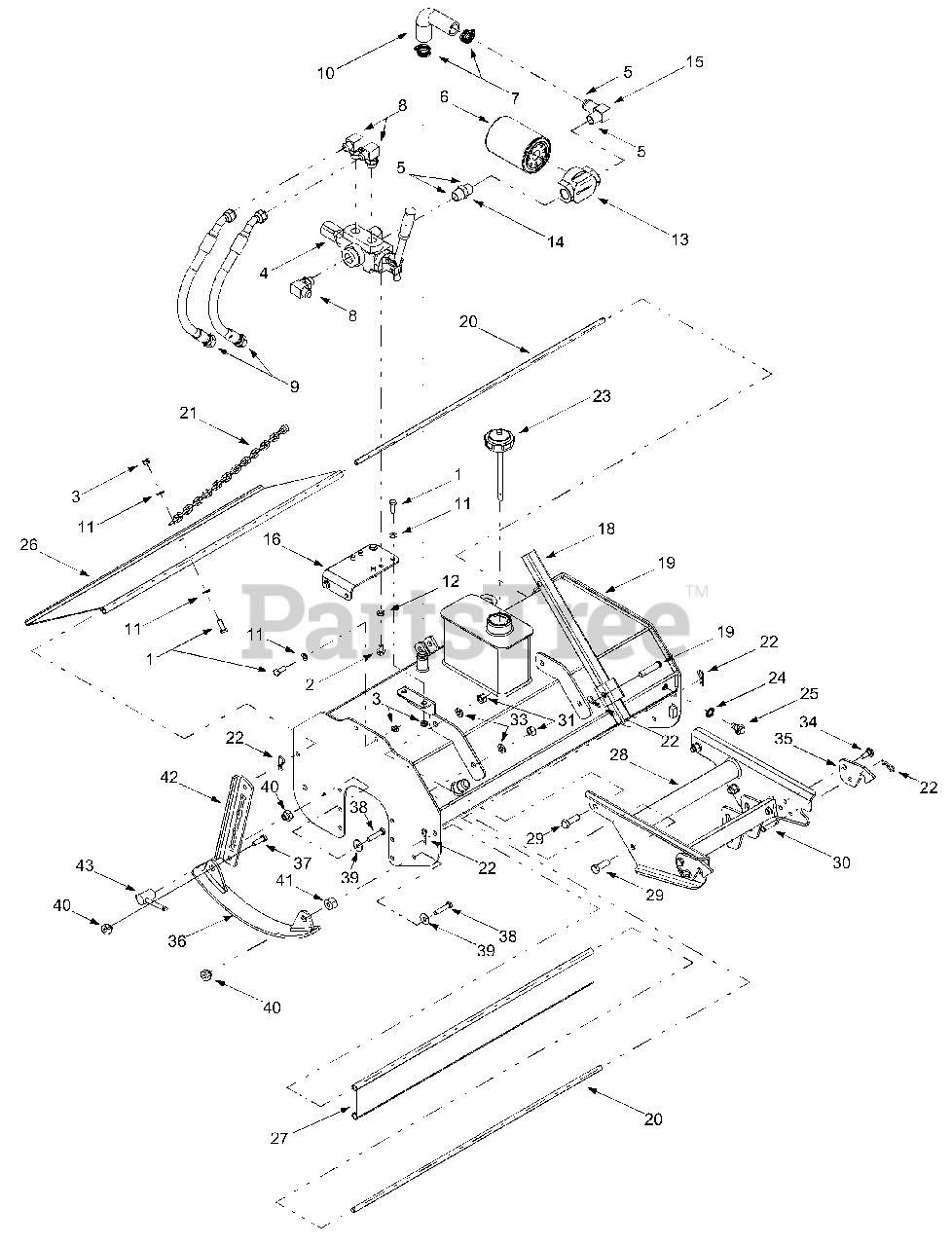

Hydraulic Valve And Tiller Housing Assembly Parts Diagram

  • Title

1

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0870

Shoulder Screw, 3/8-16 x .625

$5.99

$

In Stock, only 2 left!

0

3

MTD 712-3000

Hex Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

MTD 718-0673

Energy Hydraulic Valve
(Superseded to 918-0673)

$

$

Not available

5

Locktite(R) Hydraulic Sealant

Note: Purchase Locally

$

$

Not available

6

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$39.99

$

In Stock, only 4 left!

0

7

MTD 726-0132

Adjustable Hose Clamp

$14.99

$

Usually ships in 3-6 days

0

8

MTD 727-0220

90 degree Hydraulic Adapter, 7/8

$

$

Not available

9

MTD 727-0520

Hydraulic Hose, 7/8-14

$

$

Not available

10

MTD 727-0625

90 degree Hydraulic Hose, 1.37 x 1.0

$

$

Not available

11

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.49

$

In Stock, Qty 17

0

12

MTD 736-0217

Lock Washer, 3/8

$3.99

$

In Stock, Qty 13

0

13

MTD 737-0316

Filter Housing
(Superseded to 753-06643)

$90.99

$

Usually ships in 3-6 days

0

14

MTD 737-0338

Hydraulic Adapter, 3/4 x 3/4

$

$

Not available

15

MTD 737-0346

90 degree Hydraulic Adapter, 1.0 x 1.0

$

$

Not available

16

MTD 786-0265

Valve Mounting Bracket
(Superseded to 786-0265-0637)

Variations

MTD 786-0265-0637

BRACKET-VALVE MTG - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 686-0155

Tiller Stand
(Superseded to 686-0155-0637)

Variations

MTD 686-0155-0637

STAND-TILLER - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 711-0510

Clevis Pin, .50 x 2.0

$11.99

$

Usually ships in 3-6 days

0

19

MTD 686-0143

Frame Assembly

Variations

MTD 686-0143-0637

FRAME ASM-30"TILLER - POWDER BLACK (0637)

$

$

Not available

MTD 686-0143-0716

FRAME ASM-30"TILLER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 711-1380

Shield Pivot Rod

$

$

Not available

21

MTD 713-0490

Chain, 24.37"

$

$

Not available

22

MTD 714-0149B

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

23

MTD 720-0315

Vented Tank Cap

$

$

Not available

24

MTD 721-0223

Stat-O-Seal O Ring
(Superseded to 921-0223)

$

$

Not available

25

MTD 738-0940

Drain Plug

$7.49

$

Usually ships in 3-6 days

0

26

MTD 786-0252

Rear Tine Shield, 30"

Variations

MTD 786-0252-0637

SHIELD-REAR TINE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0252-0716

SHIELD-REAR TINE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 786-0274

Front Tine Shield, 30"

Variations

MTD 786-0274-0637

SHIELD-FRONT TINE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0274-0716

SHIELD-FRONT TINE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 686-0142

Hitch Link Assembly

Variations

MTD 686-0142-0637

LINK ASM-SLEV HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 686-0142-0716

LINK ASM-SLEV HITCH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

MTD 710-3181

Hex Cap Screw, 1/2-13 x 1.5

$6.49

$

In Stock, only 1 left!

0

30

MTD 711-0415

Clevis Pin, 3/8 x 1.75

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0206

Hex Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-0380

Shoulder Screw, .50 x .27, 3/8-16

$7.49

$

In Stock, Qty 18

0

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

Note: not shown

$4.99

$

In Stock, Qty 20+

0

35

MTD 786-0281

Hitch Latch
(Superseded to 786-0281-0637)

Variations

MTD 786-0281-0637

LATCH-SLEVE HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 686-0154

Skid Bracket Assembly
(Superseded to 686-0154-0637)

Variations

MTD 686-0154-0637

SHOE ASM-HGT/SKID - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 710-1039

Hex Cap Screw, 3/8-24 x 1.0

$4.49

$

In Stock, Qty 11

0

38

MTD 710-1810

Hex Cap Screw, 3/8-24 x 1.75

$24.99

$

Usually ships in 3-6 days

0

39

MTD 736-0452

Bell Washer, .396 x 1.14 x .095

$4.49

$

In Stock, Qty 16

0

40

MTD 738-1144

Shoulder Nut, 3/8-24

$13.99

$

Usually ships in 3-6 days

0

41

MTD 750-0706

Spacer, 1.0 x .380 x .64
(Superseded to 950-0706)

$

$

Not available

42

MTD 786-0302

Skid Adjuster Bracket
(Superseded to 786-0302-0637)

Variations

MTD 786-0302-0637

BRACKET-HGT ADJUST - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

43

MTD 786-0308

Adjuster Crank

$

$

Not available
