30" Hydraulic Tiller Attachment

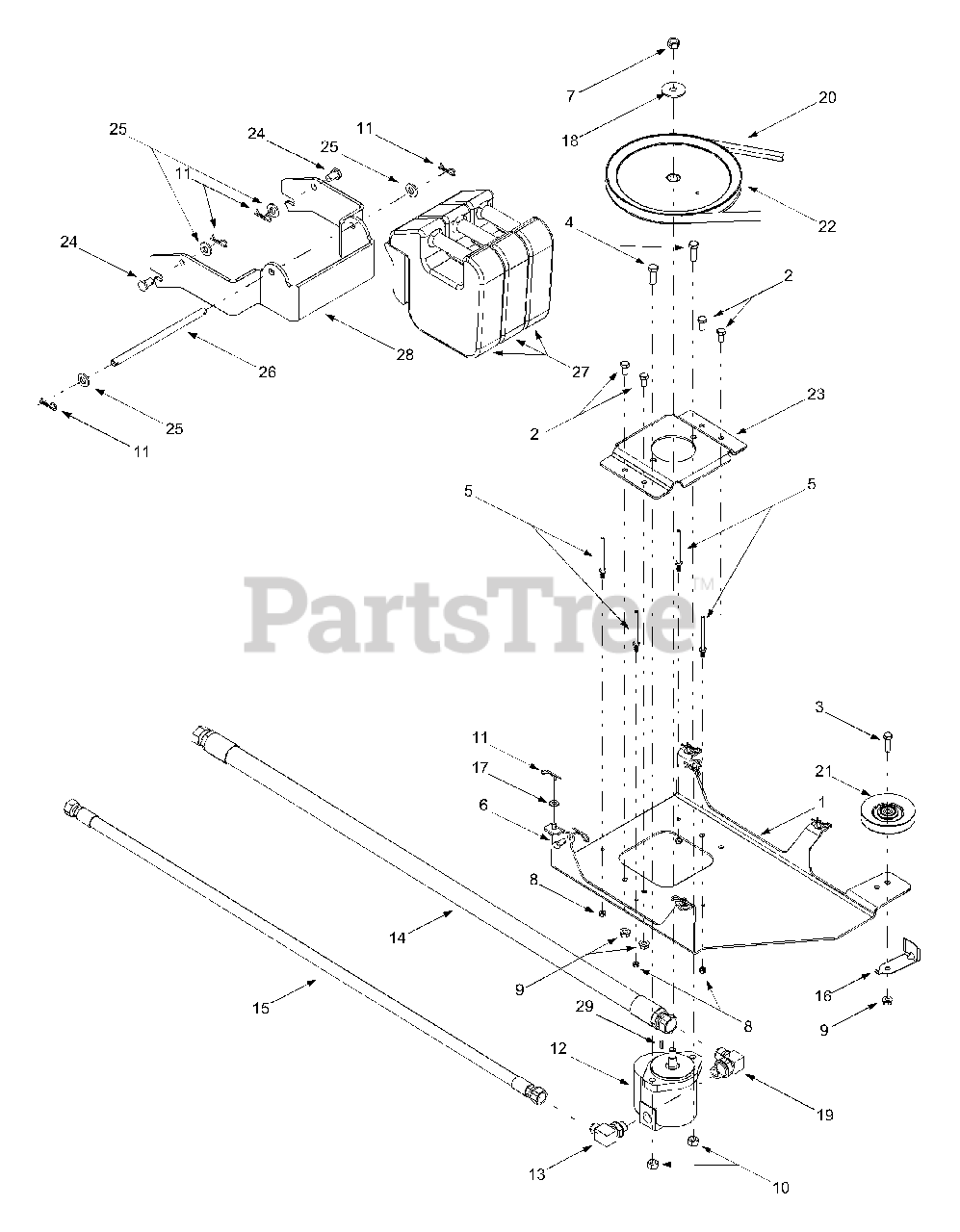

Hydraulic Pump And Undercarriage Assembly Parts Diagram

  • Title

1

Troy-Bilt 683-0309

Hydraulic Pump Bracket Assembly
(Superseded to 683-0309-0637)

Variations

Troy-Bilt 683-0309-0637

BRACKET-HYD PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 9

0

3

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3029

Hex Cap Screw, 7/16-20

$4.99

$

In Stock, Qty 10

0

5

Troy-Bilt 711-1000

Belt Keeper Pin
(Superseded to 911-1000)

$11.99

$

In Stock, Qty 10

0

6

Troy-Bilt 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-0239

Hex Lock Nut, 1/2-20

$6.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 712-0431

Hex Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3067

Hex Lock Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-0145

Click Pin, .092 x 1.64

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 718-0545

Eaton Hydraulic Pump (Includes Ref. 29)

$

$

Not available

13

Troy-Bilt 727-0220

90 degree Hydraulic Adapter, 7/8

$

$

Not available

14

Troy-Bilt 727-0628

Hydraulic Hose, 1.0625-12 x 54

$

$

Not available

15

Troy-Bilt 727-0629

Hydraulic Hose, .875-14 x 49

$

$

Not available

16

Troy-Bilt 732-0990

Belt Guard

$8.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 736-0275

Flat Washer, .344 x .688

$7.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-3027

Flat Washer, .531 x 1.75

$

$

Not available

19

Troy-Bilt 737-0309

90 degree Hydraulic Adapter

$

$

Not available

20

Troy-Bilt 754-0341

V-belt
(Superseded to 954-0341)

Note: (For Manual PTO Tractors)

$55.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 754-0473

V-belt
(Superseded to 954-0473)

Note: (For Manual PTO Tractors equipped with a 46-inch deck)

$

$

Not available

20

MTD 754-0490

V-belt

Note: (For Electric PTO Tractors)

$

$

Not available

21

Troy-Bilt 756-0487

Idler Pulley, 5/8 x 4.0

$51.99

$

In Stock, Qty 8

0

22

Troy-Bilt 756-1178

Drive Pulley, 10.0

$

$

Not available

23

MTD 786-0283

Pump Mounting Bracket

$

$

Not available

24

Troy-Bilt 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$17.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-3019

Flat Washer, .531 x 1.062

$6.49

$

In Stock, Qty 8

0

26

Troy-Bilt 747-1186

Weight Guard Rod

$

$

Not available

27

Troy-Bilt 759-3389

45 lb. Suitcase Weight
(Superseded to 490-900-M059)

$92.99

$

Usually ships in 3-6 days

0

28

MTD 783-0870

Weight Bracket

Variations

Troy-Bilt 783-0870-0637

WEIGHT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

29

Troy-Bilt 714-0237

Square Key,1552 x .1552 x.6875

$

$

Not available
