OEM-190-833 - MTD 46" Snow Blade (2004) General Assembly Parts Diagram

46" Snow Blade

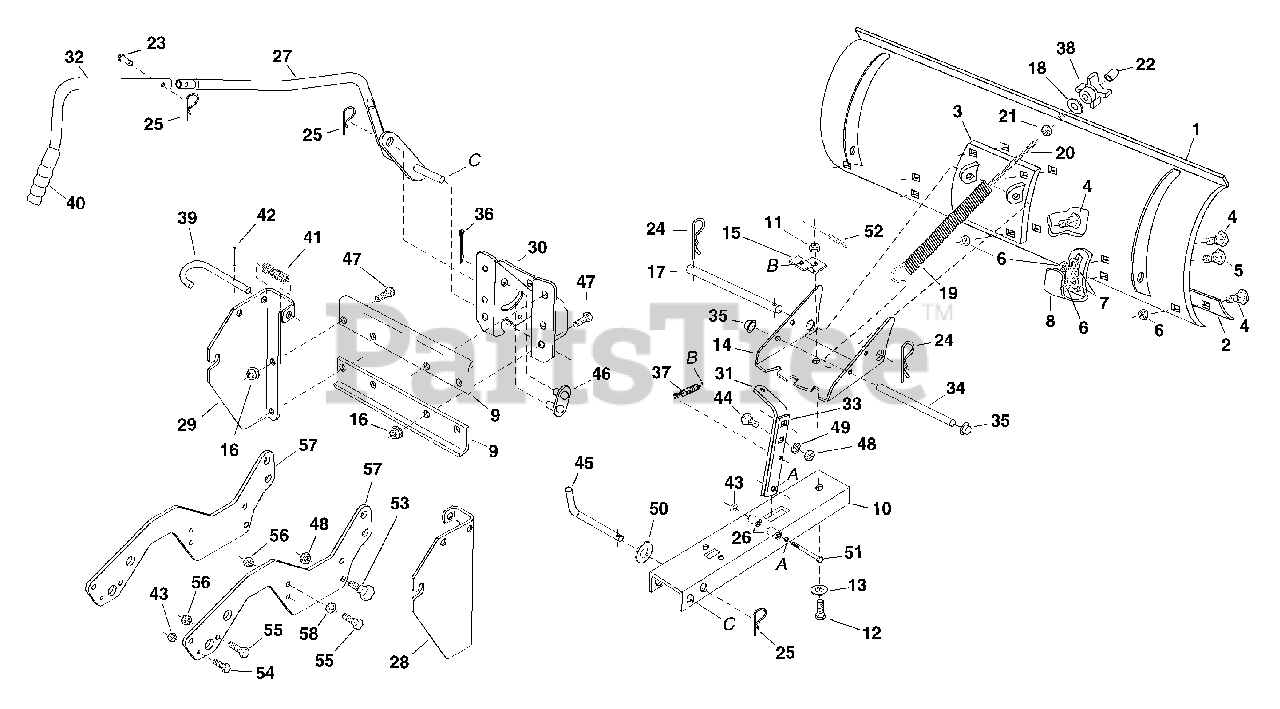

General Assembly Parts Diagram

  • Title
1

MTD Part# AF-63821

Blade- 46"
Usually ships in 5 to 10 days

$

$157.19

0

2

MTD Part# AF-24524

Wear Plate - 46"
Usually ships in 1 day

$

$37.66

0

3

MTD Part# AF-62980

Reinforcement Plate Assembly
Usually ships in 5 to 10 days

$

$107.66

0

4

MTD Part# AF-43080

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 710-0451)
Usually ships in 1 day

$

$2.84

0

5

Part#

Bolt, Carriage 5/16-18 x 1

Note: Purchase locally

Usually ships same day

Not available

$

$

6

MTD Part# AF-43064

Hex Lock Nut 5/16-18 Thread
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

7

MTD Part# AF-43081

Washer, 5/16"
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

8

MTD Part# AF-24690

Skid Shoe
Usually ships in 1 day

$

$20.68

0

9

MTD Part# AF-24520

Bracket, Angle Support
Usually ships in 5 to 10 days

$

$23.84

0

10

MTD Part# AF-24347

Push Channel
Usually ships in 5 to 10 days

$

$51.62

0

11

MTD Part# AF-43262

Hex Lock Nut6, 1/2=13 Thread
(Superseded to 912-0384)
Usually ships in 1 day

$

$4.87

0

12

MTD Part# AF-23131

Bolt, Special Pivot
Usually ships in 5 to 10 days

$

$11.52

0

13

Part#

Washer, Flat 1/2"

Note: Purchase locally

Usually ships same day

Not available

$

$

14

MTD Part# AF-23958

Plate, Pivot 7 Ga
Usually ships in 1 day

$

$81.31

0

15

MTD Part# AF-23130

Bracket, Spring Mt.
Usually ships in 5 to 10 days

$

$11.92

0

16

MTD Part# AF-47572

Flanged Lock Nut, 3/8-16 Thread
Usually ships in 5 to 10 days

$

$8.53

0

17

MTD Part# AF-23122

Shaft, Pivot
Usually ships in 5 to 10 days

$

$41.68

0

18

MTD Part# AF-43070

Washer, 3/8" STD
Usually ships in 5 to 10 days

$

$5.65

0

19

MTD Part# AF-9466R

Spring, Blade Adjust
Usually ships same day

Not available

$

$

20

MTD Part# AF-44071

Hex Bolt, 3/8-16 x 3 -1/2"
Usually ships in 5 to 10 days

$

$5.60

0

21

MTD Part# AF-43015

Hex Nut, 3/8-16 Thread
(Superseded to 712-0798)
Usually ships in 1 day

$

$3.06

0

22

MTD Part# AF-44074

Plastic Cap
Usually ships in 5 to 10 days

$

$12.05

0

23

MTD Part# AF-41-42

Pin, Clevis 1/4" x 1-1/2"
Usually ships in 5 to 10 days

$

$8.87

0

24

MTD Part# AF-43343

Pin Hair Cotter #4 (1/8")
Usually ships in 5 to 10 days

$

$8.95

0

25

MTD Part# AF-43055

Pin Hair Cotter #3 (3/32")
(Superseded to AF-47134)
Usually ships in 1 day

$

$4.81

0

26

MTD Part# AF-46053

Spacer, .28 ID x 1"
Usually ships in 5 to 10 days

$

$8.95

0

27

MTD Part# AF-63283

Lift Handle Assembly, Lower
Usually ships in 5 to 10 days

$

$195.77

0

28

MTD Part# AF-24518

Hitch Bracket, RH
Usually ships in 5 to 10 days

$

$36.50

0

29

MTD Part# AF-24519

Hitch Bracket, LH
Usually ships in 5 to 10 days

$

$36.50

0

30

MTD Part# AF-24023

Pivot Support Bracket

Variations

MTD Part# AF-24023-0637

Pivot Support Bracket - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$122.57

0

Usually ships same day

$

$

31

MTD Part# AF-23129

Angle Lock Bar (Long)
Usually ships in 5 to 10 days

$

$16.66

0

32

MTD Part# AF-46553

Lift Handle Upper
Usually ships in 5 to 10 days

$

$83.74

0

33

MTD Part# AF-23151

Angle Lock Bar (Short)
Usually ships in 5 to 10 days

$

$30.21

0

34

MTD Part# AF-23856

Spring Mount Rod
Usually ships in 5 to 10 days

$

$9.18

0

35

MTD Part# AF-44917

Palnut 3/8
(Superseded to 926-0100)
Usually ships same day

Not available

$

$

36

MTD Part# AF-43010

Cotter Pin 1/8" x 1
(Superseded to 914-0470)
Usually ships in 1 day

$

$3.09

0

37

MTD Part# AF-43348

Angle Lock Spring
Usually ships in 5 to 10 days

$

$25.76

0

Usually ships in 5 to 10 days

$

$25.61

0

39

MTD Part# AF-47553

Pin, Attachment
Usually ships in 5 to 10 days

$

$12.61

0

40

MTD Part# AF-43362

Handle, Grip
(Superseded to 720-0204)
Usually ships in 5 to 10 days

$

$9.61

0

41

MTD Part# 732-3127

Spring, Compression
(Superseded to 932-3127)
Usually ships in 1 day

$

$3.07

0

42

MTD Part# AF-43659

Pin, Spring 3/16" x 1
Usually ships in 5 to 10 days

$

$5.44

0

43

MTD Part# AF-43013

Hex Lock Nut 1/4-20 Thread
(Superseded to 912-0291)
Usually ships same day

Not available

$

$

44

Part#

Carriage Bolt, 3/8-16 x 1"

Note: Purchase locally

Usually ships same day

Not available

$

$

45

MTD Part# AF-46065

Channel Pivot Pin
Usually ships in 5 to 10 days

$

$32.26

0

46

MTD Part# AF-63034

Lift Link Assembly
Usually ships in 1 day

$

$55.78

0

47

MTD Part# AF-43001

Hex Bolt, 3/8-16 x 3 -1"
(Superseded to 710-0514)
Usually ships in 1 day

$

$3.01

0

48

MTD Part# AF-43082

Hex Lock Nut, 3/8"-16 Thread
(Superseded to 712-0375)

Note: Alt # 712-0431

Usually ships in 1 day

$

$3.19

0

49

MTD Part# AF-43003

Lock Washer 3/8"
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

Usually ships in 5 to 10 days

$

$7.71

0

51

MTD Part# AF-46071

Hex Bolt, 1/4-20 x 3 1/4" LG. GR 5
Usually ships same day

Not available

$

$

52

MTD Part# AF-43349

1/4" x 1" Spring Pin
(Superseded to 715-0108)
Usually ships in 1 day

$

$3.52

0

53

MTD Part# 738-0143

Shoulder Bolt 3/8-16 x 1/2"
Usually ships in 1 day

$

$3.12

0

54

Part#

Hex Bolt 1/4-20 x 1"

Note: Purchase locally

Usually ships same day

Not available

$

$

55

Part#

Hex Bolt 5/16-18 x 1"

Note: Purchase locally

Usually ships same day

Not available

$

$

56

Part#

Hex Nut, 5/16-18 Nylock

Note: Purchase locally

Usually ships same day

Not available

$

$

57

MTD Part# AF-24932

Frame Bracket
Usually ships in 5 to 10 days

$

$32.63

0

58

Part#

Lock Washer 5/16"

Note: Purchase locally

Usually ships same day

Not available

$

$
