OEM-190-833 - Toro 46" Front Blade (2010)

46" Front Blade

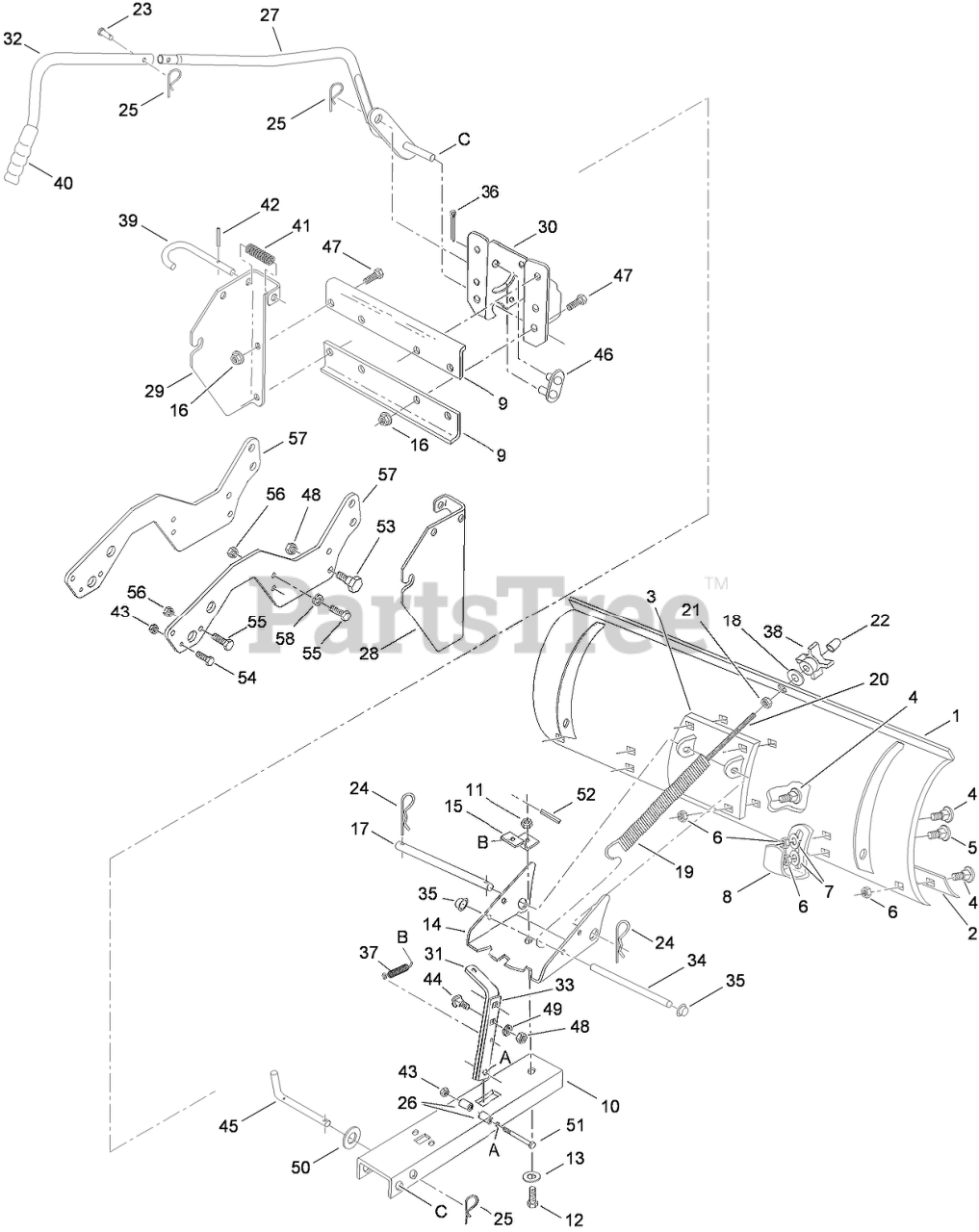

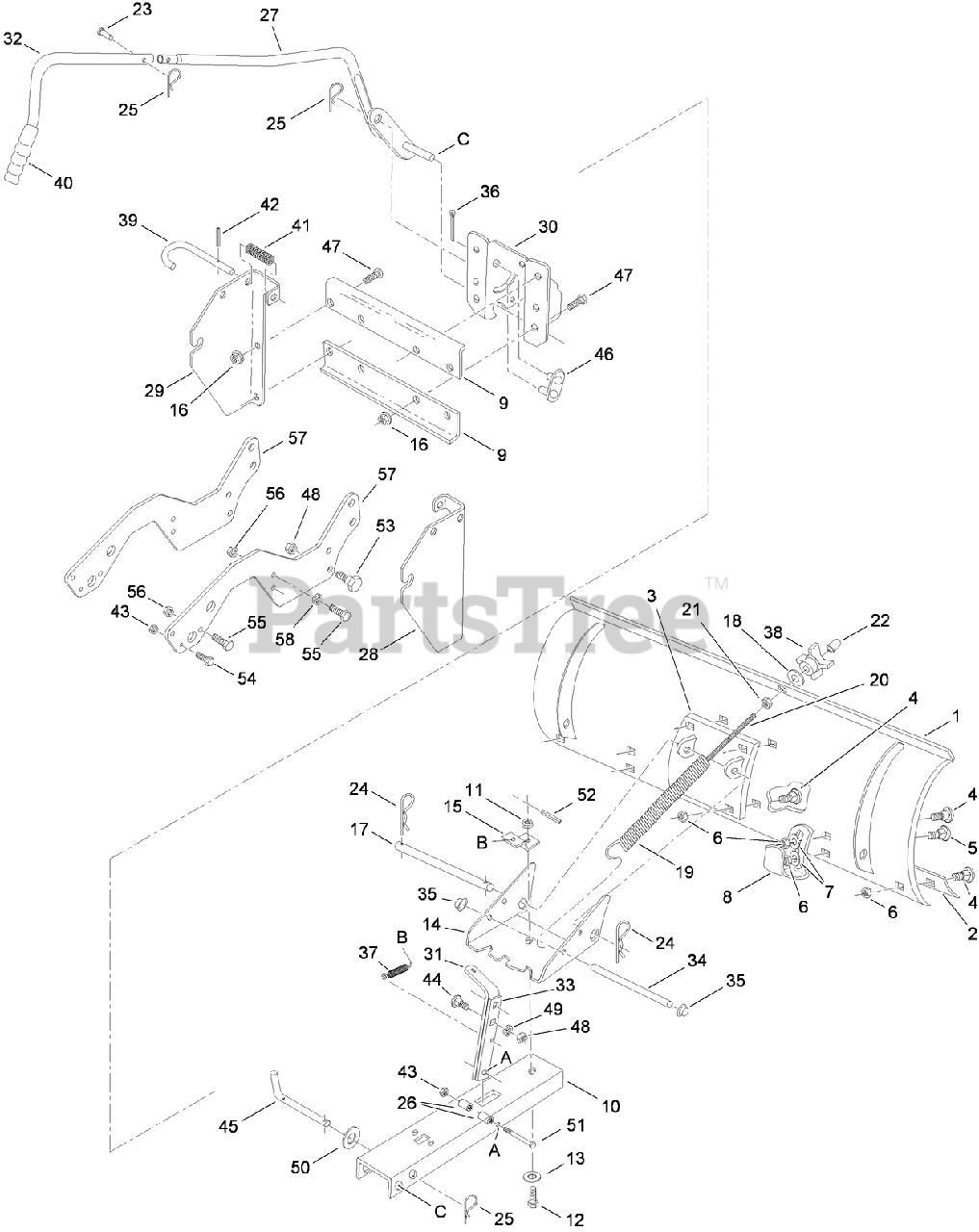

OEM-190-833 - Toro 46" Front Blade (2010) > Parts Diagrams (1) > 46 INCH FRONT BLADE ASSEMBLY

  • Title
112-1240

1

BLADE

Part# 112-1240

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $172.77

112-1218

2

PLATE-WEAR

Part# 112-1218

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.69

112-1237

3

REINFORCEMENT PLATE ASM

Part# 112-1237

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $137.06

112-1075

4

BOLT-CARR

Part# 112-1075 (Superseded to 112-0426)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.67

112-1290

5

BOLT-CARR

Part# 112-1290 (Superseded to 3230-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.08

112-1102

6

NUT-LOCK

Part# 112-1102

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.69

112-1224

7

WASHER

Part# 112-1224

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.80

112-1219

8

SKID-SHOE

Part# 112-1219

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.65

112-1217

9

BRACKET-SUPPORT, ANGLE

Part# 112-1217

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.01

112-1214

10

CHANNEL-PUSH

Part# 112-1214

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $61.33

112-1109

11

NUT-LOCK

Part# 112-1109

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.71

112-1209

12

BOLT-PIVOT, SPECIAL

Part# 112-1209

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.85

112-1291

13

WASHER-FLAT

Part# 112-1291

OEM Warranty Repair Part for Toro

Not available

112-1212

14

PLATE-PIVOT

Part# 112-1212

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $98.55

112-1208

15

BRACKET-MOUNTING, SPRING

Part# 112-1208

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.35

112-1236

16

NUT-LOCK, FLANGED

Part# 112-1236

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.72

112-1206

17

SHAFT-PIVOT

Part# 112-1206

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.97

112-1223

18

WASHER-FLAT

Part# 112-1223

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.57

112-1241

19

SPRING-ADJUST, BLADE

Part# 112-1241 (Superseded to 119-9126)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $78.81

112-0969

20

SCREW-HH

Part# 112-0969

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.31

112-1112

21

NUT-HEX

Part# 112-1112

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.69

112-1229

22

CAP-PLASTIC

Part# 112-1229

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.70

112-1220

23

PIN-CLEVIS, LIFT HANDLE

Part# 112-1220

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.36

112-1226

24

PIN-HAIR

Part# 112-1226

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.19

112-1233

25

PIN-QUICK ATTACH

Part# 112-1233

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.15

112-1230

26

SPACER

Part# 112-1230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.72

112-1239

27

LOWER LIFT HANDLE ASM

Part# 112-1239

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $224.15

112-1215

28

HITCH-BRACKET, RH

Part# 112-1215

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.28

112-1216

29

HITCH-BRACKET, LH

Part# 112-1216

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.28

112-1213

30

BRACKET-SUPPORT, PIVOT

Part# 112-1213

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.06

112-1207

31

BAR-LOCK, ANGLE (LONG)

Part# 112-1207

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.72

112-1232

32

HANDLE-LIFT, UPPER

Part# 112-1232

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $97.61

112-1210

33

BAR-LOCK, ANGLE (SHORT)

Part# 112-1210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.39

112-1211

34

ROD-MOUNT, SPRING

Part# 112-1211

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.93

112-1141

35

NUT-PUSH

Part# 112-1141

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.71

112-0412

36

PIN-COTTER

Part# 112-0412

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.69

112-1227

37

SPRING-LOCK, ANGLE

Part# 112-1227

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.38

112-1234

38

KNOB

Part# 112-1234

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.60

112-1235

39

PIN-ATACHMENT

Part# 112-1235

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.16

112-0994

40

GRIP-HANDLE

Part# 112-0994

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.18

112-1150

41

SPRING-COMPRESSION

Part# 112-1150

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.92

112-1228

42

PIN-SPRING

Part# 112-1228

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.36

112-0636

43

NUT-LOCK, FLANGE

Part# 112-0636

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.67

112-1292

44

BOLT-CARR

Part# 112-1292

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.83

112-1231

45

SHAFT-CHANNEL, PIVOT

Part# 112-1231

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.04

112-1238

46

LINK-LIFT

Part# 112-1238

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.57

112-1221

47

SCREW-HH

Part# 112-1221

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

112-1225

48

NUT-LOCK

Part# 112-1225

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.93

112-1222

49

WASHER-LOCK

Part# 112-1222

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.19

112-1242

50

WASHER

Part# 112-1242

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.13

112-0976

51

SCREW

Part# 112-0976

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.51

112-0861

52

PIN-SPRING

Part# 112-0861

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.82

112-1293

53

BOLT-SHOULDER

Part# 112-1293

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.20

112-1294

54

SCREW-HH

Part# 112-1294

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.83

112-1295

55

SCREW-HH

Part# 112-1295

OEM Warranty Repair Part for Toro

Currently unavailable

112-1296

56

NUT-NYLOCK

Part# 112-1296

OEM Warranty Repair Part for Toro

Currently unavailable

112-1297

57

BRACKET-FRAME

Part# 112-1297

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.45

112-1298

58

WASHER-LOCK

Part# 112-1298

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.51
