OEM-290-005 - Troy-Bilt Vac Hose Kit Vacuum Hose Kit Parts Diagram

Vac Hose Kit

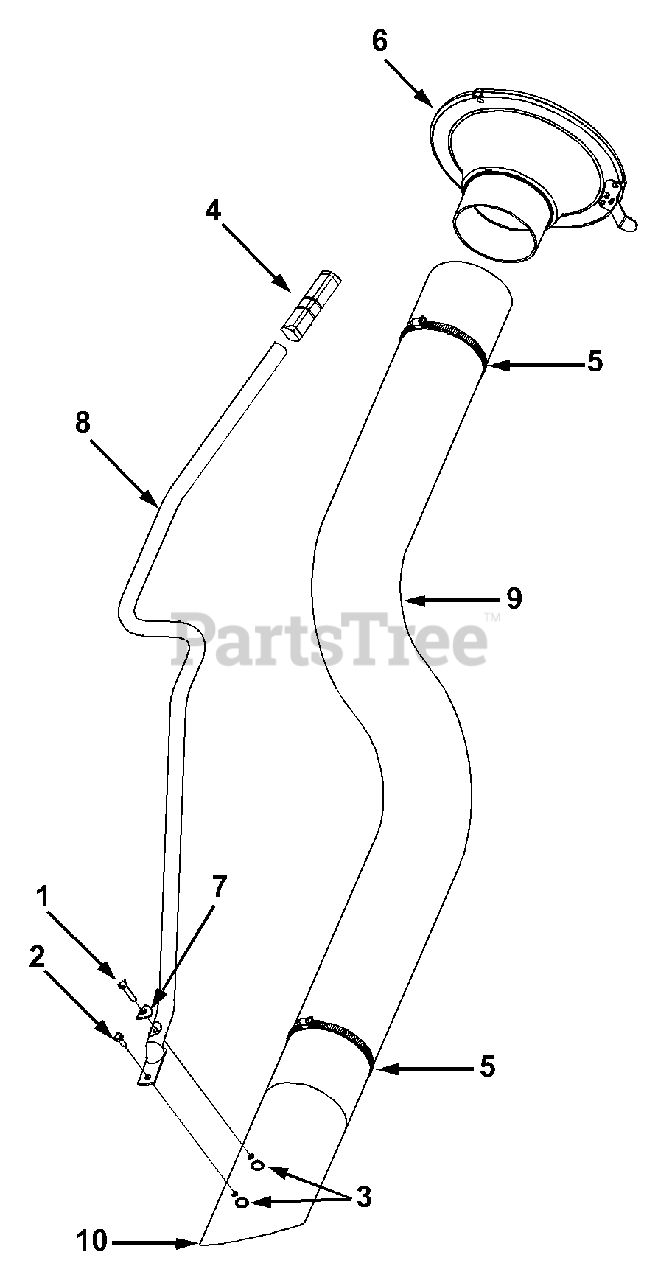

Vacuum Hose Kit Parts Diagram

  • Title

1

Troy-Bilt 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

Note: For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 12

0

2

Troy-Bilt 710-0751

Hex Bolt 1/4-20 x .62" Lg.

Note: For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 720-0281

Grip

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 726-0327

Adj. Hose Clamp 5" Dia.

$15.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 631-0031

Hose Adapter

$95.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-0451

Saddle Washer .32" I.D.

$4.99

$

In Stock, Qty 10

0

8

Troy-Bilt 749-0005

Handle
(Superseded to 749-0005-0637)

Variations

Troy-Bilt 749-0005-0637

Hose Handle - POWDER BLACK (0637)

$74.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 764-0455

Hose - 5" Dia.
(Superseded to 964-0455)

$224.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 731-1524

Nozzle Tube

$84.99

$

Usually ships in 3-6 days

0
