OH195EA-71174H - Tecumseh Engine Engine Parts List #OHH4565A Parts Diagram

Engine

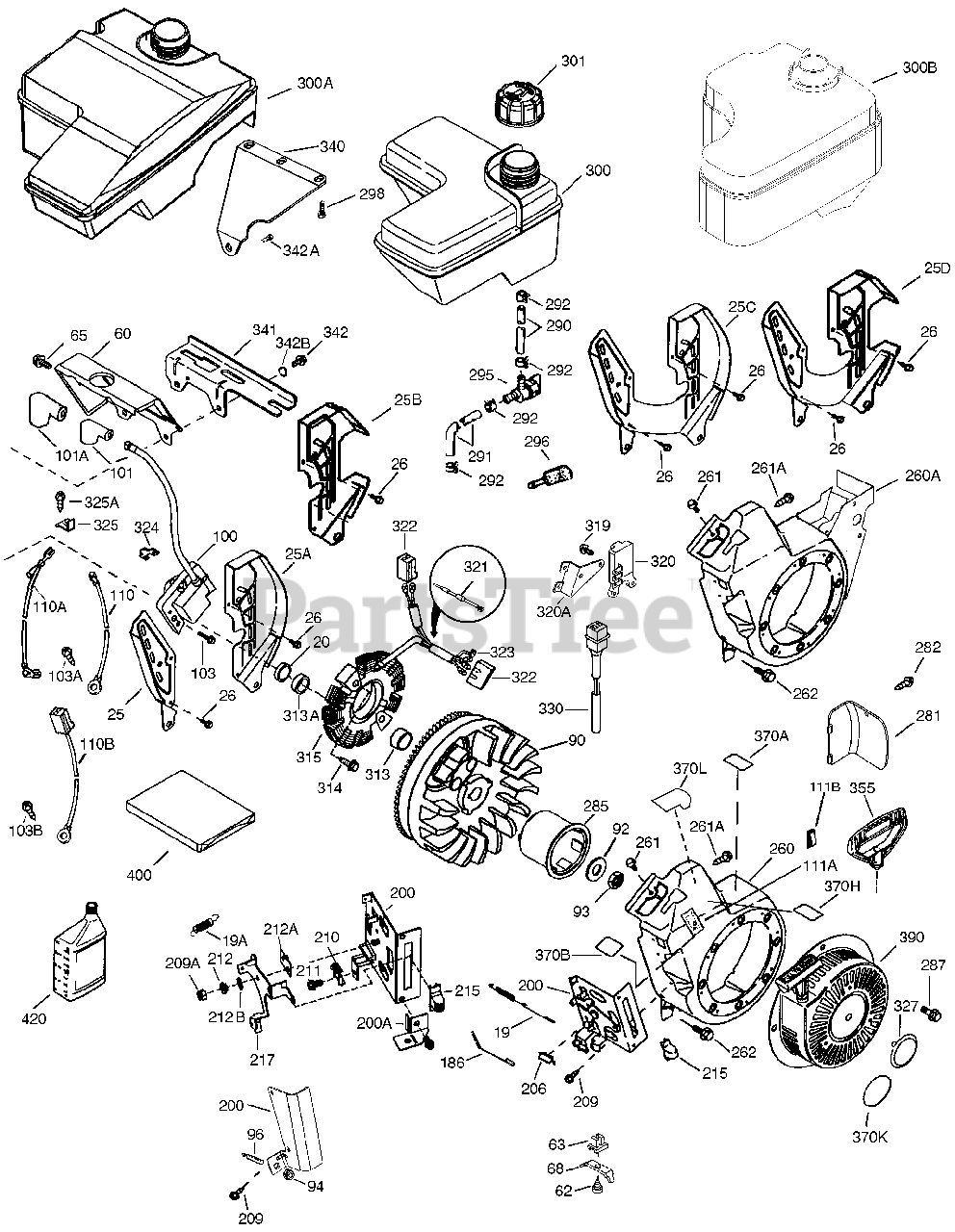

Engine Parts List #OHH4565A Parts Diagram

  • Title

19

Tecumseh 37111

Throttle Spring

$6.99

$

In Stock, Qty 5

0

20

Tecumseh 32600

Oil Seal

$

$

Not available

25C

Tecumseh 37709

Air Baffle (1 Piece)

$10.99

$

Usually ships in 3-12 days

0

60

Tecumseh 36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

65

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 16

0

90

Tecumseh 611205

Flywheel (Cast Iron)

$108.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 13

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 12

0

100

Tecumseh 34443C

Solid State Ignition
(Superseded to 34443D)

$44.99

$

In Stock, Qty 20+

0

101

Tecumseh 611289

Spark Plug Cover

$2.99

$

Usually ships in 3-12 days

0

103

Tecumseh 651007

Screw, T-15, 10-24 x 15/16"

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 37959

Wire Harness (7" Y-form with ring ter minals) for use with 611226A switch

$

$

Not available

110A

Tecumseh 36964

Ground Wire

$3.99

$

In Stock, only 1 left!

0

111B

Tecumseh 611226A

Rocker On/Off Switch

$21.99

$

In Stock, only 3 left!

0

173A

Tecumseh 28545

Breather Tube Grommet

$1.99

$

In Stock, Qty 5

0

186

Tecumseh 36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

200

Tecumseh 36736

Control Bracket (Incl. 206)

$38.99

$

Usually ships in 3-12 days

0

200A

Tecumseh 36686

Boden Wire Bracket

$9.49

$

Usually ships in 3-12 days

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, only 4 left!

0

211

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, Qty 5

0

214

Tecumseh 650583

Washer

$1.99

$

In Stock, only 2 left!

0

215

Tecumseh 36638

Control Knob

$1.99

$

In Stock, only 4 left!

0

229

Tecumseh 650852

Nut, 1/4-20

$1.99

$

In Stock, Qty 5

0

260

Tecumseh 36864

Blower Housing

$94.99

$

Usually ships in 3-12 days

0

285

Tecumseh 35985C

Starter Cup

$13.99

$

In Stock, only 1 left!

0

290

Tecumseh 37963

Fuel Line (16.0" length) Low Permeati on

$6.99

$

In Stock, only 1 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

300B

Tecumseh 37048

Fuel Tank (Incl. 292 & 301) (3.5 Quar t)

$44.99

$

In Stock, only 2 left!

0

301

Tecumseh 37845

Fuel Cap (Red Plastic)(1-1/2" I.D.)

$8.99

$

In Stock, Qty 20+

0

313

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

338

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 5

0

341

Tecumseh 36644A

Fuel Tank Bracket (Incl. 342 & 342B) Incl. 707 & 342B

$12.99

$

Usually ships in 3-12 days

0

342B

Tecumseh 651086

Washer (Rubber)

$1.99

$

In Stock, only 2 left!

0

355

Tecumseh 590701

Starter Handle (Standard)

$6.49

$

In Stock, Qty 6

0

365

Tecumseh 650767

Screw, 8-32 X 27/64``

$1.49

$

In Stock, only 3 left!

0

370

Tecumseh 35703

Speed Control Decal

$2.49

$

In Stock, only 1 left!

0

370

Tecumseh 36534A

Instruction Decal - Caution - read ow ner's manual

$3.49

$

Usually ships in 3-12 days

0

370

Tecumseh 36695

Decal - Tecumseh Logo for Top of Reco il Starter

$2.49

$

In Stock, only 1 left!

0

370

Tecumseh 37324

Decal - Choke Lever - Off/Full

$

$

Not available

370

Tecumseh 37668A

Decal - Low Oil Sentinel - Set of Lig ht & Switch Information

$2.49

$

Usually ships in 3-12 days

0

390

Tecumseh 590788

Rewind Starter Summer Pulley

$65.99

$

Usually ships in 3-12 days

0

400

Tecumseh 36720

Gasket Set (Incl. items marked *)

$10.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730225A

SAE 30 4-Cycle Engine Oil (Quart) (Su mmer)

$8.99

$

In Stock, only 2 left!

0

701

Tecumseh 651008

Screw, 1/4-20 x 31/64"

$0.99

$

In Stock, only 3 left!

0

707

Tecumseh 651085

Screw, 1/4-20 x 19/32"

$1.99

$

In Stock, only 1 left!

0

999

Tecumseh 730286

Winter Maintenance Kit includes 32 oz . - SAE5W30 Oil, spark plug, switch k ey, fuel stabilizer

$23.99

$

In Stock, only 1 left!

0
