OS 82 (56A-820-195) - MTD Pro Overseeder General Assembly II Parts Diagram

Pro Overseeder

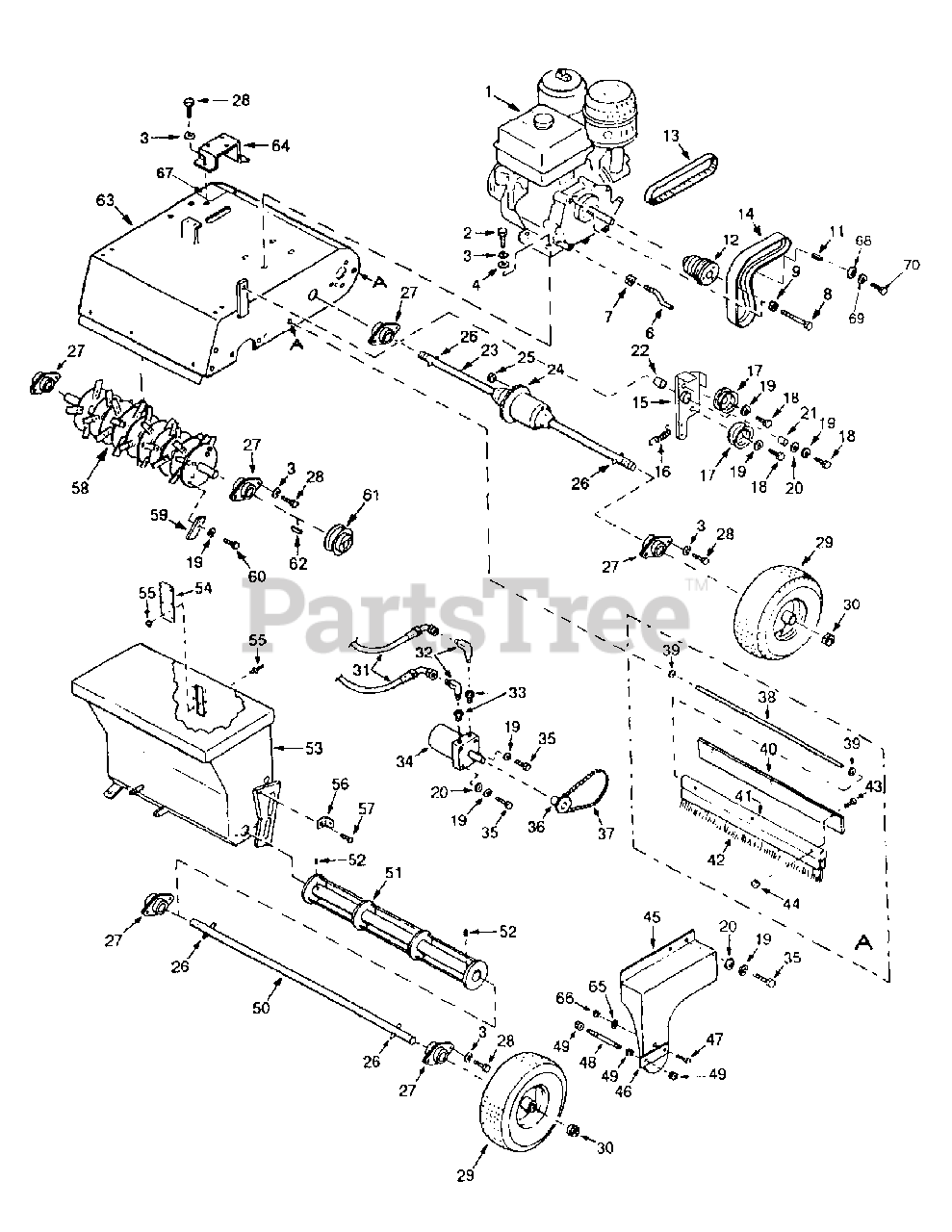

General Assembly II Parts Diagram

  • Title

1

MTD 01001002

Engine, Kawasaki, 8 HP

$

$

Not available

2

MTD 00012382

Cap Screw, 5/16-18 x 1-1/2 Hex Hd.

$

$

Not available

3

MTD 00012168

Lock Washer, 5/16

$

$

Not available

4

MTD 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

6

MTD 00037302

Belt Guide, Lower

$

$

Not available

7

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

8

MTD 00032088

Cap Screw, 5/16-24 x 4-1/2 Hex Hd.

Note: NLA

$

$

Not available

9

MTD 912-3057

Hex Nut, 5/16-24

$6.49

$

In Stock, Qty 13

0

11

MTD 00021533

Key, 1/4 x 1/4 x 1/4

$22.99

$

Usually ships in 3-6 days

0

12

MTD 01000165

Double Pulley, 2.65 Dia. 3.15 Dia.

$251.99

$

Usually ships in 3-6 days

0

13

MTD 00021811

Pump Belt

$40.99

$

Usually ships in 3-6 days

0

14

MTD 00021812

Belt, Blade Reel Drive

$141.99

$

Usually ships in 3-6 days

0

15

MTD 00030341

Bellcrank, Blade Reel Drive

$

$

Not available

16

MTD 00030020

Spring, Idler Tension

$12.99

$

Usually ships in 3-6 days

0

17

MTD 00021810

Idler Pulley

$25.99

$

Usually ships in 3-6 days

0

18

MTD 00011438

Cap Screw, 3/8-16 x 1-1/2 Hex Hd.
(Superseded to 710-06021)

$3.49

$

In Stock, only 2 left!

0

19

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

20

MTD 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

21

MTD 00030342

Pivot Tube, Bellcrank

$

$

Not available

22

MTD 00012403

Bushing

Note: NLA

$

$

Not available

23

MTD 00021795P

Differential and Axle

$699.99

$

Usually ships in 3-6 days

0

24

MTD 00016338

Sprocket, Machined

$181.99

$

Usually ships in 3-6 days

0

25

MTD 00012165

Hex Nut, 5/16-18 Nylock

$4.49

$

In Stock, only 1 left!

0

26

MTD 00013397

Pin, Groove, 1/4 x 1-1/2

$10.99

$

Usually ships in 3-6 days

0

27

MTD 00034995P

Flanged, Ball Bearing

$112.99

$

Usually ships in 3-6 days

0

27

MTD 741-0242

Flange Cover, Bearing

$10.99

$

Usually ships in 3-6 days

0

28

MTD 00012179

Cap Screw, 5/16-18 x 3/4 Hex Hd.

$3.49

$

Usually ships in 3-6 days

0

29

MTD 00021813

Wheel and Tire Assembly

$161.99

$

Usually ships in 3-6 days

0

30

MTD 01000678

Nut, Jam 1.0-14 Insert Lock
(Superseded to 712-05008)

$13.99

$

In Stock, Qty 5

0

31

MTD 00030017

Hydraulic Hose, Valve to Hyd. Motor

$

$

Not available

32

MTD 00012474

Hydraulic Fitting, 90§ Elbow

$

$

Not available

33

MTD 00009164

Hydraulic Fitting, Reducer

$

$

Not available

34

MTD 00030015

Motor, Hydraulic Drive

$

$

Not available

35

MTD 00012171

Cap Screw, 3/8-16 x 1 Hex Hd

$2.99

$

Usually ships in 3-6 days

0

36

MTD 00030014

Sprocket, Hydraulic Motor

$106.99

$

Usually ships in 3-6 days

0

37

MTD 00014601

Chain, Roller

$230.99

$

Usually ships in 3-6 days

0

38

MTD 00021824

Brush Shaft

$

$

Not available

39

MTD 00021804

Retainer, Push-On, 1/4

$

$

Not available

40

MTD 00021822

Brush Guard

$55.99

$

Usually ships in 3-6 days

0

41

MTD 01002327

Clip, Brush Support

Note: NLA

$

$

Not available

42

MTD 00021819

Brush

$56.99

$

Usually ships in 3-6 days

0

43

MTD 00014602

Mach. Screw, #10-32 x 3/4 Rd. Hd.

$

$

Not available

44

MTD 00014651

Hex Nut, #10-32 w/Star Washer

Note: NLA

$

$

Not available

45

MTD 01002368

Belt Guard

Note: NLA

$

$

Not available

46

MTD 00016344

Bracket, Belt Guard

$

$

Not available

47

MTD 710-3013

Cap Screw, 1/4-20 x 1/2 Hex Hd

$4.49

$

In Stock, only 2 left!

0

48

MTD 00016312

Rod, Belt Guard Support

Note: NLA

$

$

Not available

49

MTD 00012166

Hex Nut, 5/16 -18

$

$

Not available

50

MTD 00021818

Agitator Shaft

$

$

Not available

51

MTD 01002366

Agitator Assembly

$

$

Not available

52

MTD 00016358

Set Screw, 5/16-18 x 5/16 Soc. Hd

$

$

Not available

53

MTD 01002301

Hopper w/Cover

$

$

Not available

54

MTD 00017597

Plastic Window

$

$

Not available

55

MTD 00017732

Rivet w\Washer

$

$

Not available

56

MTD 00030076

Spring Bracket

Note: NLA

$

$

Not available

57

MTD 00061050

Mach. Screw, #8-32 x 5/16 Truss Hd.

$

$

Not available

58

MTD 01004767

Renovator Reel

$

$

Not available

58

MTD 00063635

Disc Shaft

$282.99

$

Usually ships in 3-6 days

0

58

MTD 01005911

Blade Disc
(Superseded to 02004309)

$33.99

$

Usually ships in 3-6 days

0

58

MTD 00064591

Spacer, Blade Disc

$

$

Not available

58

MTD 00064498

End Spacer, Blade Disc

$

$

Not available

58

MTD 00035603

Hex Nut, 1-1/4-12 Stover

Note: NLA

$

$

Not available

59

MTD 00030001

Blade, Heavy Duty

$10.99

$

Usually ships in 3-6 days

0

60

MTD 00016362

Cap Screw, 3/8-16 x 1/2 Hex Hd

$2.49

$

In Stock, only 1 left!

0

61

MTD 00014655

Pulley, Blade Reel Drive

$241.99

$

Usually ships in 3-6 days

0

61

MTD 00014673

Pulley Bushing

$88.99

$

In Stock, only 1 left!

0

62

MTD 00033670

Key, 1/4 x 1/4 x 1-1/4

$

$

Not available

63

MTD 01002372

Power Deck

$

$

Not available

64

MTD 01002333

Bracket, Valve Mount

$

$

Not available

65

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 12

0

66

MTD 00013291

Hex Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

67

MTD 01004125

Overlayment; Label;Clear

$

$

Not available

68

MTD 00013675

Clutch; Washer; Plated

$8.49

$

Usually ships in 3-6 days

0

69

MTD 00005762

Lock Washer; 7/16

$

$

Not available

70

MTD 01002884

Capscrew; 7/16-20 x 2

$

$

Not available

MTD 00013311

Warning - Keep Hands And Feet From Underneath Decal

Note: NLA (not shown)

$

$

Not available

MTD 00023252

Decal, Slicer Clutch, ON/OFF Decal

Note: NLA (not shown)

$

$

Not available

MTD 01004314

Approximate Seed Flow Settings Decal

Note: (not shown)

$

$

Not available

MTD 00031742

Step, 6" Roll Safety Adhesive, Black Decal

Note: (not shown)

$

$

Not available

MTD 01004313

Seed Metering Gauge Decal

Note: NLA (not shown)

$

$

Not available

MTD 01001281

Slow, Fast - Forward, Neutral, Reverse Decal

Note: (not shown)

$

$

Not available

MTD 01001280

Over-seeder (Large) Decal

Note: (not shown)

$

$

Not available

MTD 01001279

Over-seeder (Small) Decal

Note: (not shown)

$

$

Not available

MTD 00090006

Made in America Decal

Note: (not shown)

$

$

Not available

MTD 00011144

Decal, Oil Only, 10W30/10W40

Note: NLA (not shown)

$

$

Not available

MTD 01003528

Decal, Handle Panel

Note: (not shown)

$

$

Not available

MTD 00030617

Harness Wire ELECTRICAL COMPONENTS

Note: (not shown)

$

$

Not available
