OS 901 SPHD - Billy Goat Overseeder REEL/REEL DRIVE Parts Diagram

Overseeder

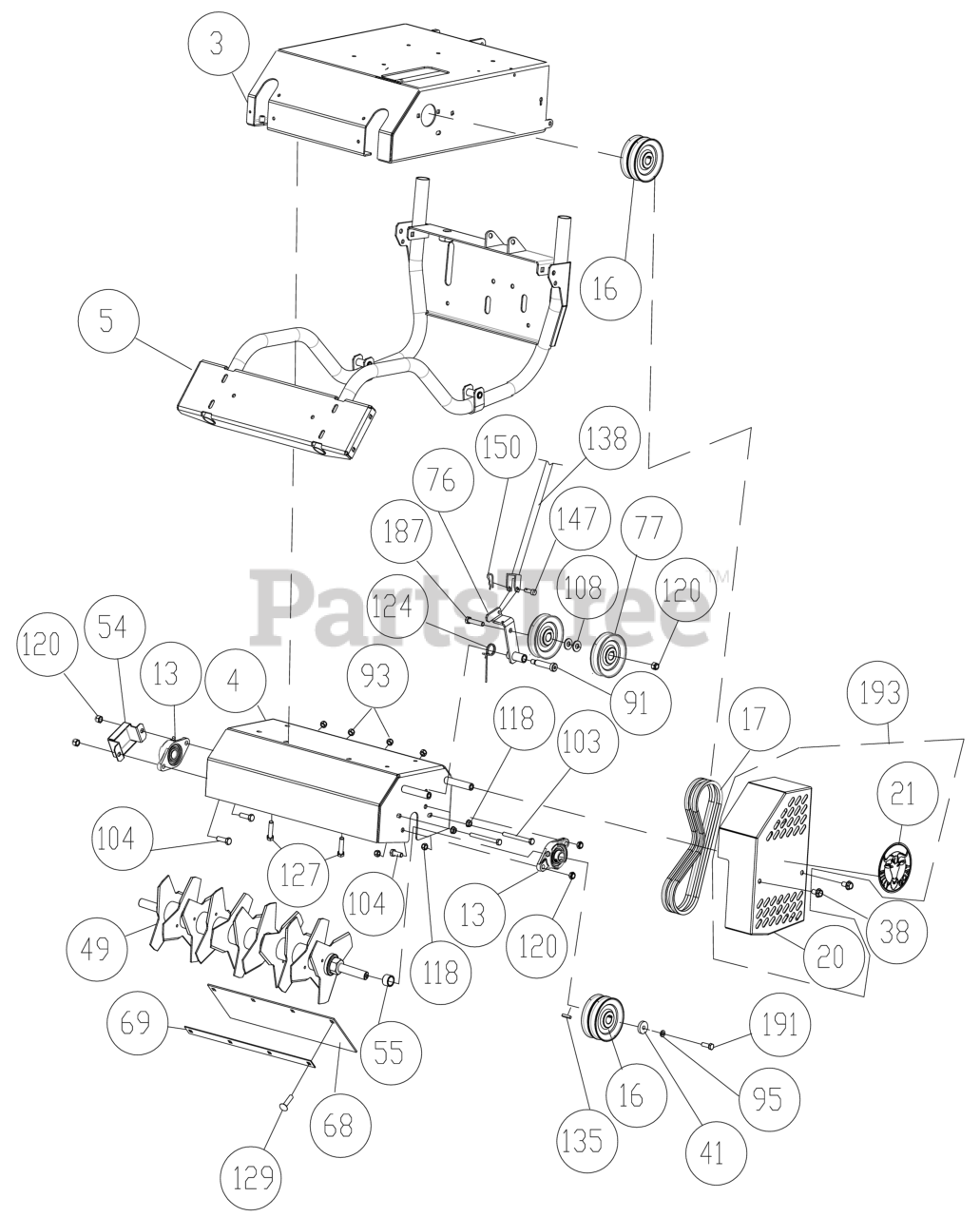

REEL/REEL DRIVE Parts Diagram

  • Title

3

Billy Goat 351125

ENGINE BASE WA

$

$

Currently unavailable

4

Billy Goat 351101

HOUSING VERTICUTTER WA

$329.99

$

Usually ships in 2-11 days

0

5

Billy Goat 351126

FRAME SUPPORT OS900SP WA

$

$

Currently unavailable

13

Billy Goat 350209

BEARING 3/4" CAST FLANGE W/ZERK

$39.99

$

In Stock, only 2 left!

0

16

Billy Goat 351210

PULLEY 0.75" ID X 4" 4L SECTION

$88.99

$

Usually ships in 2-11 days

0

17

Billy Goat 351213

BELT 6381 POWER RATED

$41.99

$

In Stock, only 2 left!

0

20

Billy Goat 351117

GUARD REEL BELT

$108.99

$

Usually ships in 2-11 days

0

21

Billy Goat 890456

LABEL DECAL SM CIRCLE

$5.49

$

In Stock, only 1 left!

0

38

Billy Goat 791080

SER HEX WASHER 3/8" - 16

$1.49

$

In Stock, Qty 6

0

41

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X .25 THK ZP

$3.99

$

Usually ships in 2-11 days

0

49

Billy Goat 351621

OSSP REEL KIT (SEE ACCESSORY PRICELIST)

$1043.99

$

Usually ships in 2-11 days

0

54

Billy Goat 351206

GUARD BEARING REEL

$26.99

$

Usually ships in 2-11 days

0

55

Billy Goat 351408

SPACER SEED BOX AXLE

$5.99

$

Usually ships in 2-11 days

0

68

Billy Goat 351269

DEFLECTOR RUBBER OS900SP

$14.99

$

Usually ships in 2-11 days

0

69

Billy Goat 351268

BAR CLAMP DEFLECTOR

$10.99

$

Usually ships in 2-11 days

0

76

Billy Goat 351112

ARM IDLER WA REEL ENGAGE

$50.99

$

Usually ships in 2-11 days

0

77

Billy Goat 350114

PULLEY IDLER 2.75" OD X 3/8" BORE

$40.99

$

In Stock, only 2 left!

0

91

Billy Goat 520031

BOLT SHOULDER 1/2" X 2"

$6.49

$

In Stock, only 2 left!

0

93

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 10

0

95

Billy Goat 8177011

WASHER LOCK 5/16 ST MED

$0.99

$

In Stock, Qty 8

0

103

Billy Goat 8041038

SCREWCAP 5/16"-18X3 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

104

Billy Goat 8041050

SCREWCAP 3/8"-16 X 1" HCS ZP

$0.99

$

In Stock, Qty 6

0

108

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

118

Billy Goat 350346

NUT FLANGE 5/16"-18 ZP

$0.99

$

Usually ships in 2-11 days

0

120

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 7

0

124

Billy Goat 351295

SPRING IDLER MULE DRIVE

$4.49

$

Usually ships in 2-11 days

0

127

Billy Goat 351264

SER HEX WASHER FLNG SCREW 5/16"-18 X 3/4"

$0.99

$

In Stock, Qty 10

0

129

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

135

Billy Goat 9201080

KEY 3/16" SQ X 1 1/4"

$

$

Not available

138

Billy Goat 351221

CABLE CLUTCH SEEDING CONTROL

$99.99

$

Usually ships in 2-11 days

0

147

Billy Goat 440124

PIN CLEVIS 1/4" X .75"

$1.49

$

In Stock, Qty 6

0

150

Billy Goat 440193

PIN CLIP HITCH 0.051 X 3/4"

$0.99

$

In Stock, Qty 11

0

187

Billy Goat 8041056

SCREWCAP 3/8"-16X2 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

191

Billy Goat 400164

SCREWCAP 5/16"-24 X 1" GR.8 ZP W/PATCH

$

$

Not available

193

Billy Goat 351607

GUARD REEL BELT W/LABELS

$129.99

$

Usually ships in 2-11 days

0
