Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) 32hp Vanguard & 31hp Kawasaki Engine Parts Diagram

Zero-Turn Mower

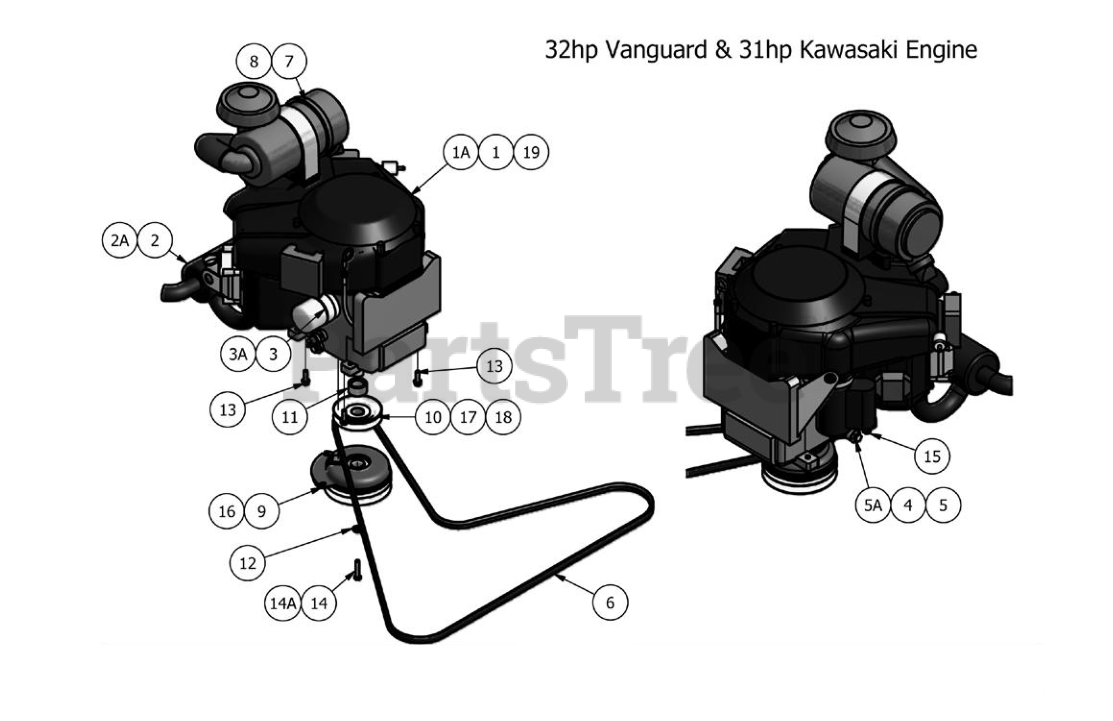

32hp Vanguard & 31hp Kawasaki Engine Parts Diagram

  • Title

1

Bad Boy 015-0032-00

32hp Vanguard Engine

$

$

Currently unavailable

1A

Bad Boy 015-0031-00

31hp Kawasaki Engine FX-850V-AS09R

$3414.99

$

Usually ships in 4-7 days

0

2

Bad Boy 015-0034-00

32 HP Vanguard Exhaust

$211.99

$

Usually ships in 4-7 days

0

2A

Bad Boy 015-0035-00

Exhaust for 31hp Kawasaki

$262.99

$

Usually ships in 4-7 days

0

3

Bad Boy 063-8018-00

Oil Filter for Briggs 31HP and 35HP Vanguard

$28.99

$

In Stock, Qty 17

0

3A

Bad Boy 063-2090-00

Oil Filter -26hp & 19hp Kawasaki

$

$

Not available

4

Bad Boy 051-5400-00

Oil Drain Hose for 35/31hp Briggs

$25.99

$

Usually ships in 4-7 days

0

5

Bad Boy 036-5400-00

Adaptor for 35/31hp Briggs Oil Drain

$35.99

$

Usually ships in 4-7 days

0

5A

Bad Boy 015-5404-00

Oil Drain Valve - 26hp Kawasaki

$15.99

$

Usually ships in 4-7 days

0

6

Bad Boy 041-5048-00

Pump Belt for Pup, Lightning, AOS

$64.99

$

In Stock, Qty 14

0

7

Bad Boy 063-8020-00

Cannister Air Filter (Inner)

$34.99

$

In Stock, only 2 left!

0

8

Bad Boy 063-8019-00

Cannister Air Filter (Outer)

$38.99

$

In Stock, Qty 8

0

9

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 16

0

10

Bad Boy 033-5034-00

4 3/4" Motor Pulley

$37.99

$

Usually ships in 4-7 days

0

11

Bad Boy 025-5032-00

1 1/8 collar spacer

$13.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 018-5051-00

3/8 x 1-1/8 Hex Washer Head Engine Bolt

$

$

Not available

14

Bad Boy 018-5300-00

7/16-20 x 2-1/2 GR 5 Hex Bolts Zinc (Vanguard Engine Only)

$1.49

$

In Stock, only 2 left!

0

14A

Bad Boy 018-5028-00

M10 X 1.5 X 60MM (Kawasaki Engine Only)

$1.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-2001-00

M8- 1.25 Nut (Kawasaki Engine Only)

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

17

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 042-6030-00

1/4" x 1 Square Key

$4.99

$

In Stock, Qty 8

0

19

Bad Boy 051-7060-00

AOS Fuel Line Assembly, 35 Vanguard - Complete

$

$

Currently unavailable
