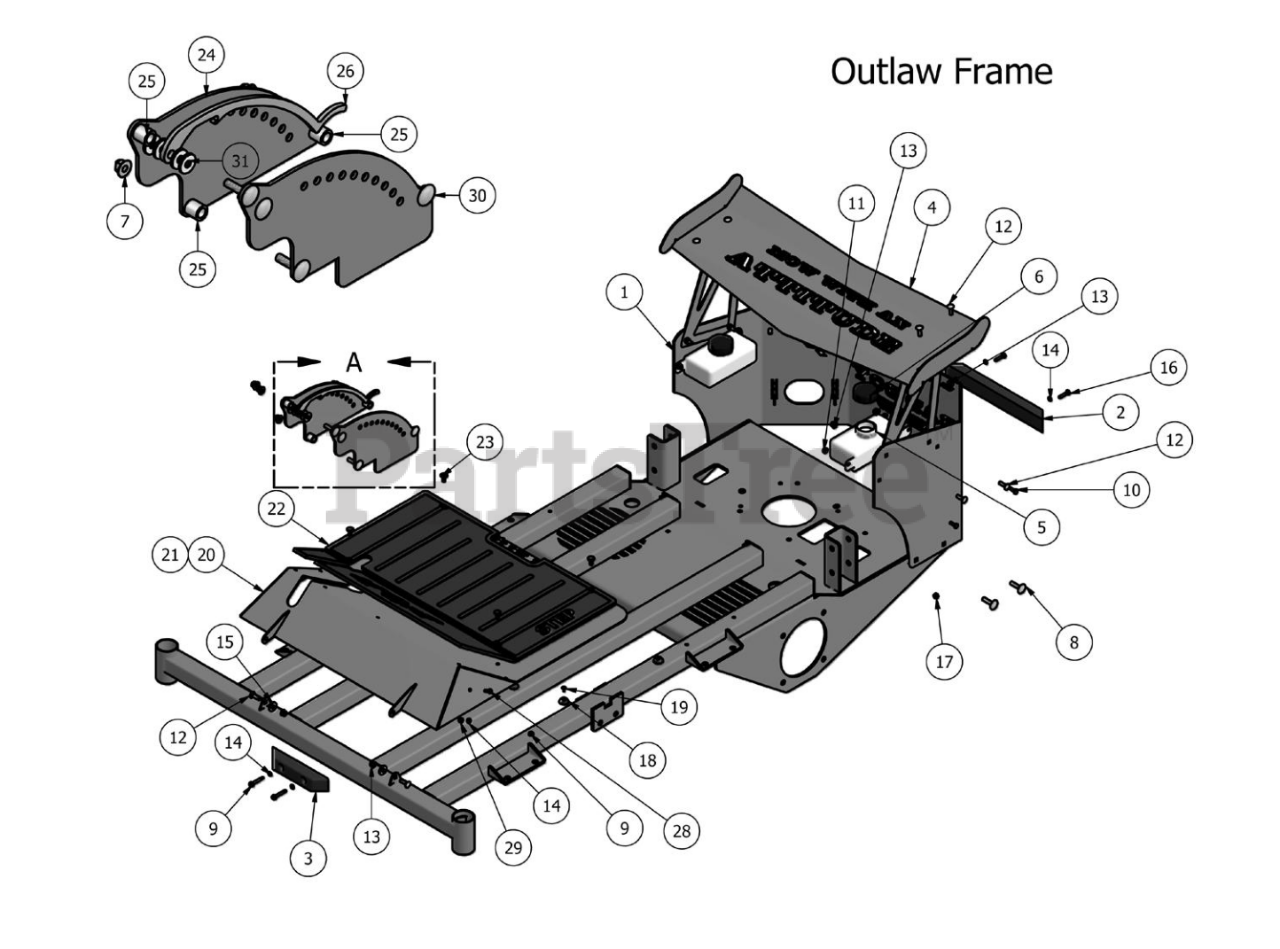

Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) Frame Parts Diagram

Zero-Turn Mower

Frame Parts Diagram

  • Title

1

Bad Boy 026-2110-00

Outlaw Rear Plate

$193.99

$

Usually ships in 0 days

0

2

Bad Boy 029-7037-00

14 Bumper

$45.99

$

Usually ships in 4-7 days

0

3

Bad Boy 029-7038-00

8 Bumper

$30.99

$

Usually ships in 4-7 days

0

4

Bad Boy 088-3010-00

Spoiler Assembly

$226.99

$

Usually ships in 4-7 days

0

5

Bad Boy 067-8085-00

Expansion Tank Outlaw

$33.99

$

In Stock, only 2 left!

0

6

Bad Boy 066-5050-00

ZT Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-5043-00

3/8" x 1-1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 030-7039-00

14 x 1-1/2 HWA A T/S Screw

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-8052-00

1/4-20 x 3/4 Grade 5 Hex bolts Zinc

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc W/Serrations

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

15

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

16

Bad Boy 018-4702-00

1/4-20 x 1-1/4 Grade 5 Hex bolts Zinc

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-8073-00

1/4-20 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 029-4010-00

15/16 DIA Recessed Bumper Rubber BLK

$1.49

$

Usually ships in 4-7 days

0

19

Bad Boy 030-3050-00

10 x 1/2 Pan Phillips Machine Screw

$0.99

$

In Stock, Qty 9

0

20

Bad Boy 079-3100-00

Outlaw Floor Board

$125.99

$

Usually ships in 4-7 days

0

21

Bad Boy 064-2006-00

Floor Cable

$16.99

$

Usually ships in 4-7 days

0

22

Bad Boy 081-2008-00

Foot Assist Floor Mat

$71.99

$

Usually ships in 4-7 days

0

23

Bad Boy 040-6080-00

Ratchet Fastener-Floorboard

$3.49

$

In Stock, only 3 left!

0

24

Bad Boy 026-2100-00

Outlaw Height Ind. Plate (Outer)

$13.99

$

Usually ships in 4-7 days

0

25

Bad Boy 025-5203-00

3/40D x 1/2ID x 3/4 Spacer

$3.49

$

In Stock, Qty 7

0

26

Bad Boy 031-0100-00

Outlaw Deck Lever Lock

$19.99

$

Usually ships in 4-7 days

0

28

Bad Boy 018-2012-00

1/4-20 x 1/2 Buttonhead Socket C/S 18-8 SS

$0.99

$

In Stock, only 2 left!

0

29

Bad Boy 013-8039-00

1/4-20 Hex Nuts Zinc

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

31

Bad Boy 019-2073-00

.39 Plastic Washer

$1.99

$

In Stock, only 3 left!

0
