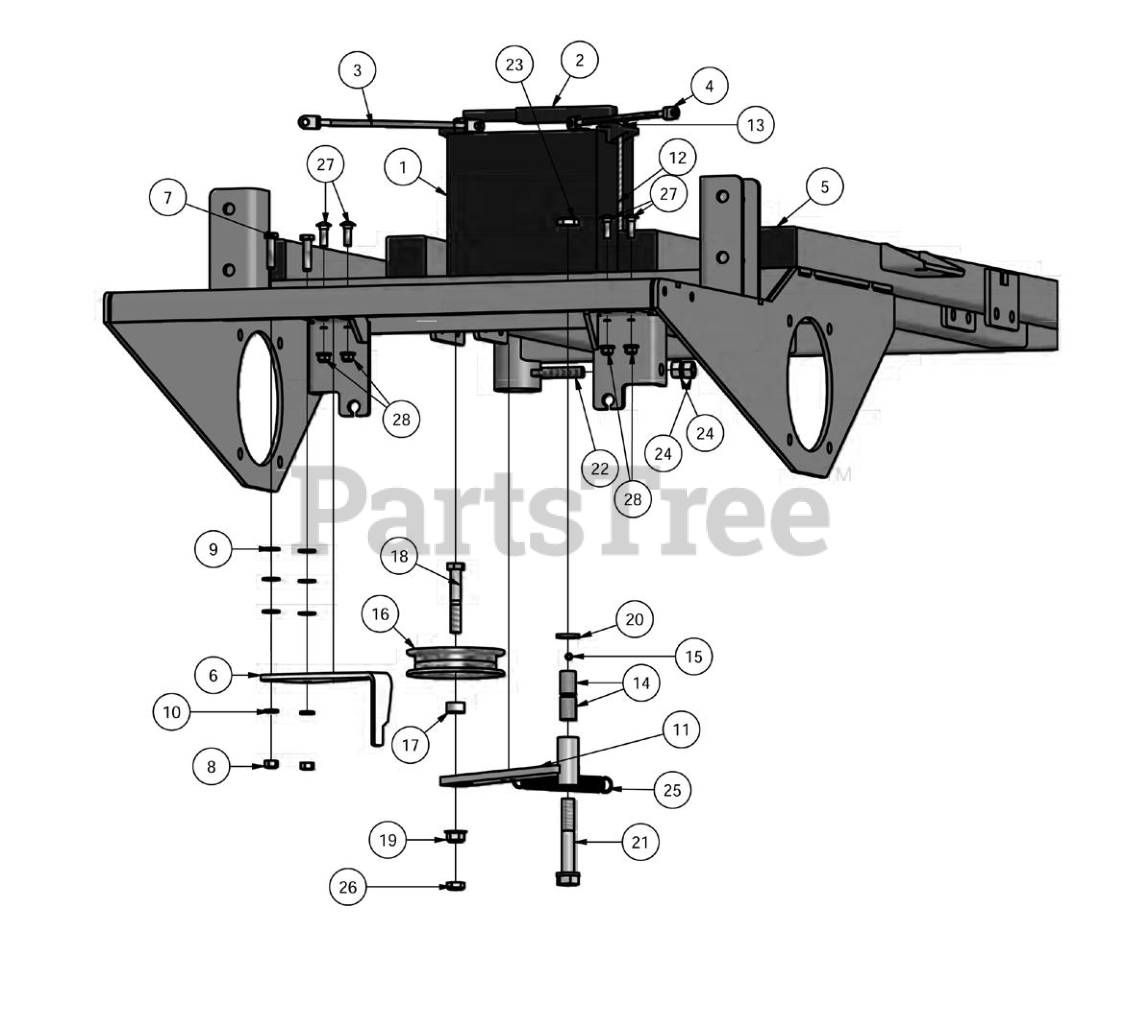

Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) Frame with Pulley Parts Diagram

Zero-Turn Mower

Frame with Pulley Parts Diagram

  • Title

1

Bad Boy 068-8049-00

Workaholic

$

$

Not available

2

Bad Boy 043-8929-98

Battery Hold Down

$

$

Currently unavailable

3

Bad Boy 064-5300-00

24" Red Cable

$23.99

$

In Stock, only 3 left!

0

4

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

5

Bad Boy 614-9000-00

2x2 Square Plug

$

$

Currently unavailable

6

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-6012-00

3/8-16 x 1-1/2 GR5 Hex Bolt

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 019-5029-00

3/8 USS Flat Washer Zinc

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 039-6945-00

Deck Idler Bracket

$43.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-8050-00

1/4-20 x 8 Carriage Bolt Zinc

$1.99

$

In Stock, Qty 8

0

13

Bad Boy 013-8051-00

1/4-20 Wing Nut Zinc

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 032-6033-00

Brass Bushing- 5/8 x 1 1/8- SS-2024-18

$3.99

$

In Stock, only 2 left!

0

15

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

17

Bad Boy 025-7036-00

1/2" Set collar

$4.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-7016-00

1/2 x 3 Grade 5 Hex Bolt

$1.99

$

In Stock, Qty 5

0

19

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 019-6017-00

.630 ID X 1.122 OD X.142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

21

Bad Boy 018-5311-00

5/8-11 X 4 GR 5 Hex Bolts Zinc

$4.49

$

In Stock, only 1 left!

0

22

Bad Boy 034-5039-00

6 Pump Idler Spring

$

$

Not available

23

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Locknut Zinc

$0.99

$

In Stock, only 2 left!

0

24

Bad Boy 613-7018-00

1/2-13 Hex Nuts Zinc

$

$

Currently unavailable

25

Bad Boy 034-9050-00

Deck Idler Spring

$18.99

$

In Stock, only 2 left!

0

26

Bad Boy 013-6052-00

1/2-20 Nylon Insert Jam Locknut Zinc Orange Zinc

$0.99

$

Usually ships in 4-7 days

0

27

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0
