Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) Front Wheel Assembly Parts Diagram
Zero-Turn Mower

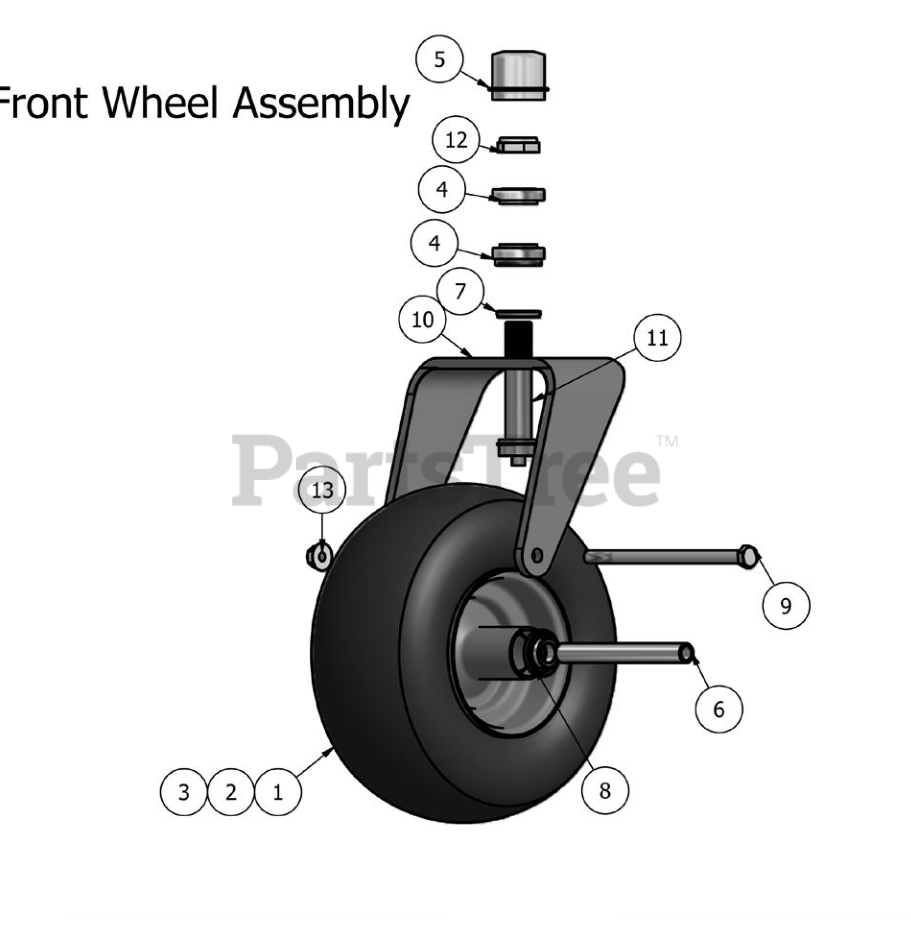

Front Wheel Assembly Parts Diagram
Bad Boy 022-2006-00
13" x 6.50 -6 Tire and Orange Wheel
$136.99
$
Usually ships in 4-7 days
Bad Boy 022-5347-00
13" x 6.50 -6 Tire ONLY
$102.99
$
In Stock, only 2 left!
Bad Boy 022-2002-00
6" Wheel ONLY
$115.99
$
Usually ships in 4-7 days
Bad Boy 010-7001-00
Bearing
$9.99
$
In Stock, Qty 11
Bad Boy 014-7005-00
Dust Cover
$9.99
$
In Stock, Qty 18
Bad Boy 025-5201-00
7" x 1/2" ID Tire Spacer
$
$
Currently unavailable
Bad Boy 012-7003-00
Seal
$10.99
$
In Stock, Qty 6
Bad Boy 022-7010-00
Wheel Bearing
$21.99
$
In Stock, Qty 6
Bad Boy 018-7010-00
1/2" x 9" Bolt
$6.49
$
In Stock, only 2 left!
Bad Boy 023-0002-00
Front Fork
$33.99
$
In Stock, only 2 left!
Bad Boy 037-0001-00
Front Fork Spindle
$30.99
$
Usually ships in 4-7 days
Bad Boy 013-9004-00
1" Fine Thread Nylock Half Nut
$3.99
$
In Stock, only 4 left!
Bad Boy 013-8050-00
1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$1.99
$
In Stock, Qty 20+
