Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) Fuel Tanks Parts Diagram

Zero-Turn Mower

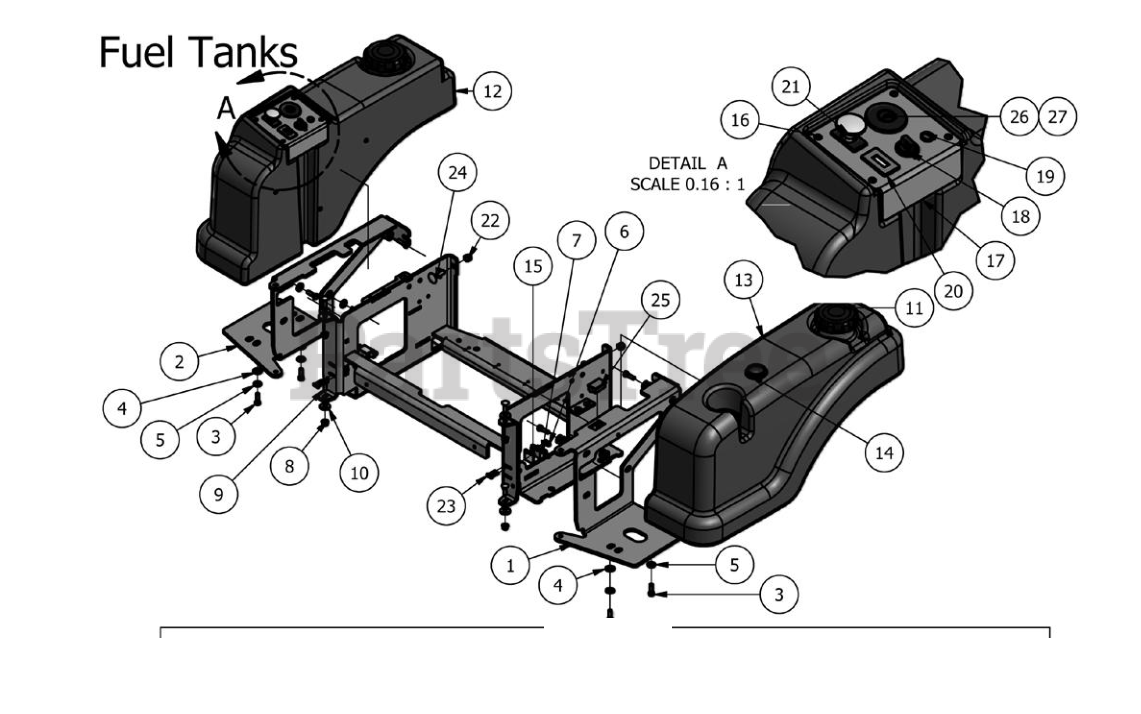

Fuel Tanks Parts Diagram

  • Title

1

Bad Boy 031-2006-00

Tank Support-Left

$50.99

$

Usually ships in 0 days

0

2

Bad Boy 031-2007-00

Tank Support-Right

$50.99

$

Usually ships in 0 days

0

3

Bad Boy 018-2007-00

5/16-18 x 1 Grade 5 Hex bolt Zinc

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 019-8044-00

5/16 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 20+

0

5

Bad Boy 019-8051-00

5/16 Lock Washer Zinc

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 077-8073-00

Brake Handle Switch

$11.99

$

In Stock, Qty 13

0

8

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

11

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

12

Bad Boy 067-5000-00

Right Tank

$

$

Not available

13

Bad Boy 067-5001-00

Left Tank

$

$

Not available

14

Bad Boy 067-4025-00

Fuel Gauge and Grommet

$58.99

$

Usually ships in 4-7 days

0

15

Bad Boy 025-6041-00

Switch Block Plastic

$2.49

$

Usually ships in 4-7 days

0

16

Bad Boy 018-2010-00

10-32 x 3/8 Button Socket C/S 18-8 SS

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 079-3300-00

Control Panel

$25.99

$

Usually ships in 0 days

0

18

Bad Boy 077-2075-00

12V AUX Connection

$22.99

$

Usually ships in 4-7 days

0

19

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

20

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

21

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-5041-00

3/8-18 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-8058-00

10-24 x 1 Button Socket C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 018-5043-00

3/8" x 1-1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

25

Bad Boy 018-1040-00

Control Panel Stop

$3.49

$

Usually ships in 4-7 days

0

26

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

27

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0
