Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2010) Seat Frame Parts Diagram

Zero-Turn Mower

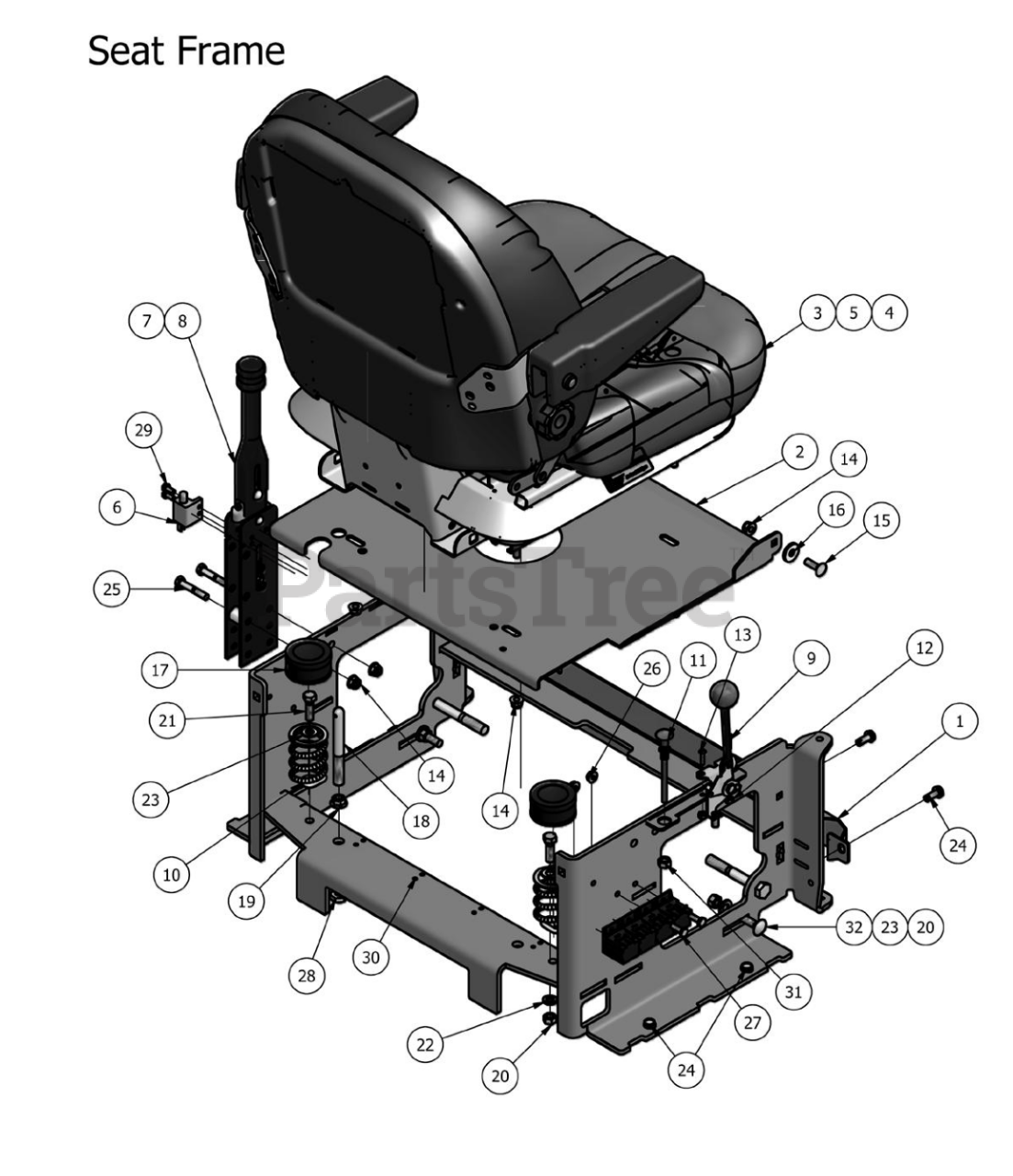

Seat Frame Parts Diagram

  • Title

1

Bad Boy 014-2100-00

Outlaw Cooler Cover

$

$

Currently unavailable

2

Bad Boy 026-2006-00

Aos, Diesel, Pup,Lightning Seat Plate

$105.99

$

Usually ships in 4-7 days

0

3

Bad Boy 071-3000-00

Suspension Seat

$

$

Not available

4

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 2 left!

0

5

Bad Boy 036-5300-00

Seat Switch Adaptor

$16.99

$

Usually ships in 4-7 days

0

6

Bad Boy 077-8073-00

Brake Handle Switch

$11.99

$

In Stock, Qty 13

0

7

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

8

Bad Boy 069-8054-00

Hand Brake Assembly

$136.99

$

Usually ships in 4-7 days

0

9

Bad Boy 055-8017-00

Throttle Lever Assembly

$48.99

$

Usually ships in 4-7 days

0

10

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

11

Bad Boy 054-8016-00

Choke

$30.99

$

In Stock, only 4 left!

0

12

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-8057-00

10-24 x 3/4 Button Socket C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 013-8049-00

5/16-18 Nylon Insert Flange Nut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

17

Bad Boy 014-8047-00

Seat Bumper

$2.49

$

In Stock, only 1 left!

0

18

Bad Boy 044-4000-00

Seat Post

$7.99

$

Usually ships in 4-7 days

0

19

Bad Boy 013-5300-00

1/2-13 Hex flange Nut Zinc w/Serrations

$0.99

$

In Stock, Qty 6

0

20

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

21

Bad Boy 018-5040-00

3/8-16 x 1-1/4 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, Qty 9

0

22

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 019-5029-00

3/8 USS Flat Washer Zinc

$0.99

$

In Stock, only 2 left!

0

24

Bad Boy 030-7050-00

5/16 x 3/4 Hex Washer Head Type F Screw

$2.49

$

Usually ships in 0 days

0

25

Bad Boy 018-8059-00

5/16-18 x 1-3/4 Grade 5 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc W/Serrations

$0.99

$

In Stock, only 2 left!

0

27

Bad Boy 018-8052-00

1/4-20 x 3/4 Grade 5 Hex bolts Zinc

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 013-6052-00

1/2-20 Nylon Insert Jam Locknut Zinc Orange Zinc

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 018-1080-00

12-24 x 1/2 Hex Washer Head bolt

$2.49

$

Usually ships in 4-7 days

0

30

Bad Boy 612-1004-00

12in Cable Tie Black

$

$

Currently unavailable

31

Bad Boy 013-6051-00

3/8-24 Hex Jam Nuts Zinc

$0.99

$

In Stock, Qty 20+

0

32

Bad Boy 018-4706-00

3/8 x 1 1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0
