Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2011) 61" Deck Parts Diagram

Zero-Turn Mower

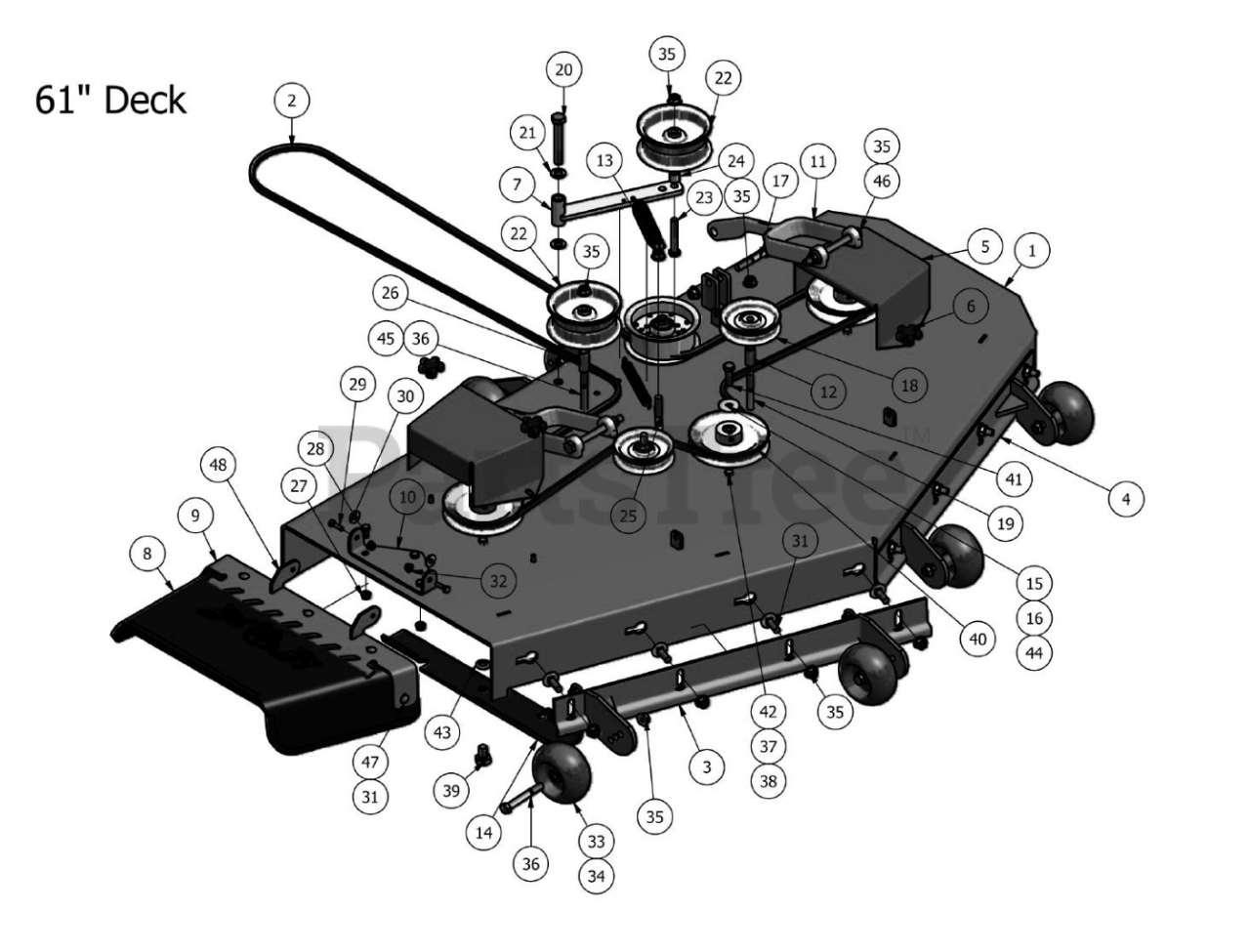

61" Deck Parts Diagram

  • Title

1

Bad Boy 060-6100-00

61" Outlaw Deck (Shell Only)

$1210.99

$

Usually ships in 4-7 days

0

2

Bad Boy 041-0178-00

61 inch Outlaw Deck Belt

$102.99

$

In Stock, Qty 20+

0

3

Bad Boy 060-6210-00

61 Outlaw Adjustable Deck Front (Right)

$75.99

$

Usually ships in 4-7 days

0

4

Bad Boy 060-6220-00

61 Outlaw Adjustable Deck Front (Left)

$75.99

$

Usually ships in 4-7 days

0

5

Bad Boy 014-6004-00

Pulley Cover

$45.99

$

Usually ships in 4-7 days

0

6

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

7

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

8

Bad Boy 210-6005-00

Rubber Discharge Chute (Rubber Only)

$63.99

$

In Stock, only 2 left!

0

9

Bad Boy 039-4864-10

60" Discharge Chute Upper Hanger Plate

$

$

Currently unavailable

10

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

11

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

12

Bad Boy 025-5338-00

Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

13

Bad Boy 034-2009-00

Deck Idler Spring

$19.99

$

In Stock, Qty 15

0

14

Bad Boy 038-6080-00

61 inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

15

Bad Boy 019-6019-00

Spring Blade Cupped Washer

$9.99

$

Usually ships in 4-7 days

0

16

Bad Boy 030-0050-00

5/16" Set Screw

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6036-00

1/2 x 2-1/2 Hex Bolt

$1.99

$

In Stock, only 2 left!

0

18

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-2018-00

1/2 x 3-1/2 Flange Bolt - Grade 8

$3.99

$

In Stock, only 2 left!

0

20

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

21

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 033-5001-00

5 3/4" Flat Idler Pulley-32FI-92-008

$67.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

24

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

25

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

26

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

27

Bad Boy 013-5201-00

3/8-16 Hex Flange Nuts Zinc w/Serrations

$1.99

$

In Stock, Qty 20+

0

28

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

29

Bad Boy 018-2007-00

5/16-18 x 1 Grade 5 Hex bolt Zinc

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 019-6042-00

.360ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

31

Bad Boy 018-3003-00

1/2 x 1-1/4 Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

32

Bad Boy 013-8049-00

5/16-18Nylon Insert flange Nut zinc Orange Insert

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 022-5234-00

Anti-Scalp Rollers

$

$

Not available

34

Bad Boy 022-5234-98

Complete Roller Assembly

$20.99

$

Usually ships in 4-7 days

0

35

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flangenut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

0

36

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

37

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

38

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-6020-00

5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow

$2.99

$

In Stock, Qty 20+

0

40

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 16

0

41

Bad Boy 018-5600-00

1/2" x 1 1/2" Hex Bolt

$

$

Currently unavailable

42

Bad Boy 018-5040-00

3/8-16 x 1-1/4 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, Qty 9

0

43

Bad Boy 019-5007-00

5/8 Lock Washer Zinc

$0.99

$

In Stock, only 1 left!

0

44

Bad Boy 042-6030-00

1/4 X 1 Square Key

$4.99

$

In Stock, Qty 8

0

45

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

46

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

47

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

48

Bad Boy 210-6004-00

Chute Assembly

$

$

Not available
