Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2011) Actuator Bar Assembly Parts Diagram

Zero-Turn Mower

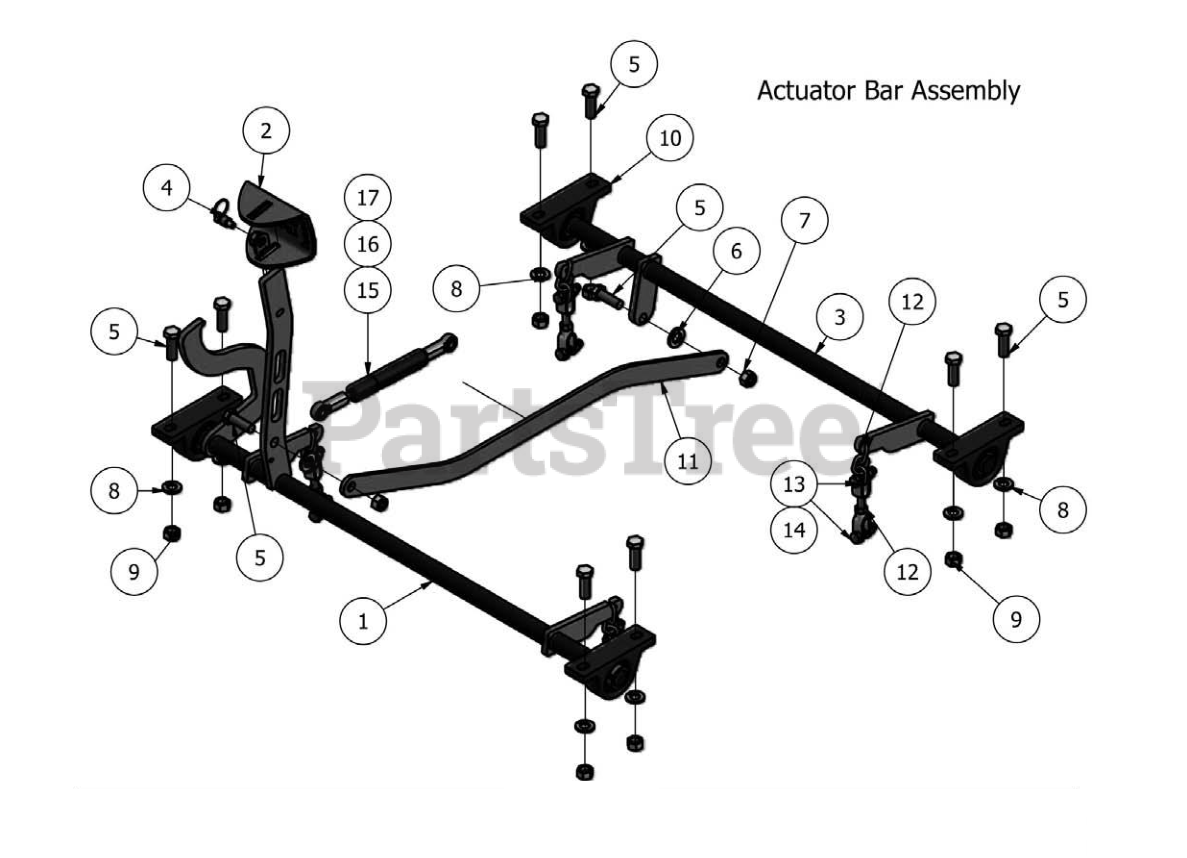

Actuator Bar Assembly Parts Diagram

  • Title

1

Bad Boy 028-6010-00

Outlaw Actuator Bar Assembly Front

$128.99

$

Usually ships in 4-7 days

0

2

Bad Boy 026-0013-00

Deck Assist- Foot Petal

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 028-6020-00

Outlaw Actuator Bar Assembly Rear

$113.99

$

Usually ships in 4-7 days

0

4

Bad Boy 040-5000-00

Pull Pin

$22.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-6019-00

1/2-20 x 1-1/2 Grade 5 Hex Bolt Zinc

$1.49

$

In Stock, Qty 7

0

6

Bad Boy 019-6017-00

.630 ID X 1.122 OD X .142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 013-6037-00

1/2-12 Nylon Locknut Zinc Orange Nylon

$1.49

$

Usually ships in 4-7 days

0

8

Bad Boy 019-5007-00

1/2 Lock Washer Zinc

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 013-7018-00

1/2-13 Hex Nuts Zinc

$0.99

$

In Stock, Qty 6

0

10

Bad Boy 017-7008-00

Pillow block 2bolt sealmaster

$22.99

$

Usually ships in 4-7 days

0

11

Bad Boy 028-6050-00

Outlaw Deck Linkage Rod

$30.99

$

Usually ships in 4-7 days

0

12

Bad Boy 047-2000-00

Yoke/Deck Hanger Assby - 2 Link Chain

$

$

Not available

13

Bad Boy 018-6012-00

3/8-16 x 1/ 1/2 GR5 Hex Bolt

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-5041-00

3/8-18 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 087-7200-00

Damper For 72"

$66.99

$

In Stock, only 3 left!

0

16

Bad Boy 087-6100-00

Damper for 61"

$83.99

$

In Stock, only 2 left!

0

17

Bad Boy 087-5400-00

Damper for 54"

$66.99

$

Usually ships in 4-7 days

0
