Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2012) Drive Arm Assembly Parts Diagram

Zero-Turn Mower

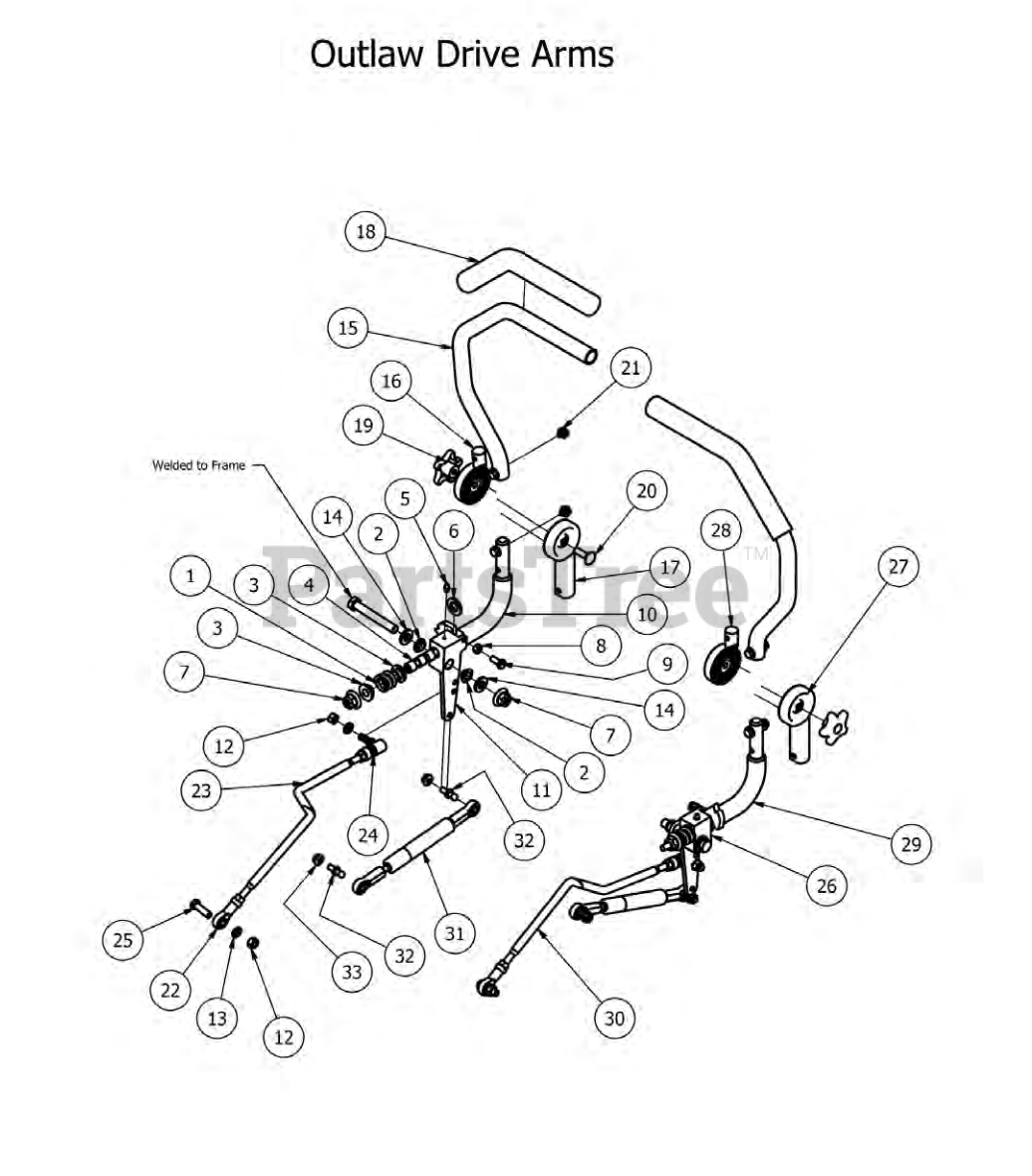

Drive Arm Assembly Parts Diagram

  • Title

1

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

2

Bad Boy 032-5055-00

Bushing for 2012 Drive Arms

$6.99

$

Usually ships in 4-7 days

0

3

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 032-8024-00

507 ID Nylon Bushing

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 019-6017-00

635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

10

031-9020-00

Steering Arm Elbow - Left

$

$

Not available

11

Bad Boy 027-9000-00

Drive Arm Lever Housing (Left)

$45.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 019-7000-00

505x1x.125 Oil Impregnated washer

$5.49

$

Usually ships in 4-7 days

0

15

Bad Boy 031-9010-00

Upper Tube-Adjustable Steering

$

$

Currently unavailable

16

Bad Boy 031-9017-00

Upper adjuster-Steering Arm- Left

$

$

Not available

17

Bad Boy 031-9014-00

Lower Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

18

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

19

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

21

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, only 3 left!

0

22

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

23

Bad Boy 035-2050-00

Push Rod for Outlaw - Left

$34.99

$

Usually ships in 4-7 days

0

24

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

25

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

26

Bad Boy 027-9001-00

Drive Arm Lever Housing (Right)

$45.99

$

Usually ships in 4-7 days

0

27

Bad Boy 031-9015-00

Lower Adjuster -Steering Arm- Right

$

$

Not available

28

Bad Boy 031-9016-00

Upper Adjust Steering Arm- Right

$

$

Not available

29

Bad Boy 031-9025-00

Steering Arm Elbow - Right

$90.99

$

Usually ships in 4-7 days

0

30

Bad Boy 035-2000-00

Push Rod for Outlaw - Right

$34.99

$

Usually ships in 4-7 days

0

31

Bad Boy 087-3000-00

Damper

$68.99

$

Usually ships in 4-7 days

0

32

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

33

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0
