Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2013) 61" Deck Parts Diagram

Zero-Turn Mower

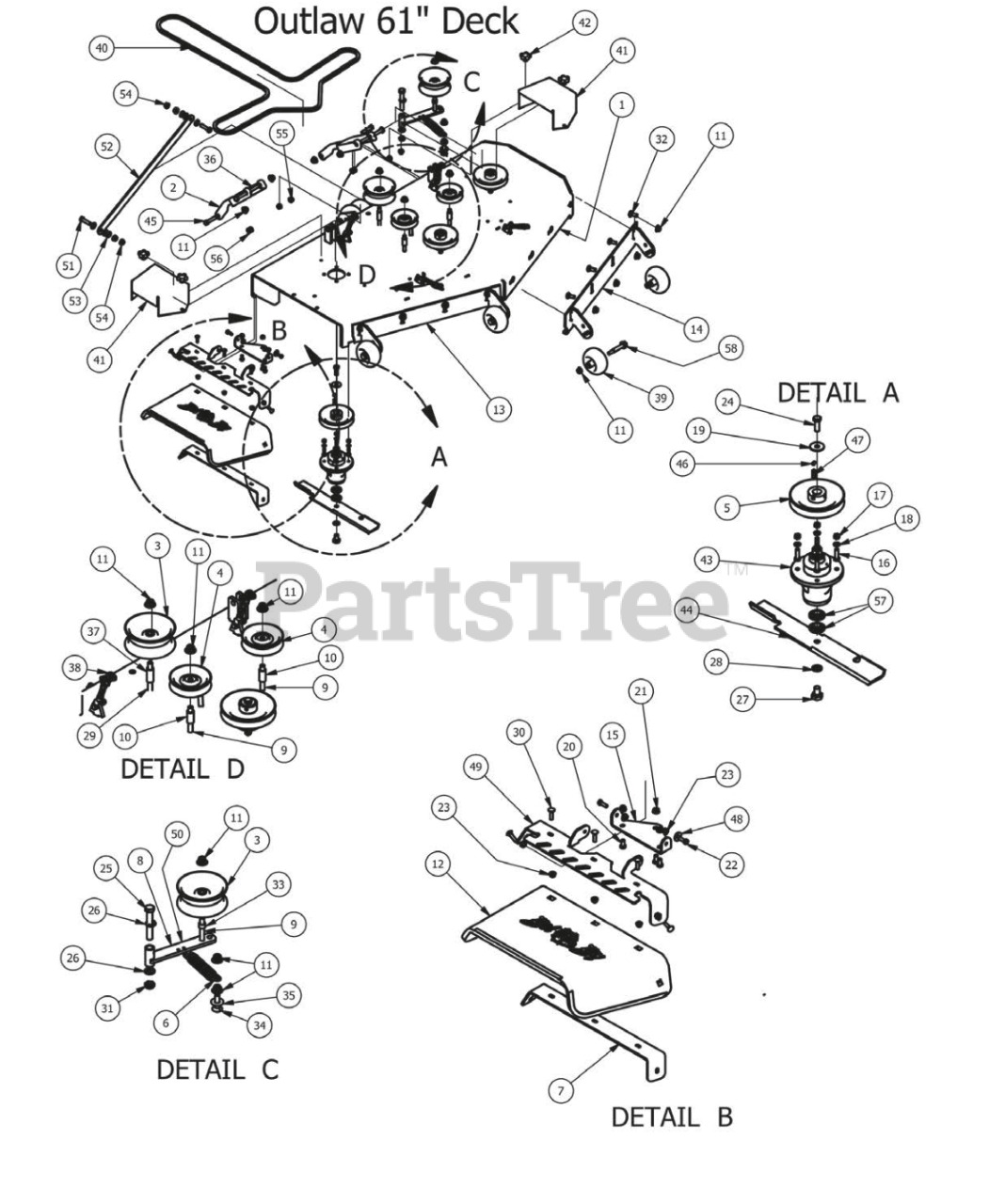

61" Deck Parts Diagram

  • Title

1

Bad Boy 060-6100-00

61" Outlaw (Deck Only)

$1210.99

$

Usually ships in 4-7 days

0

2

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

3

Bad Boy 033-5001-00

5 3/4 Flat Idler-32FI-92-008 Pulley

$67.99

$

Usually ships in 4-7 days

0

4

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

5

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 16

0

6

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

7

Bad Boy 039-4863-00

60" Lower Hanger

$34.99

$

Usually ships in 4-7 days

0

8

Bad Boy 039-6945-00

Deck Idler Bracket

$43.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

10

Bad Boy 025-5338-00

Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0

13

Bad Boy 060-6220-00

61 Outlaw Adjustable Deck Front (Left)

$75.99

$

Usually ships in 4-7 days

0

14

Bad Boy 060-6210-00

61 Outlaw Adjustable Deck Front (Right)

$75.99

$

Usually ships in 4-7 days

0

15

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

17

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

20

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 013-9002-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

In Stock, only 1 left!

0

24

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 7

0

25

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

26

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

27

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

28

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

30

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

31

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

32

Bad Boy 018-3003-00

1/2" x 1 1/4 Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

33

Bad Boy 025-5203-00

Spacer 3/4 OD X 1/2 ID X.75

$3.49

$

In Stock, Qty 7

0

34

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

35

Bad Boy 019-2040-00

1/2" Flat Washer

$1.99

$

Usually ships in 4-7 days

0

36

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

37

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

38

Bad Boy 047-2000-00

2- Link Adjustable Deck Hange

$

$

Not available

39

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

40

Bad Boy 041-0178-00

B178 Belt For 61 Inch Outlaw

$102.99

$

In Stock, Qty 20+

0

41

Bad Boy 014-6010-00

Pulley Cover

$

$

Not available

42

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

43

Bad Boy 037-8000-50

Double Bearing Spindle

$

$

Not available

44

Bad Boy 038-6080-00

61 inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

45

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

46

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

47

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

48

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

49

Bad Boy 039-4864-00

60" Upper Hanger Plate

$45.99

$

Usually ships in 4-7 days

0

50

Bad Boy 039-6945-98

Deck Idler Assembly-parts of Assembly 8,11,3,33,9

$83.99

$

Usually ships in 4-7 days

0

51

Bad Boy 018-5049-00

1/2" x 13-2" GR 5 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

52

Bad Boy 028-6060-00

Panhard Linkage Bar

$13.99

$

Usually ships in 4-7 days

0

53

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

54

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

55

Bad Boy 032-5056-00

Flange Bushing For Deck Arm upper

$6.49

$

In Stock, only 3 left!

0

56

Bad Boy 032-5057-00

Flange for Lower Deck Arm

$15.99

$

In Stock, only 3 left!

0

57

Bad Boy 037-8001-00

Double Bearing For Spindle

$49.99

$

Usually ships in 4-7 days

0

58

Bad Boy 018-0010-00

Deck Wheel Bolt-2011 Outlaw

$6.99

$

In Stock, Qty 20+

0
