Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2013) Floor Board and Battery Assembly Parts Diagram

Zero-Turn Mower

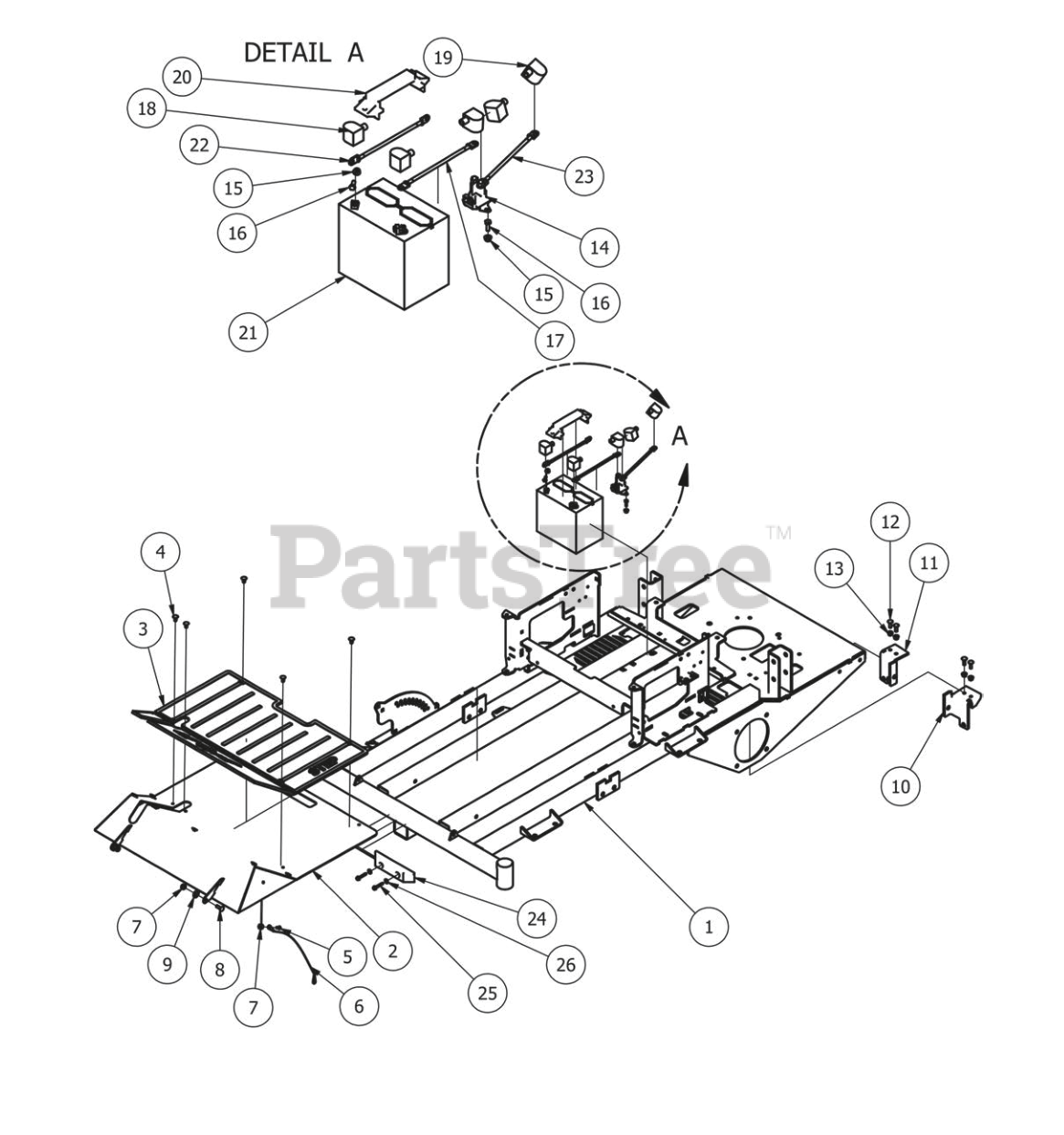

Floor Board and Battery Assembly Parts Diagram

  • Title

1

Bad Boy 070-5350-00

Outlaw Frame

$

$

Not available

2

Bad Boy 079-3100-00

Outlaw Floor Panel

$125.99

$

Usually ships in 4-7 days

0

3

Bad Boy 081-2008-00

Foot Assist Floor Mat

$71.99

$

Usually ships in 4-7 days

0

4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

5

Bad Boy 018-8064-00

1/4" x 5/8" BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 064-2006-00

Floor board Cable W/ Swivel Ends

$16.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 039-2113-00

Outlaw Brake Cable Mount Bracket (Right)

$17.99

$

Usually ships in 0 days

0

11

Bad Boy 039-2110-00

Outlaw Brake Cable Mounting Bracket (left)

$17.99

$

Usually ships in 0 days

0

12

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 013-9002-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

In Stock, only 1 left!

0

14

Bad Boy 108-5349-00

Solenoid

$31.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 064-5300-00

24" red battery cable

$23.99

$

In Stock, only 3 left!

0

18

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

19

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

20

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, only 1 left!

0

21

Bad Boy 068-8049-00

Battery

$

$

Not available

22

Bad Boy 086-0005-00

Starter to chassis cable

$10.99

$

Usually ships in 4-7 days

0

23

Bad Boy 086-0003-00

Red battery cable alternator to Started cable

$8.49

$

Usually ships in 4-7 days

0

24

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0

25

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0
