Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2014) Seat Frame Assembly Parts Diagram

Zero-Turn Mower

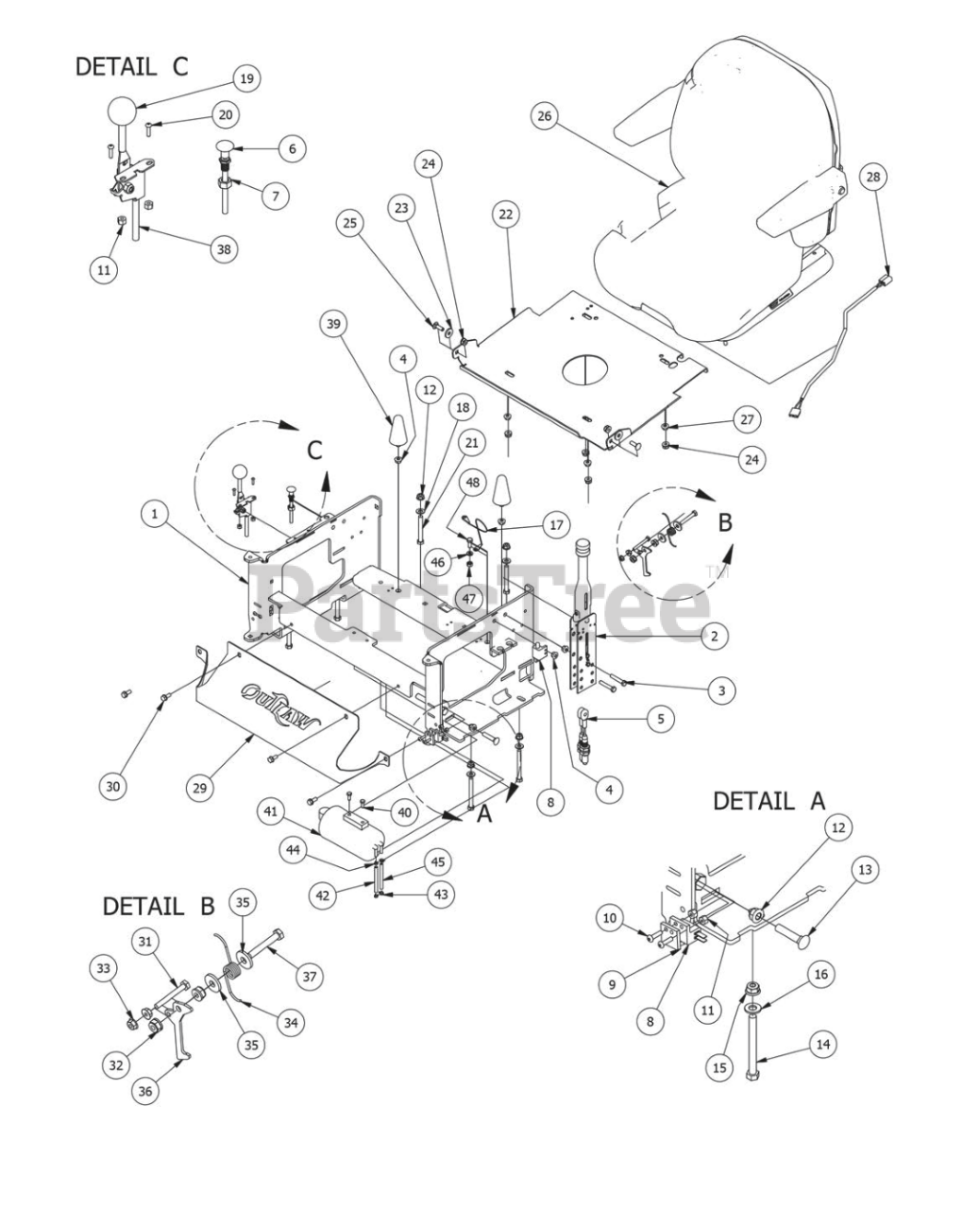

Seat Frame Assembly Parts Diagram

  • Title

1

Bad Boy 080-5000-00

Outlaw Seat Bracket 2012

$

$

Not available

2

Bad Boy 069-8054-00

Brake Handle Kit

$136.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

6

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

9

Bad Boy 025-6041-00

Switch Block Plastic

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-8058-00

10-24 x 1 BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

13

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-1010-00

3/8-16x3-1/2 grade 5 hex bolt

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

16

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 2 left!

0

20

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 018-4700-00

3/8-16x3 grade 5 hex bolt

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 026-2006-00

Seat Plate

$105.99

$

Usually ships in 4-7 days

0

23

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

24

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

25

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 071-5000-00

2010 Outlaw Seat

$

$

Currently unavailable

27

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

28

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

29

Bad Boy 014-2100-00

Outlaw Cooler Cover

$

$

Currently unavailable

30

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

31

Bad Boy 018-0011-00

1/4-20 x 2 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

32

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 034-1075-00

Torsion Spring for Seat latch

$5.99

$

Usually ships in 4-7 days

0

35

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

36

Bad Boy 031-0200-00

Seat Latch Lever

$3.49

$

Usually ships in 4-7 days

0

37

Bad Boy 018-0012-00

5/16-18 X 2 Hex C/S (GR.5) ZC

$2.99

$

In Stock, Qty 13

0

38

Bad Boy 055-8021-75

Outlaw Throttle Cable Only

$30.99

$

In Stock, Qty 6

0

39

Bad Boy 034-1444-00

Rubber Cone-1621-153

$

$

Not available

40

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 7

0

41

Bad Boy 067-0020-00

Carbon Canister ZT,CZT,Outlaw

$66.99

$

In Stock, only 2 left!

0

42

Bad Boy 051-8073-00

3/16 vinyl tubing

$3.49

$

In Stock, only 2 left!

0

43

Bad Boy 072-8070-00

3/16 vinyl clamp

$1.99

$

Usually ships in 4-7 days

0

44

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

45

Bad Boy 051-8072-00

1/4" vinyl tubing

$3.49

$

In Stock, Qty 6

0

46

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

47

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

48

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0
