Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2015) Kawasaki FX-730V Parts Diagram

Zero-Turn Mower

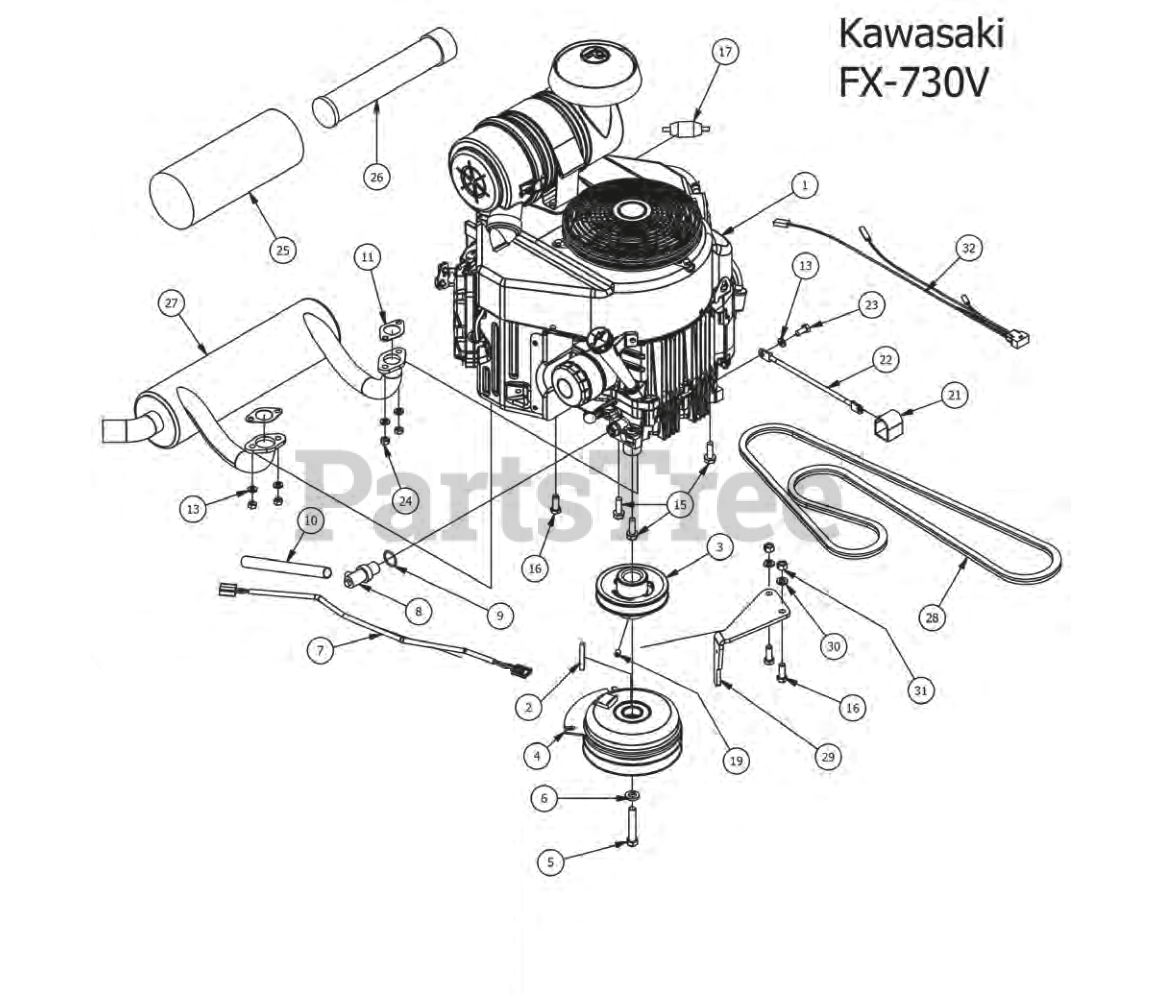

Kawasaki FX-730V Parts Diagram

  • Title

1

Bad Boy 015-0730-00

FX-730V

$2962.99

$

Usually ships in 4-7 days

0

2

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

3

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

4

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 16

0

5

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

8

Bad Boy 015-5404-00

oil drain

$15.99

$

Usually ships in 4-7 days

0

9

Bad Boy 015-5403-00

O-Ring

$7.99

$

Usually ships in 4-7 days

0

10

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, only 3 left!

0

11

Bad Boy 015-2709-00

Exhaust gasket

$11.99

$

In Stock, Qty 5

0

13

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

17

Bad Boy 063-6000-00

Universal inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

19

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

22

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-5321-00

M8x1.20x20MM Hex head bolt

$1.99

$

Usually ships in 4-7 days

0

24

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

25

Bad Boy 063-9005-00

Canister Air Filter- Outer

$

$

Not available

26

Bad Boy 063-9010-00

Canister Air Filter- Inner

$

$

Not available

27

Bad Boy 015-0048-00

Exhaust Kawasaki

$222.99

$

Usually ships in 4-7 days

0

28

Bad Boy 041-5048-00

Pump Belt

$64.99

$

In Stock, Qty 14

0

29

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

30

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

32

Bad Boy 086-9002-00

Harness Adaptor Outlaw FX (All)

$49.99

$

Usually ships in 4-7 days

0
