Outlaw / Outlaw Extreme - Bad Boy Zero-Turn Mower (2016) Transaxle Parts Diagram

Zero-Turn Mower

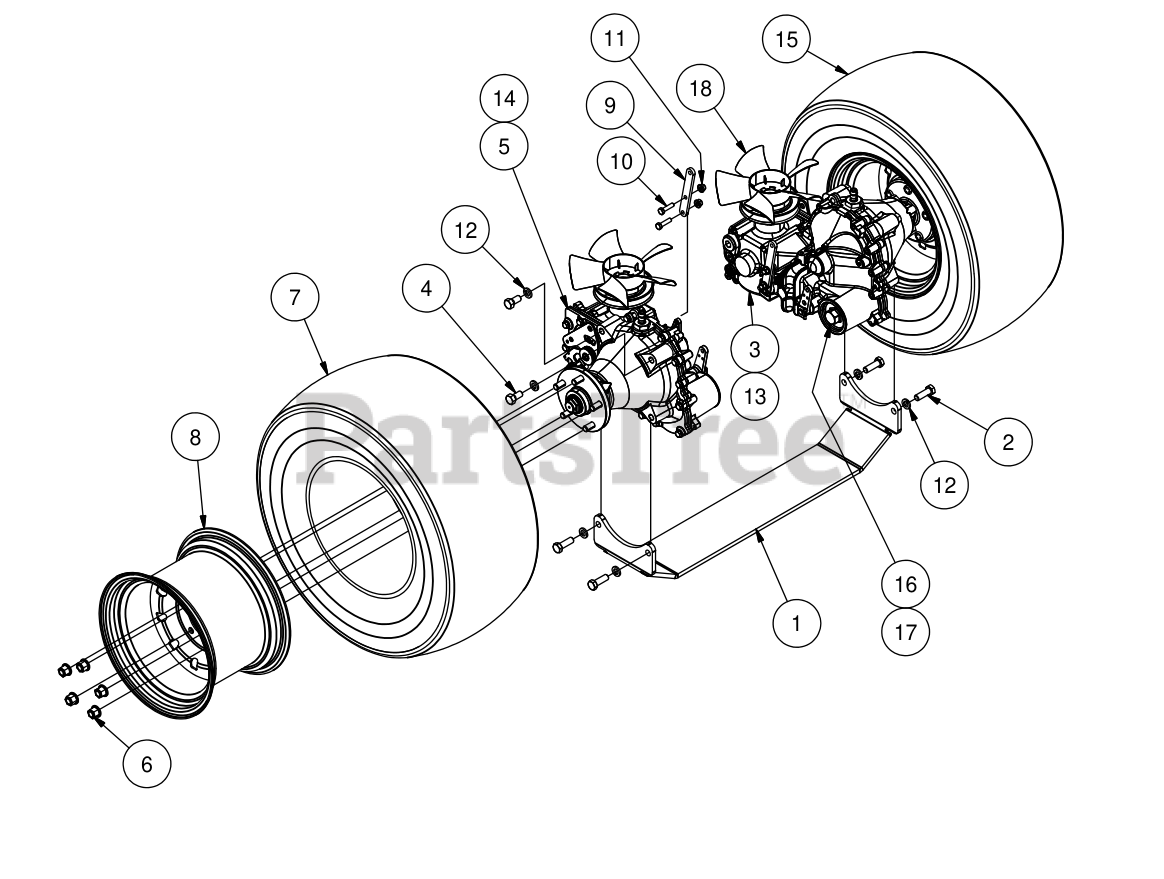

Transaxle Parts Diagram

  • Title

1

Bad Boy 203-0100-00

Outlaw Transaxle Cross Brace

$68.99

$

Usually ships in 4-7 days

0

2

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

3

Bad Boy 050-7000-00

ZT-5400 - Left (Extreme Only)

$1139.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 050-7001-00

ZT-5400 - Right (Extreme Only)

$1139.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

7

Bad Boy 022-5349-00

24 x 12 - 12 Tire Pro Maxxis

$247.99

$

Usually ships in 4-7 days

0

8

Bad Boy 022-4070-00

12x12" Black Wheel For 2015 Outlaw

$150.99

$

Usually ships in 4-7 days

0

9

Bad Boy 039-2135-00

2015 Outlaw Brake Adapter (4400 Transaxles Only)

$7.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt (4400 Transaxles Only)

$0.99

$

In Stock, Qty 5

0

11

Bad Boy 013-8049-00

5/16" Flange Nut Zinc W/Serrations (4400 Transaxles Only)

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, only 1 left!

0

13

Bad Boy 050-1000-00

4400 Transaxle - Left (Base Outlaw)

$1037.99

$

Usually ships in 4-7 days

0

14

Bad Boy 050-1050-00

4400 Transaxle - Right (Base Outlaw)

$1037.99

$

Usually ships in 4-7 days

0

15

Bad Boy 022-4050-00

24 x 12 - 12 Tire and Black Wheel Assembly

$298.99

$

Usually ships in 4-7 days

0

16

Bad Boy 063-1060-00

Hydro Filter for Outlaw Extreme

$37.99

$

In Stock, only 4 left!

0

17

Bad Boy 063-1070-00

4400 Hydro Filter for Outlaw

$61.99

$

In Stock, Qty 15

0

18

Bad Boy 050-2073-00

Fan/Pulley Kit for Outlaw

$163.99

$

Usually ships in 4-7 days

0
