Outlaw Stand-On - Bad Boy Stand-On Mower (2013) 48" Deck Assembly Parts Diagram

Stand-On Mower

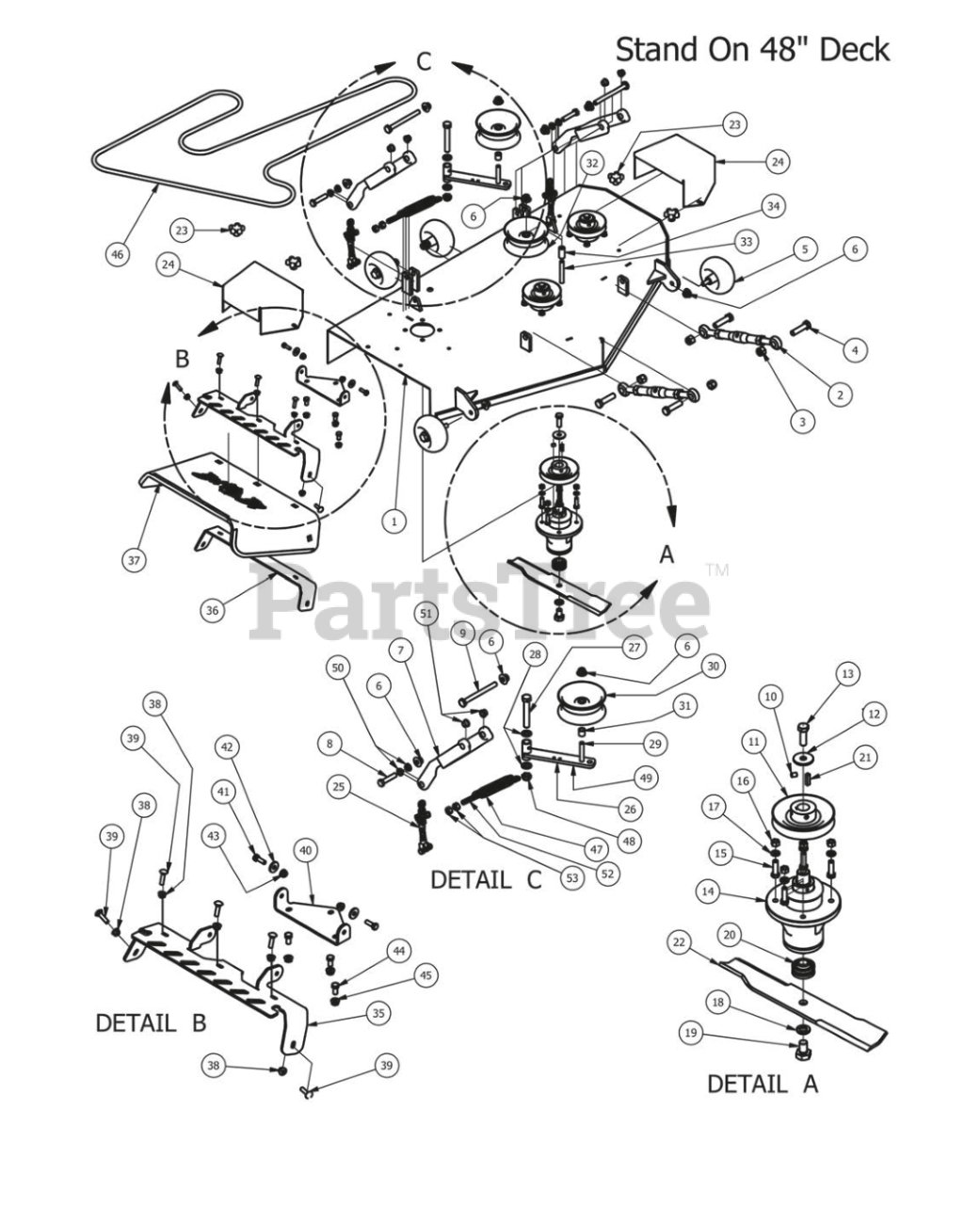

48" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-1010-00

48" Deck

$

$

Currently unavailable

2

Bad Boy 048-6056-00

Turnbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

5

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

8

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 033-6003-00

5" Deck Pulley

$45.99

$

In Stock, only 2 left!

0

12

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

13

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

14

Bad Boy 037-8000-50

Double Bearing Spindle

$

$

Not available

15

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

16

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

20

Bad Boy 037-8001-00

Double Bearing For Spindle

$49.99

$

Usually ships in 4-7 days

0

21

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

22

Bad Boy 038-4826-00

48" High Lift Fusion Blade

$24.99

$

In Stock, Qty 20+

0

23

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

24

Bad Boy 014-6010-00

Pulley Cover

$

$

Not available

25

Bad Boy 047-4000-00

4-Link Adjustable Deck Hange

$

$

Not available

26

Bad Boy 039-6945-00

Deck Idler 2009 AOS

$43.99

$

In Stock, only 2 left!

0

27

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

28

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

29

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

30

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

31

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

32

Bad Boy 033-7201-00

5 3/4" Deck Idler Pulley

$37.99

$

In Stock, Qty 20+

0

33

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

34

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

35

Bad Boy 039-4870-00

48" Upper Hanger

$45.99

$

Usually ships in 4-7 days

0

36

Bad Boy 039-4871-00

48/52 Discharge Lower Chute Bracket

$34.99

$

Usually ships in 4-7 days

0

37

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0

38

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

39

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

40

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

41

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

42

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

43

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

44

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

45

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

46

Bad Boy 041-5200-00

B111 Belt 48" Stand On

$85.99

$

In Stock, only 3 left!

0

47

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

48

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

49

Bad Boy 039-6945-98

Deck Idler Assembly Components 6,26,29,30,31

$83.99

$

Usually ships in 4-7 days

0

50

Bad Boy 032-5057-00

Flange for lower Deck Arm

$15.99

$

In Stock, only 3 left!

0

51

Bad Boy 032-5056-00

Flange Bushing For Deck Arm Upper

$6.49

$

In Stock, only 3 left!

0

52

Bad Boy 018-2004-00

All Thread-pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

53

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0
