Outlaw Stand-On - Bad Boy Stand-On Mower (2013) Push Rods & Drive Arms Assembly Parts Diagram

Stand-On Mower

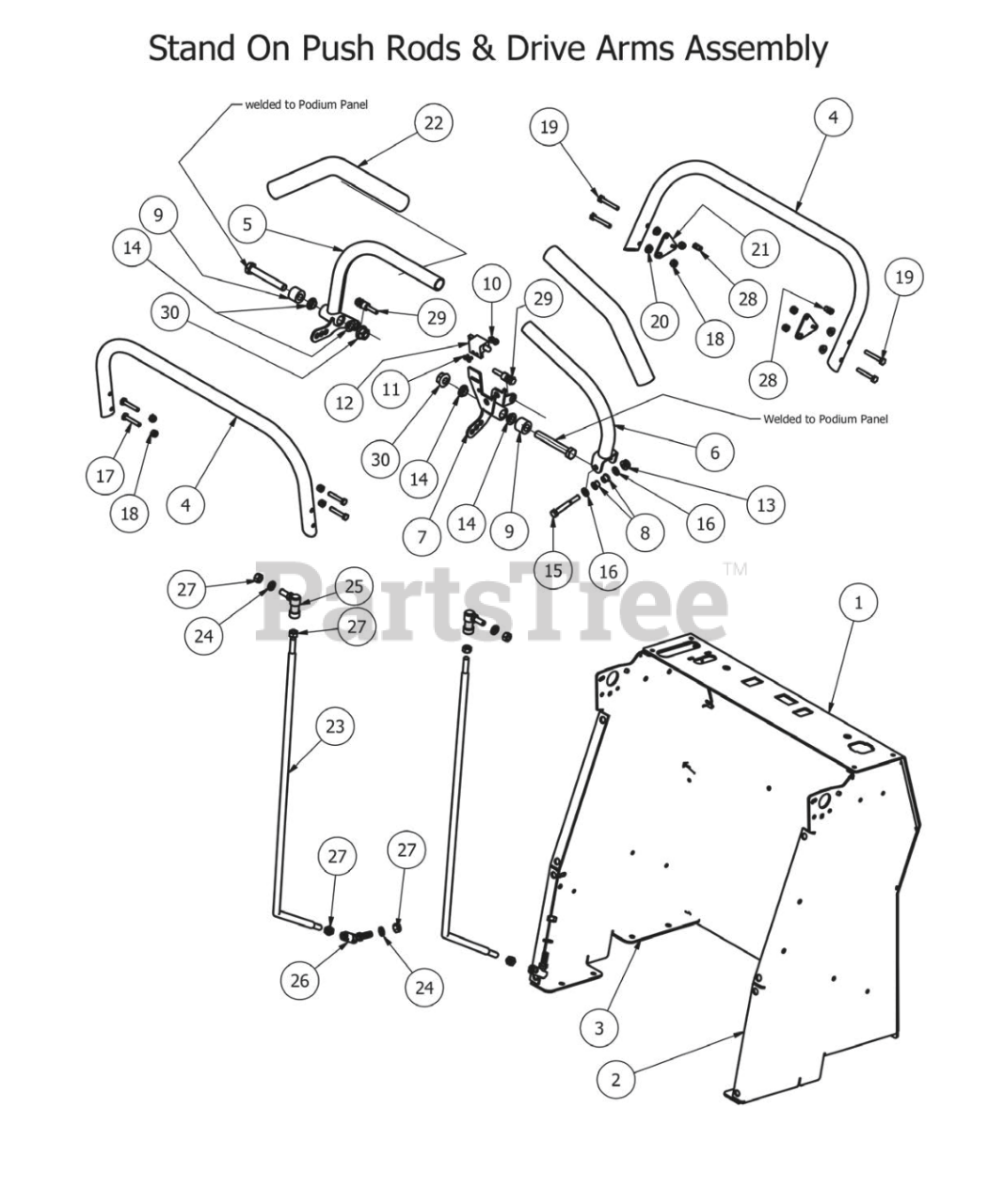

Push Rods & Drive Arms Assembly Parts Diagram

  • Title

1

Bad Boy 079-4020-00

Podium Front Panel

$113.99

$

Usually ships in 4-7 days

0

2

Bad Boy 079-4030-00

Podium Panel Right Side

$

$

Currently unavailable

3

Bad Boy 079-4040-00

Podium Panel Left Side

$

$

Currently unavailable

4

Bad Boy 031-7120-00

Support Handle Stand Up (Front & Back)

$17.99

$

Usually ships in 0 days

0

5

Bad Boy 031-7130-00

Left Steering Handle Assembly

$

$

Currently unavailable

6

Bad Boy 031-7140-00

Right Steering Handle Assembly

$45.99

$

Usually ships in 0 days

0

7

Bad Boy 039-0210-00

Safety Kill Switch Assembly Bracket

$45.99

$

Usually ships in 4-7 days

0

8

Bad Boy 032-5002-00

Stand On Flange Bushing-Steering Arms

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 025-0012-00

Steering Arm Spacer-Stand On

$7.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5200-00

1024 X 5/8" Buttonhead Bolt

$0.99

$

In Stock, Qty 5

0

12

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

13

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 032-5055-00

Bushing for 2012 Drive Arms

$6.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 018-5005-00

1/4-20 x 1 1/2" Bolt

$0.99

$

Usually ships in 4-7 days

0

18

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 018-0018-00

1/4-20x 1-3/4" Hex Bolt

$

$

Currently unavailable

20

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 039-0203-00

Neutral Safety Tab

$

$

Currently unavailable

22

Bad Boy 069-4010-00

Black Steering Grip

$8.49

$

In Stock, Qty 17

0

23

Bad Boy 035-1000-00

Push Rod Stand On

$30.99

$

Usually ships in 4-7 days

0

24

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 099-2009-00

3/8-24 Quick Release Ball Joint

$10.99

$

In Stock, only 2 left!

0

26

Bad Boy 099-6046-00

3/8-24 Ball Joint

$13.99

$

In Stock, only 4 left!

0

27

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

28

Bad Boy 077-1000-00

Magnet-Steering Arm-Stand On

$15.99

$

Usually ships in 4-7 days

0

29

Bad Boy 086-0015-00

Safety Switch Harness

$74.99

$

In Stock, only 2 left!

0

30

Bad Boy 013-0085-00

1/2-13 Hex Flange (GR.G) ZC

$1.49

$

Usually ships in 4-7 days

0
