Outlaw Stand-On - Bad Boy Stand-On Mower (2013) Transaxle Assembly Parts Diagram

Stand-On Mower

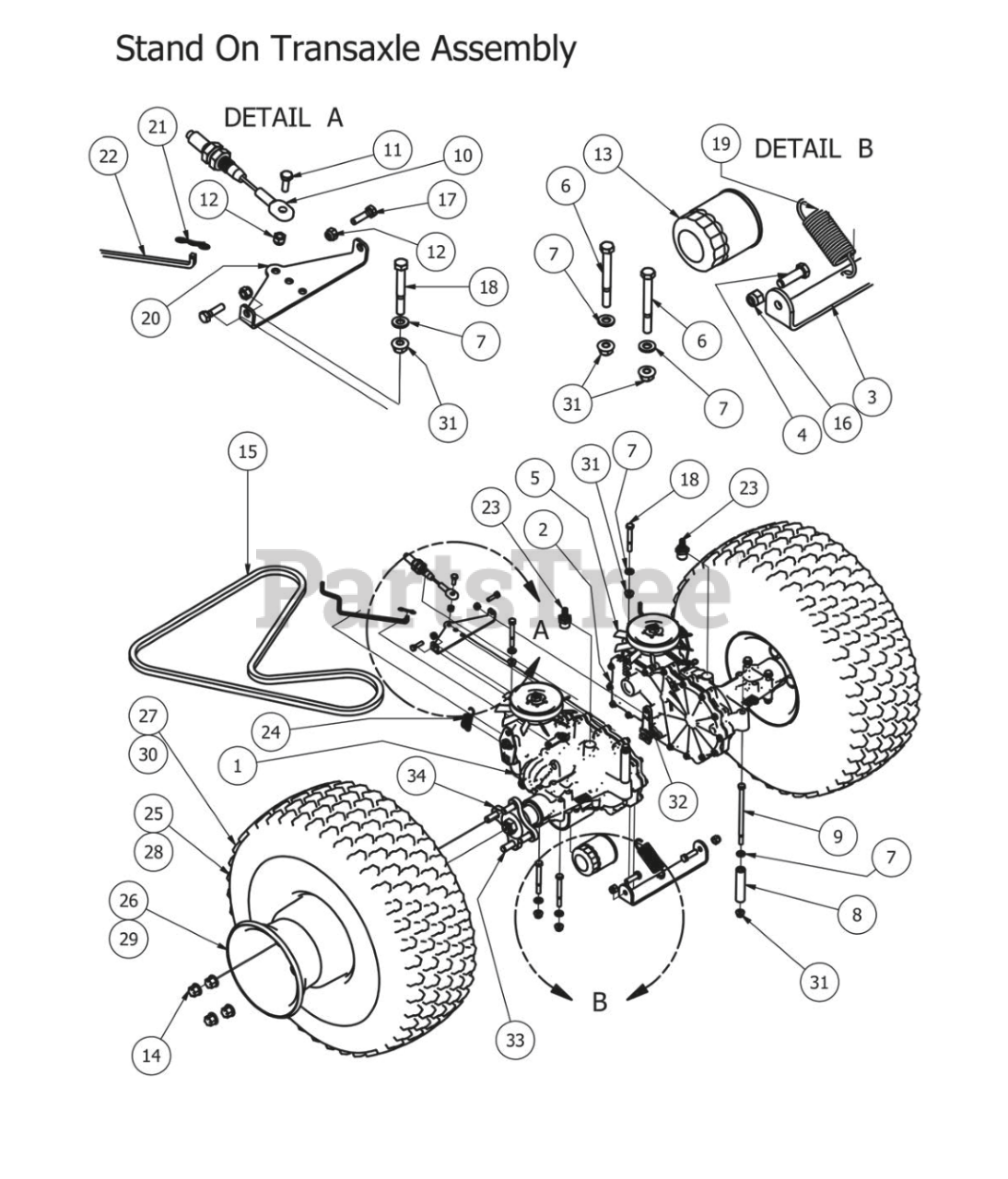

Transaxle Assembly Parts Diagram

  • Title

1

Bad Boy 050-6000-00

Left 3400 IZT for CZT

$

$

Not available

2

Bad Boy 050-6001-00

Right 3400 IZT for CZT

$

$

Not available

3

Bad Boy 028-4801-00

Crossover Bar for ZT

$29.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-3000-00

3/8" x2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

5

Bad Boy 050-2072-00

Fan/Pulley Kit For CZT

$96.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 025-5340-00

3 1/4" Spacer

$9.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-5355-00

5/16" x 6" Bolt

$2.99

$

In Stock, only 3 left!

0

10

Bad Boy 064-3000-00

Brake Cable-Bandit Stand On

$56.99

$

In Stock, only 4 left!

0

11

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 063-1050-00

Transaxle Hydro Filter

$24.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

15

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

16

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-4007-00

1/4-20 x 1 GR 5 hex bolt zinc

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 034-9000-00

ZT spring

$16.99

$

In Stock, Qty 5

0

20

Bad Boy 039-0212-00

Brake Bracket

$27.99

$

Usually ships in 4-7 days

0

21

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 028-0060-00

MZ Brake Release Bar

$7.99

$

Usually ships in 4-7 days

0

23

Bad Boy 024-1200-00

45 degree fitting

$21.99

$

Usually ships in 4-7 days

0

24

Bad Boy 034-1050-00

Spring for Stand On Models

$7.99

$

Usually ships in 4-7 days

0

25

Bad Boy 022-5460-00

23 x 10.50 -12 Assembly W/Negative Offset Wheel

$249.99

$

Usually ships in 4-7 days

0

26

Bad Boy 022-7061-00

12 Orange Wheel

$196.99

$

Usually ships in 4-7 days

0

27

Bad Boy 022-5351-00

23 x 10.50 -12 Tire

$174.99

$

Usually ships in 4-7 days

0

28

Bad Boy 022-3000-00

23 x 8.50-12 Tire & Wheel Assembly (48" Deck only)

$

$

Not available

29

Bad Boy 022-3026-00

23 x 8.50 (Wheel 48" Deck only)

$

$

Currently unavailable

30

Bad Boy 022-3025-00

23 x 8.50 -12 Tire (48" Deck only)

$235.99

$

Usually ships in 4-7 days

0

31

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

32

Bad Boy 092-8000-00

Transaxle Brake Lever

$22.99

$

Usually ships in 4-7 days

0

33

Bad Boy 050-2012-00

Transaxle Wheel Studs

$5.99

$

In Stock, Qty 5

0

34

Bad Boy 050-2076-00

ZT Transaxle Hub

$148.99

$

Usually ships in 4-7 days

0
