Outlaw Stand-On - Bad Boy Stand-On Mower (2015) Frame & Idler Assembly Parts Diagram

Stand-On Mower

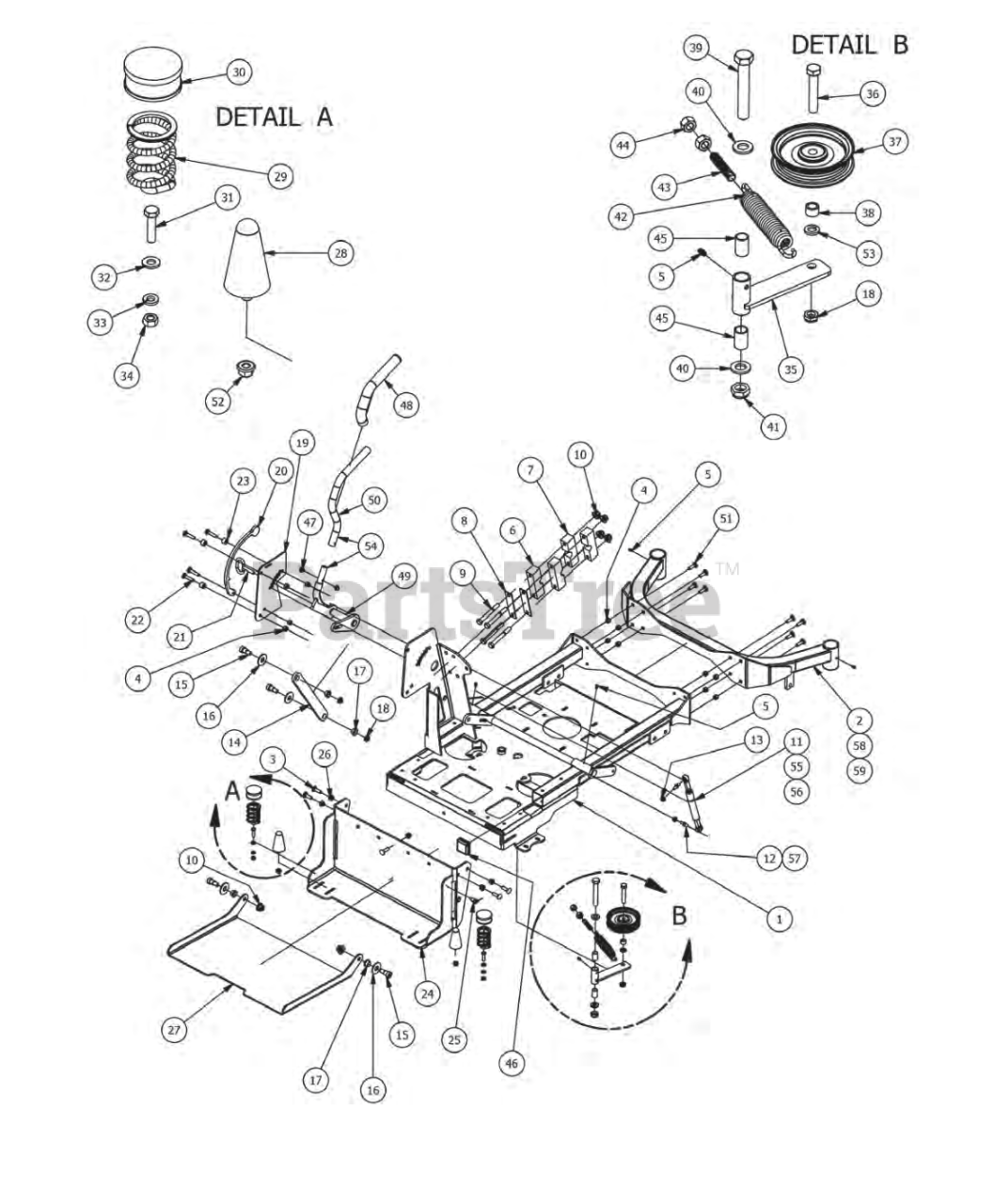

Frame & Idler Assembly Parts Diagram

  • Title

1

Bad Boy 070-5220-00

2015 Stand-On Frame

$

$

Not available

2

Bad Boy 070-9048-00

48" Front End (2015 Stand-On)

$

$

Not available

3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 1 left!

0

4

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 017-9000-00

Two Piece Pillow Block (Male)

$11.99

$

Usually ships in 4-7 days

0

7

Bad Boy 017-9050-00

Two Piece Pillow Block (Female)

$11.99

$

Usually ships in 4-7 days

0

8

Bad Boy 017-9025-00

Two Piece Pillow Block Strap

$34.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

13

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

14

Bad Boy 028-5000-00

Stand On Flat Linkage Bar

$

$

Currently unavailable

15

Bad Boy 018-3001-00

5/8" x 5/8" Shoulder Bolt

$16.99

$

In Stock, Qty 8

0

16

Bad Boy 019-5038-00

5/8" Flat Washer

$1.99

$

In Stock, only 4 left!

0

17

Bad Boy 032-5052-00

Bronze Bushing - SF-2024-8

$4.99

$

In Stock, Qty 6

0

18

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

19

Bad Boy 026-5050-00

2015 Stand-On Adjustment Plate (Bolt On)

$17.99

$

Usually ships in 0 days

0

20

Bad Boy 031-0090-00

2015 Stand-On Deck Lever Lock

$

$

Not available

21

Bad Boy 040-4000-00

Deck height lever pin

$18.99

$

In Stock, only 3 left!

0

22

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

23

Bad Boy 025-2004-00

ACS Spacer 3/4x3/8x1/2

$16.99

$

Usually ships in 4-7 days

0

24

Bad Boy 201-1100-00

Stand Frame Support

$

$

Not available

25

Bad Boy 040-4060-00

Deck Height Pin-Stand On-New

$

$

Not available

26

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

27

Bad Boy 026-5040-00

Stand Plate for Stand On

$

$

Not available

28

Bad Boy 034-1444-00

Rubber Cone-1621-153

$

$

Not available

29

Bad Boy 034-8045-00

Seat Spring

$21.99

$

Usually ships in 4-7 days

0

30

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

31

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

32

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

33

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

35

Bad Boy 039-5949-00

Stand-On Pump Idler Bracket

$39.99

$

Usually ships in 0 days

0

36

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

37

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

38

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

40

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

41

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

42

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

43

Bad Boy 018-2004-00

All Thread-pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

44

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

45

Bad Boy 032-6033-00

Idler Retainer bushing

$3.99

$

In Stock, only 2 left!

0

46

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

47

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, only 3 left!

0

48

Bad Boy 069-4010-00

rubber grip

$8.49

$

In Stock, Qty 17

0

49

Bad Boy 031-7145-00

Stand-On Deck Lift Lever

$

$

Currently unavailable

50

Bad Boy 031-7155-00

Stand-On Deck Lift Handle

$

$

Currently unavailable

51

Bad Boy 018-5045-00

3/8"-16 x 1 1/4" Carriage Bolt

$

$

Currently unavailable

52

Bad Boy 013-8049-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

Usually ships in 4-7 days

0

53

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

54

Bad Boy 031-7160-00

Deck Lift Lever Assembly uses parts. 47, 48, 49, & 50

$

$

Currently unavailable

55

Bad Boy 087-6100-00

250 lb Gas Spring-61" Deck outlaw

$83.99

$

In Stock, only 2 left!

0

56

Bad Boy 087-7200-00

300 lb Gas Spring-72" Deck outlaw

$66.99

$

In Stock, only 3 left!

0

57

Bad Boy 018-2049-00

13 mm Damper Ball Stud for 72" Deck only

$5.49

$

In Stock, Qty 5

0

58

Bad Boy 070-9054-00

54" Front End (2015 Stand-On)

$

$

Not available

59

Bad Boy 070-9061-00

61" Front End (2015 Stand-On)

$

$

Not available
