Outlaw Stand-On - Bad Boy Stand-On Mower (2017) 36" Deck Assembly Parts Diagram

Stand-On Mower

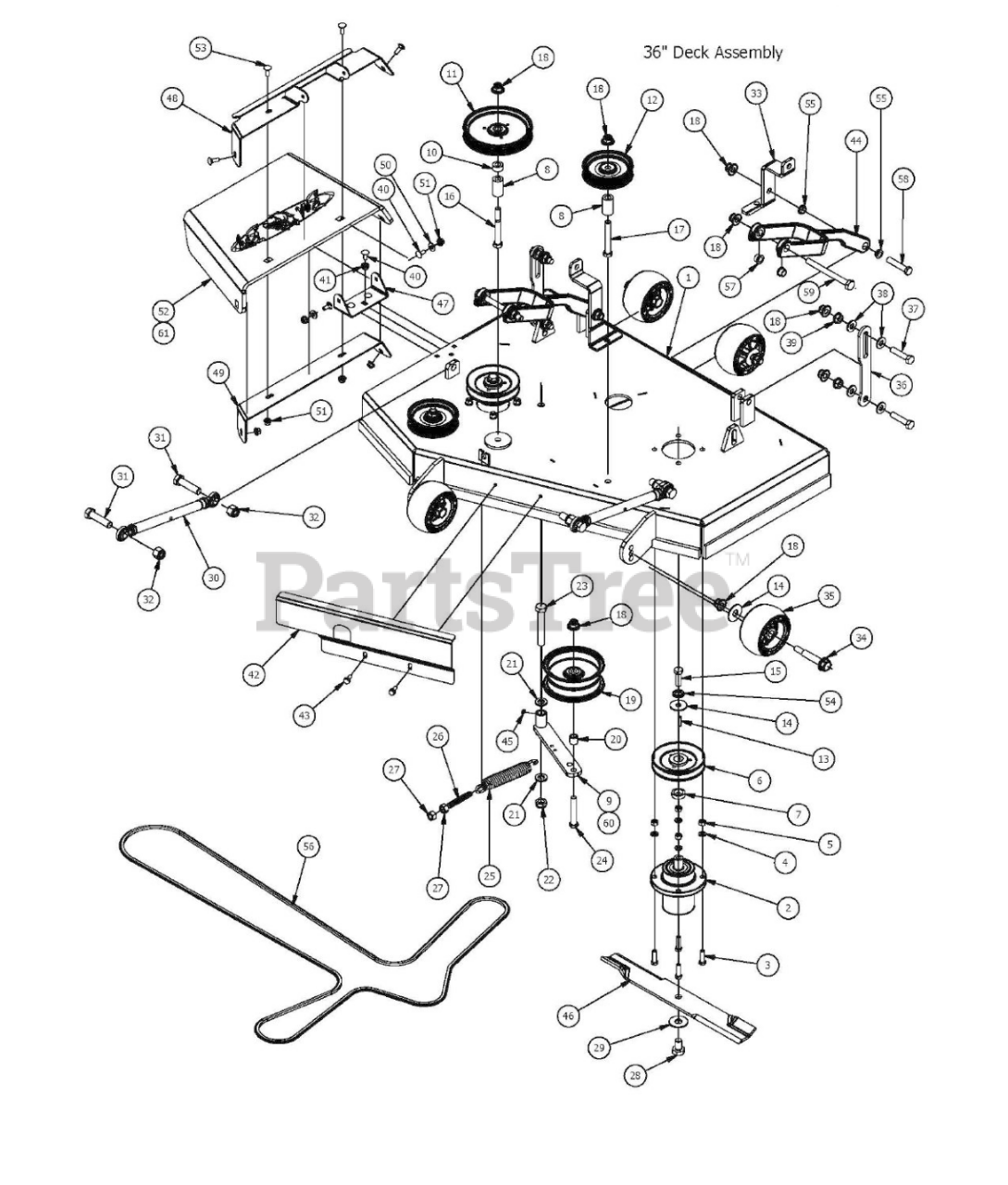

36" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-1136-00

36 Stand On Deck

$

$

Currently unavailable

2

Bad Boy 037-2000-00

Spindle Assembly

$232.99

$

In Stock, Qty 17

0

3

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

4

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 033-4820-00

Deck Pulley

$33.99

$

In Stock, Qty 13

0

7

Bad Boy 025-0060-00

36 Deck Spindle Spacer

$6.99

$

Usually ships in 4-7 days

0

8

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

9

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

10

Bad Boy 025-7036-00

1/2 Solid Shaft Collar (W/1 Set Screw) Zinc

$4.99

$

In Stock, only 2 left!

0

11

Bad Boy 033-7201-00

5-3/4 Idler Pulley-Don Dye

$37.99

$

In Stock, Qty 20+

0

12

Bad Boy 033-7026-00

5 V Idler Pulley 1/2" Bore

$37.99

$

Usually ships in 4-7 days

0

13

Bad Boy 042-0010-00

3/16 x 1 Square Key

$4.99

$

In Stock, only 4 left!

0

14

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

15

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

16

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

17

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, only 2 left!

0

20

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 314 Length

$3.49

$

In Stock, Qty 7

0

21

Bad Boy 019-6017-00

.630 ID X 1.122 OD X .142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

24

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

25

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

26

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

Usually ships in 4-7 days

0

27

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

28

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

29

Bad Boy 019-5038-00

5/8" Flat Washer

$1.99

$

In Stock, only 4 left!

0

30

Bad Boy 048-6060-00

Turnbuckle (Top Link)

$60.99

$

Usually ships in 4-7 days

0

31

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

32

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

33

Bad Boy 039-2009-00

Stand-On Deck Stop

$

$

Currently unavailable

34

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

35

Bad Boy 022-1000-00

Anti-Scalp Roller

$18.99

$

In Stock, Qty 20+

0

36

Bad Boy 039-0235-00

Longer deck hanger

$7.99

$

Usually ships in 0 days

0

37

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

38

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

39

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

40

Bad Boy 018-8062-00

5/16-18 X 3/4 Carriage Bolt

$0.99

$

Usually ships in 4-7 days

0

41

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

42

Bad Boy 014-4836-00

36 Stand-On Deck Shield

$

$

Currently unavailable

43

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

44

Bad Boy 031-6020-00

Deck Arm Assembly

$151.99

$

Usually ships in 4-7 days

0

45

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

46

Bad Boy 038-0001-00

54" Deck Fusion Blade For Outlaw

$24.99

$

In Stock, Qty 20+

0

47

Bad Boy 206-6020-00

Chute Hanger 48 MZ

$30.99

$

Usually ships in 4-7 days

0

48

Bad Boy 039-4891-00

Discharge Chute Bracket (Upper)

$37.99

$

Usually ships in 4-7 days

0

49

Bad Boy 039-4890-00

Discharge Chute Bracket (Lower)

$37.99

$

Usually ships in 4-7 days

0

50

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

51

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

52

Bad Boy 210-6015-00

Rubber Discharge Chute

$56.99

$

Usually ships in 4-7 days

0

53

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

54

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

Usually ships in 4-7 days

0

55

Bad Boy 032-5057-00

Flange Bushing For Lower Deck Arm

$15.99

$

In Stock, only 3 left!

0

56

Bad Boy 041-5200-00

36 inch Deck Belt -B111

$85.99

$

In Stock, only 3 left!

0

57

Bad Boy 032-5056-00

Flange Bushing For Upper Deck Arm

$6.49

$

In Stock, only 3 left!

0

58

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

59

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

60

Bad Boy 039-6945-05

Idler Arm Assembly

$72.99

$

Usually ships in 4-7 days

0

61

Bad Boy 210-6015-98

Chute Assembly

$166.99

$

In Stock, only 2 left!

0
