Outlaw Stand-On - Bad Boy Stand-On Mower (2017) Podium & Battery Parts Diagram

Stand-On Mower

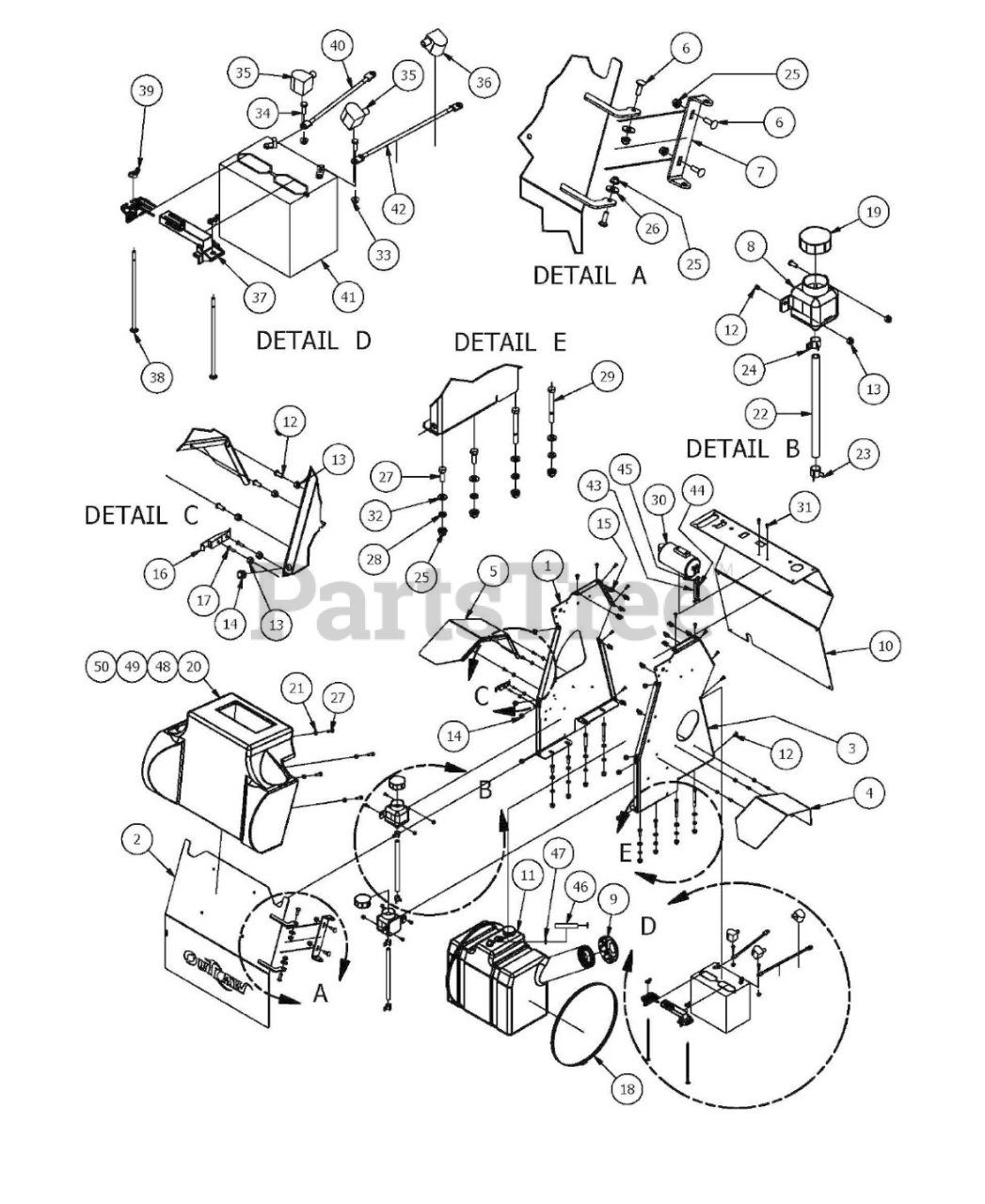

Podium & Battery Parts Diagram

  • Title

1

Bad Boy 079-4110-00

2015 Podium Panel Left

$

$

Currently unavailable

2

Bad Boy 079-4050-00

Door Panel Assembly

$

$

Currently unavailable

3

Bad Boy 079-4105-00

2015 Podium Panel Right

$

$

Currently unavailable

4

Bad Boy 074-0050-00

Fender (Right Side)

$45.99

$

Usually ships in 0 days

0

5

Bad Boy 074-0060-00

Fender (Left Side)

$45.99

$

Usually ships in 0 days

0

6

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 1 left!

0

7

Bad Boy 039-0070-00

Back Cover Hinge Bracket

$15.99

$

Usually ships in 4-7 days

0

8

Bad Boy 067-8090-00

350ml Expansion Tank

$33.99

$

In Stock, Qty 9

0

9

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

10

Bad Boy 079-4100-00

2015 Podium Front Panel

$

$

Currently unavailable

11

Bad Boy 067-0030-00

Fuel Tank

$287.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-8064-00

1/4" x 5/8" BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-0054-00

1/4-20 Cage Nut

$1.49

$

Usually ships in 4-7 days

0

16

Bad Boy 052-3000-00

Steel Pump Cover Latch

$31.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

18

Bad Boy 072-0050-00

Fuel Tank Clamp-Stand On

$12.99

$

Usually ships in 4-7 days

0

19

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

20

Bad Boy 071-5075-00

Cushion-2015 Stand On Mower

$376.99

$

Usually ships in 4-7 days

0

21

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

22

Bad Boy 051-8063-00

3/8" Clear Hose

$3.49

$

In Stock, Qty 7

0

23

Bad Boy 072-8066-00

1/2 Hose Clamp

$2.49

$

Usually ships in 4-7 days

0

24

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

25

Bad Boy 013-8049-00

5/16" Nylock Flange Nut Zinc

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

Usually ships in 4-7 days

0

27

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

29

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 2 left!

0

31

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 7

0

32

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

33

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

35

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

36

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

37

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, only 1 left!

0

38

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

$1.99

$

In Stock, Qty 8

0

39

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

Usually ships in 4-7 days

0

40

Bad Boy 064-0030-00

Ground Cable

$19.99

$

Usually ships in 4-7 days

0

41

Bad Boy 068-8049-00

Battery

$

$

Not available

42

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, only 3 left!

0

43

Bad Boy 051-8072-00

1/4" Vinyl Tubing

$3.49

$

In Stock, Qty 6

0

44

Bad Boy 051-8073-00

3/16 Vinyl Tubing

$3.49

$

In Stock, only 2 left!

0

45

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

46

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

47

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

48

Bad Boy 071-6002-00

Cup Holder

$19.99

$

Usually ships in 4-7 days

0

49

Bad Boy 071-5999-00

Cup Holder Drain Tube

$9.49

$

Usually ships in 4-7 days

0

50

Bad Boy 071-6003-00

Plastic Tray

$35.99

$

Usually ships in 4-7 days

0
