Outlaw Stand-On - Bad Boy Stand-On Mower (2017) Podium Panels Parts Diagram

Stand-On Mower

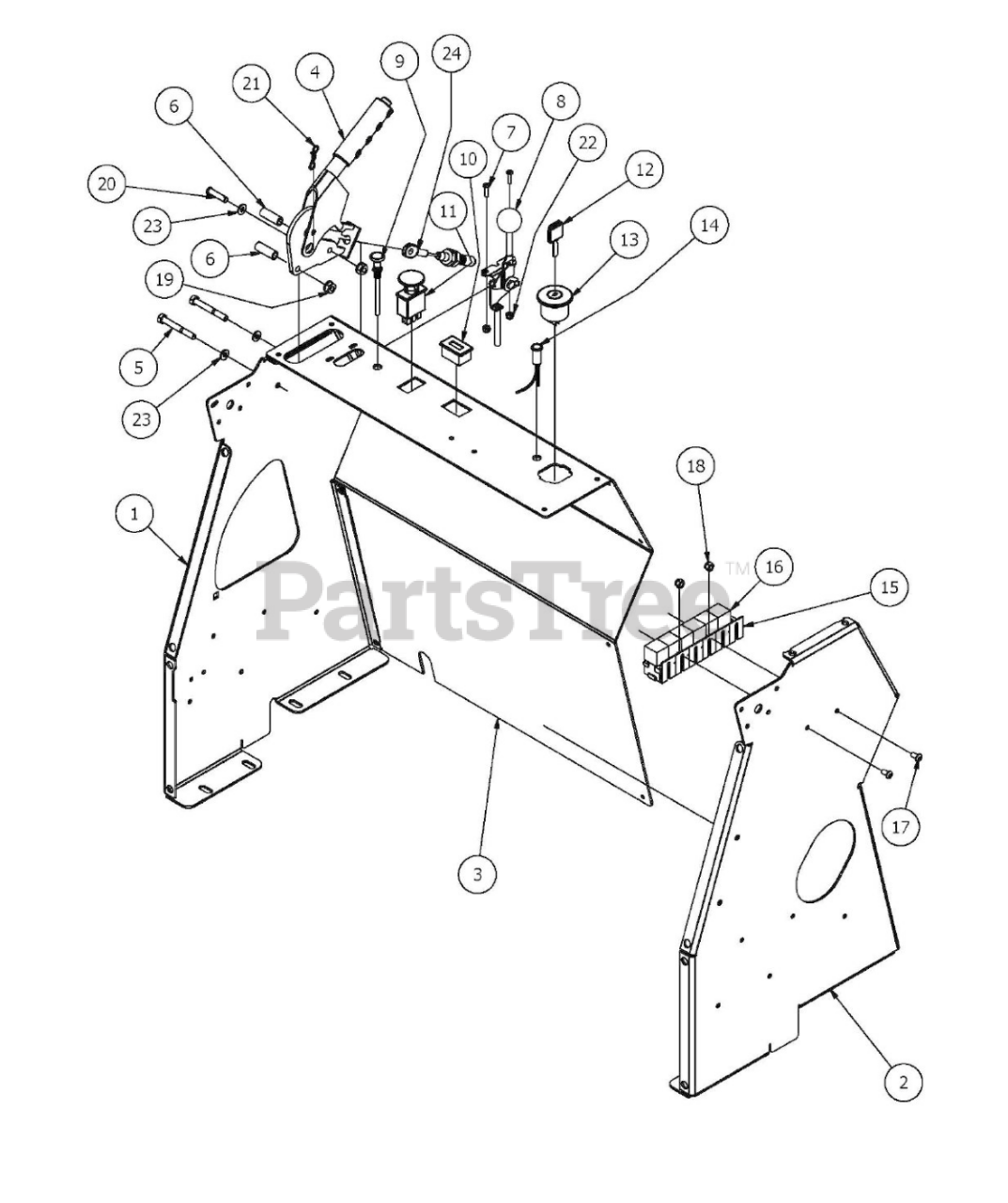

Podium Panels Parts Diagram

  • Title

1

Bad Boy 079-4110-00

2015 Podium Panel Left

$

$

Currently unavailable

2

Bad Boy 079-4105-00

2015 Podium Panel Right

$

$

Currently unavailable

3

Bad Boy 079-4100-00

2015 Podium Front Panel

$

$

Currently unavailable

4

Bad Boy 069-1065-00

Brake Handle- Stand On

$151.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 025-0014-00

2017 Brake/Latch Spacer-Stand On

$6.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-8058-00

10-24 x 1 BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 055-8021-00

Throttle-All Outlaws

$48.99

$

Usually ships in 4-7 days

0

9

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

10

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

11

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

12

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

13

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

14

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

15

Bad Boy 086-0090-00

Wiring Harness - 2015 Stand On

$283.99

$

Usually ships in 4-7 days

0

16

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0

17

Bad Boy 018-2012-00

1/4" x 1/2" BS C/S 18-8 SS

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 040-7000-00

PIN .312 PIN

$4.99

$

Usually ships in 4-7 days

0

21

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 013-5019-00

#10 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

24

Bad Boy 064-3000-00

Brake Cable

$56.99

$

In Stock, only 4 left!

0
