Outlaw XP - Bad Boy Zero-Turn Mower (2012) Seat Frame Assembly Parts Diagram

Zero-Turn Mower

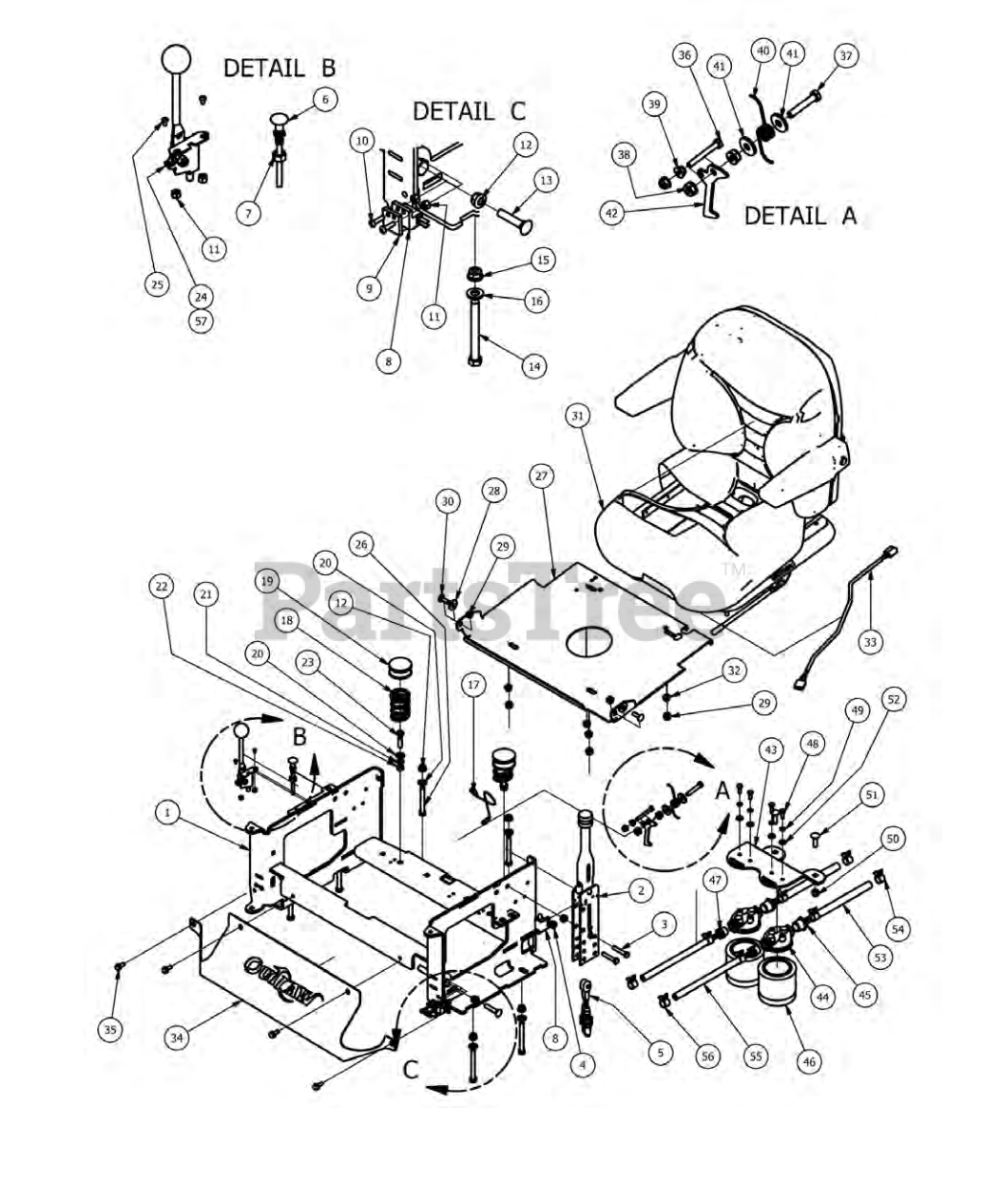

Seat Frame Assembly Parts Diagram

  • Title

1

Bad Boy 080-5000-00

Outlaw Seat Bracket 2012

$

$

Not available

2

Bad Boy 069-8054-00

Hand Brake

$136.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-8059-00

5/16" x 13/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

6

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

9

Bad Boy 025-6041-00

Switch Block Plastic

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-8056-00

10-24 x 1 BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

13

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-1010-00

3/8-16x3-1/2 grade 5 hex bolt

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

16

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 2 left!

0

18

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

19

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

20

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

24

Bad Boy 055-8021-00

Throttle-All Outlaws For Vanguard Models

$48.99

$

Usually ships in 4-7 days

0

25

Bad Boy 018-5200-00

10-24 X 5/8 BS C/S 18-8 SS

$0.99

$

In Stock, Qty 5

0

26

Bad Boy 018-4700-00

3/8-16x3 grade 5 hex bolt

$1.49

$

Usually ships in 4-7 days

0

27

Bad Boy 026-2006-00

2006 Seat Plate

$105.99

$

Usually ships in 4-7 days

0

28

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

29

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 071-5000-00

2010 Outlaw Seat

$

$

Currently unavailable

32

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

33

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

34

Bad Boy 014-2100-00

Outlaw Cooler Cover

$

$

Currently unavailable

35

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

36

Bad Boy 018-0011-00

1/4-20 x 2 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

37

Bad Boy 018-0012-00

5/16-18 X 2 Hex C/S (GR.5)

$2.99

$

In Stock, Qty 13

0

38

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

39

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

40

Bad Boy 034-1075-00

Torsion Spring for Seat latch

$5.99

$

Usually ships in 4-7 days

0

41

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

42

Bad Boy 031-0200-00

Seat Latch Lever

$3.49

$

Usually ships in 4-7 days

0

43

Bad Boy 039-2130-00

Outlaw Filter Bracket

$22.99

$

Usually ships in 0 days

0

44

Bad Boy 062-8013-00

Filter Head-Hydraulic Filter

$26.99

$

Usually ships in 4-7 days

0

45

Bad Boy 024-5050-00

Filter Head Fitting 1/2 x 1/2

$8.49

$

Usually ships in 4-7 days

0

46

Bad Boy 063-8014-00

Hydraulic filter

$33.99

$

In Stock, Qty 20+

0

47

Bad Boy 024-5342-00

1/2" Pipe to 3/8" Barb

$8.49

$

Usually ships in 4-7 days

0

48

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

49

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

50

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

51

Bad Boy 018-5043-00

3/8" x 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

52

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

53

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, only 3 left!

0

54

Bad Boy 072-8066-00

1/2 Hose Clamp

$2.49

$

Usually ships in 4-7 days

0

55

Bad Boy 051-8063-00

3/8 clear hose price per foot

$3.49

$

In Stock, Qty 7

0

56

Bad Boy 072-8065-00

3/8 hose clamp

$1.49

$

In Stock, only 2 left!

0

57

Bad Boy 055-8017-00

Throttle for Kawasaki Models

$48.99

$

Usually ships in 4-7 days

0
