Outlaw XP - Bad Boy Zero-Turn Mower (2015) 72" Deck Parts Diagram

Zero-Turn Mower

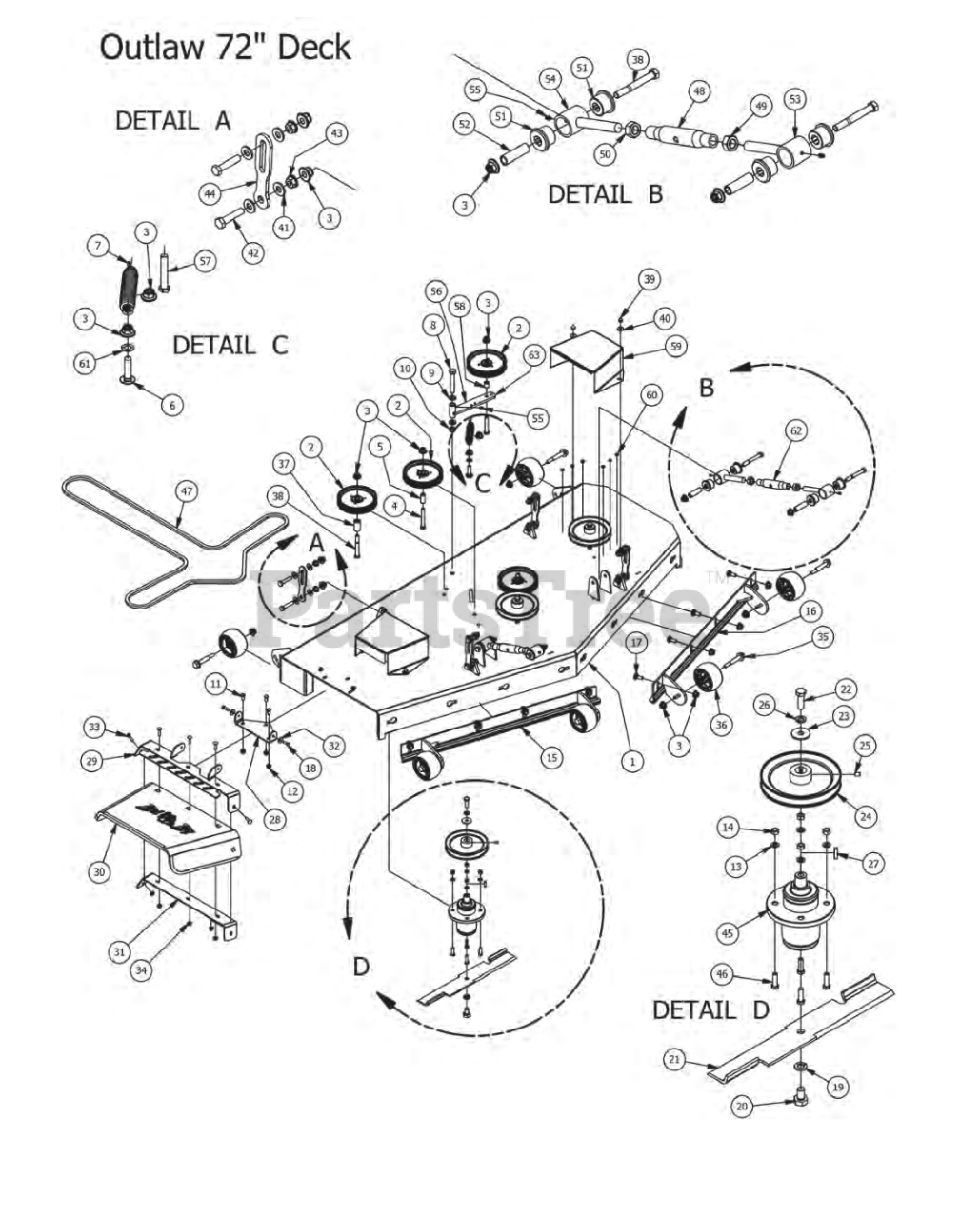

72" Deck Parts Diagram

  • Title

1

Bad Boy 060-7250-00

2015 72" Deck

$911.99

$

Usually ships in 4-7 days

0

2

Bad Boy 033-7201-00

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

5

Bad Boy 025-5338-00

.502 ID X.75 OD X 1.500 Leng

$3.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

7

Bad Boy 034-2020-00

2015 Deck Idler Spring Outlaws

$18.99

$

In Stock, Qty 20+

0

8

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

9

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 060-7211-00

72" Deck Adustable Front (Right)

$75.99

$

Usually ships in 4-7 days

0

16

Bad Boy 060-7210-00

72" Deck Adjustable Front (Left)

$75.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-3003-00

1/2" x 1 1/4 Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

18

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-6020-00

5/8" x 1 1/2" Gr8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

21

Bad Boy 038-7230-00

72" High Lift Fusion Blade

$25.99

$

In Stock, Qty 20+

0

22

Bad Boy 018-6019-00

1/2"-20 x 1 1/2-Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 7

0

23

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

24

Bad Boy 033-7203-00

7 Deck Pulley

$37.99

$

In Stock, Qty 6

0

25

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, only 1 left!

0

27

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 8

0

28

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

29

Bad Boy 039-4864-00

60" Discharge Chute Upper Hanger

$45.99

$

Usually ships in 4-7 days

0

30

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0

31

Bad Boy 039-4863-00

60" Discharge Lower Bracket

$34.99

$

Usually ships in 4-7 days

0

32

Bad Boy 019-6042-00

360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

33

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

34

Bad Boy 013-8049-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

Usually ships in 4-7 days

0

35

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

36

Bad Boy 022-1000-00

Anti-Scalp Rollers

$18.99

$

In Stock, Qty 20+

0

37

Bad Boy 025-5339-00

13/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

38

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

39

Bad Boy 013-0004-00

Acorn nut-pulley Cover

$3.49

$

In Stock, only 2 left!

0

40

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, only 4 left!

0

41

Bad Boy 019-8054-00

505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

42

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

43

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

44

Bad Boy 039-2125-00

Deck Hanging Tab

$

$

Not available

45

Bad Boy 037-4000-50

OUTLAW SPINDLE ASSEMBLY

$

$

Not available

46

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

47

Bad Boy 041-0202-00

B202 Belt for 72" Outlaw

$124.99

$

In Stock, Qty 20+

0

48

Bad Boy 048-7020-00

Body

$30.99

$

Usually ships in 4-7 days

0

49

Bad Boy 013-0008-00

3/4-10 Left-Handed Hex Nuts Zinc

$3.49

$

In Stock, only 2 left!

0

50

Bad Boy 013-0007-00

3/4-10 Hex Nuts Zinc

$3.49

$

In Stock, only 2 left!

0

51

Bad Boy 032-2000-00

Bushing

$11.99

$

In Stock, only 2 left!

0

52

Bad Boy 032-2001-00

Sleeve

$4.99

$

In Stock, only 2 left!

0

53

Bad Boy 048-7022-00

Turn Left-Handed

$33.99

$

In Stock, only 3 left!

0

54

Bad Boy 048-7021-00

Right-Handed End

$33.99

$

In Stock, only 1 left!

0

55

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

56

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

57

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

58

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3/4 Length

$3.49

$

In Stock, Qty 7

0

59

Bad Boy 014-7204-00

72 Spindle Cover

$45.99

$

Usually ships in 4-7 days

0

60

Bad Boy 058-6000-00

Black, Round Stick-On Rubber Bumpon

$0.99

$

Usually ships in 4-7 days

0

61

Bad Boy 019-0007-00

517 Square Hole Round Washer

$1.49

$

In Stock, only 1 left!

0

62

Bad Boy 048-7000-00

Turnbuckle Assembly

$

$

Not available

63

Bad Boy 039-6945-98

Deck Idler Assembly-Includes parts: 3,9,59,60,61

$83.99

$

Usually ships in 4-7 days

0
