Outlaw XP - Bad Boy Zero-Turn Mower (2015) Hydraulic Pumps & Wheel Motors Parts Diagram

Zero-Turn Mower

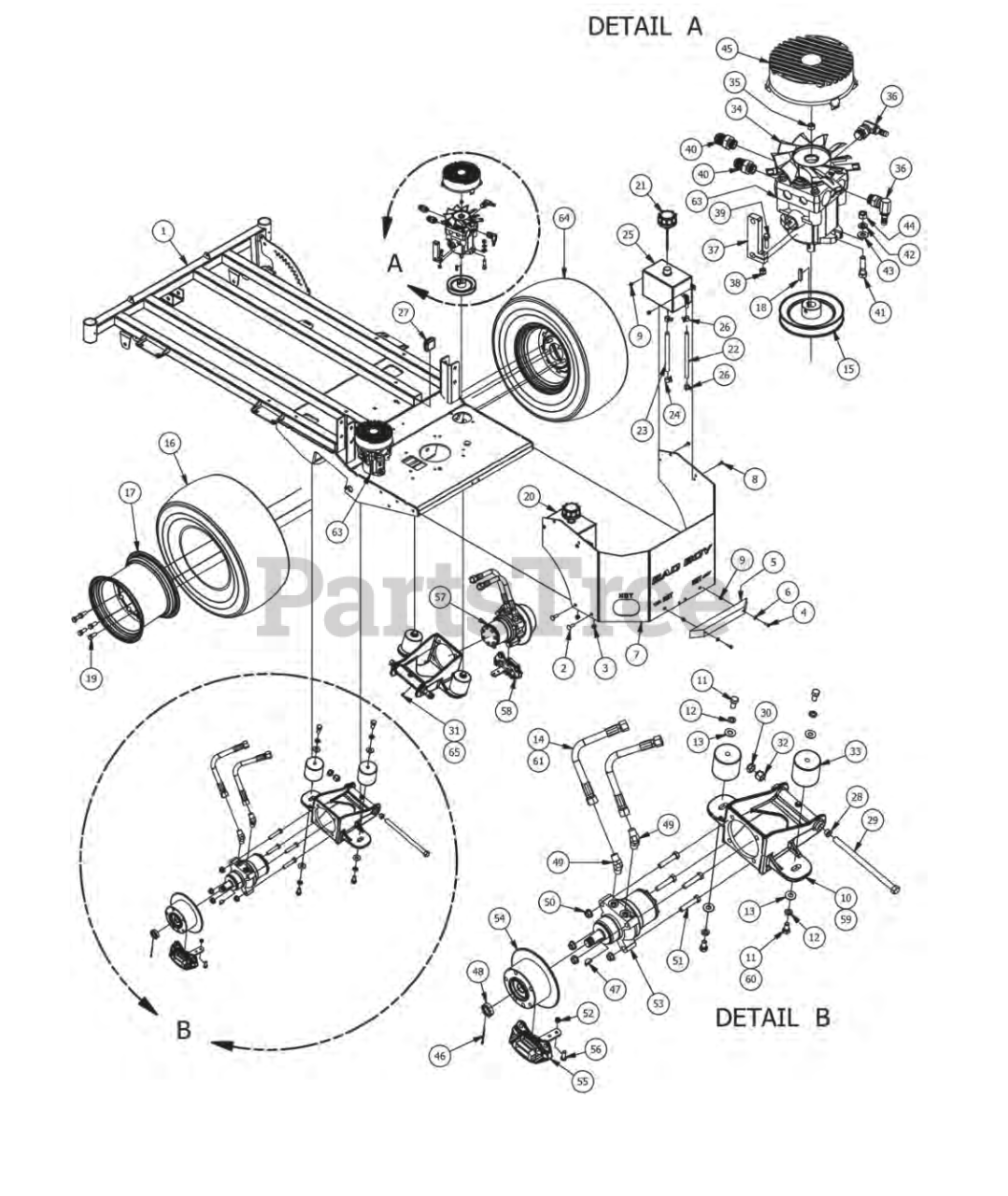

Hydraulic Pumps & Wheel Motors Parts Diagram

  • Title

1

Bad Boy 070-5380-00

2015 XP Frame

$

$

Not available

2

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

3

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-4702-00

1/4-20 x 1-1/4 GR 5 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 029-7037-00

14" Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

6

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 026-2180-00

2015 Outlaw Rear Plate

$205.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 070-8000-00

60 Suspension kit Wheel Motor

$332.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, only 1 left!

0

13

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 051-2000-00

18" hose Assembly W/forged 45 Degr

$52.99

$

Usually ships in 4-7 days

0

15

Bad Boy 033-5003-00

5" Pump Pulley

$60.99

$

In Stock, only 2 left!

0

16

Bad Boy 022-4005-00

24 x 12.00-10 outlaw Tire

$249.99

$

Usually ships in 4-7 days

0

17

Bad Boy 022-4070-00

10" Black Wheel For Outlaw

$150.99

$

Usually ships in 4-7 days

0

18

Bad Boy 042-0010-00

3/16 x 1 Square Key

$4.99

$

In Stock, only 4 left!

0

19

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$5.99

$

In Stock, Qty 7

0

20

Bad Boy 067-8051-00

Outlaw Hydraulic Tank Left

$229.99

$

Usually ships in 4-7 days

0

21

Bad Boy 066-8050-00

Hydraulic Tank Cap W/Dipstick

$33.99

$

In Stock, only 2 left!

0

22

Bad Boy 051-8063-00

3/8 clear hose

$3.49

$

In Stock, Qty 7

0

23

Bad Boy 051-8064-00

1/2 Clear Braded Hose Priced/Foot

$3.49

$

In Stock, only 3 left!

0

24

Bad Boy 072-8066-00

1/2 Hose Clamp

$2.49

$

Usually ships in 4-7 days

0

25

Bad Boy 067-8050-00

Outlaw Hydraulic Tank Right

$229.99

$

Usually ships in 4-7 days

0

26

Bad Boy 072-8065-00

3/8 hose clamp

$1.49

$

In Stock, only 2 left!

0

27

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

28

Bad Boy 032-5056-00

Flange Bushing for Deck Arm-Upper

$6.49

$

In Stock, only 3 left!

0

29

Bad Boy 018-2051-00

5/8x10" Hex Bolt (Grade8)

$16.99

$

Usually ships in 4-7 days

0

30

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 024-3050-00

1/4" Drive in Grease Fitting (72" Suspension Kit Wheel Moter)

$1.49

$

Usually ships in 4-7 days

0

32

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

33

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

34

Bad Boy 015-9999-00

Hydraulic Fan

$45.99

$

In Stock, only 2 left!

0

35

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

36

Bad Boy 024-5206-00

3/8" X 9/16"-18 ORB Male Fitting (S,A-2 P-4)

$13.99

$

Usually ships in 4-7 days

0

37

Bad Boy 031-5333-00

Pump Arm

$24.99

$

In Stock, only 2 left!

0

38

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-4007-00

1/4-20 x 1 GR 5 hex bolt zinc

$1.49

$

Usually ships in 4-7 days

0

40

Bad Boy 024-5343-00

Hydraulic Pump Fitting 6400-10

$8.49

$

Usually ships in 4-7 days

0

41

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

42

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

43

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

44

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

45

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

46

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

0

47

Bad Boy 042-7041-00

Woodruff Key

$10.99

$

In Stock, only 2 left!

0

48

Bad Boy 013-7050-00

1" Castle Nut for Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

49

Bad Boy 024-0050-00

45 Degree Fitting 31704-10-10

$33.99

$

Usually ships in 4-7 days

0

50

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

51

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

52

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 2 left!

0

53

Bad Boy 015-4501-00

15cc Parker Wheel Motor-Left

$649.99

$

Usually ships in 4-7 days

0

54

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, only 4 left!

0

55

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

56

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

57

Bad Boy 015-4500-00

15cc Parker Wheel Motor- Right

$649.99

$

Usually ships in 4-7 days

0

58

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

59

Bad Boy 070-8001-00

72" Suspension Kit Wheel Moter

$302.99

$

Usually ships in 4-7 days

0

60

Bad Boy 018-2080-00

1/2-13 x 1 1/4 Hex Bolt (Only on 60" Suspension Kit Wheel Motor)

$1.99

$

Usually ships in 4-7 days

0

61

Bad Boy 051-6005-00

18" Hydraulic Hose Only

$38.99

$

Usually ships in 4-7 days

0

62

Bad Boy 050-3050-00

Right Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

63

Bad Boy 050-3000-00

Left Pump 12cc

$1025.99

$

Usually ships in 4-7 days

0

64

Bad Boy 022-4050-00

24 x 12.00-10 Tire and Black Wheel Assembly

$298.99

$

Usually ships in 4-7 days

0

65

Bad Boy 024-8000-00

3/8" Threaded Grease Fitting (60" Suspension Kit Wheel Moter)

$0.99

$

Usually ships in 4-7 days

0
