P 1100 (107178003) - Ryobi 18V Walk-Behind Mower, Rev 01 (2019-02) General Assembly 2 Parts Diagram

18V Walk-Behind Mower, Rev 01

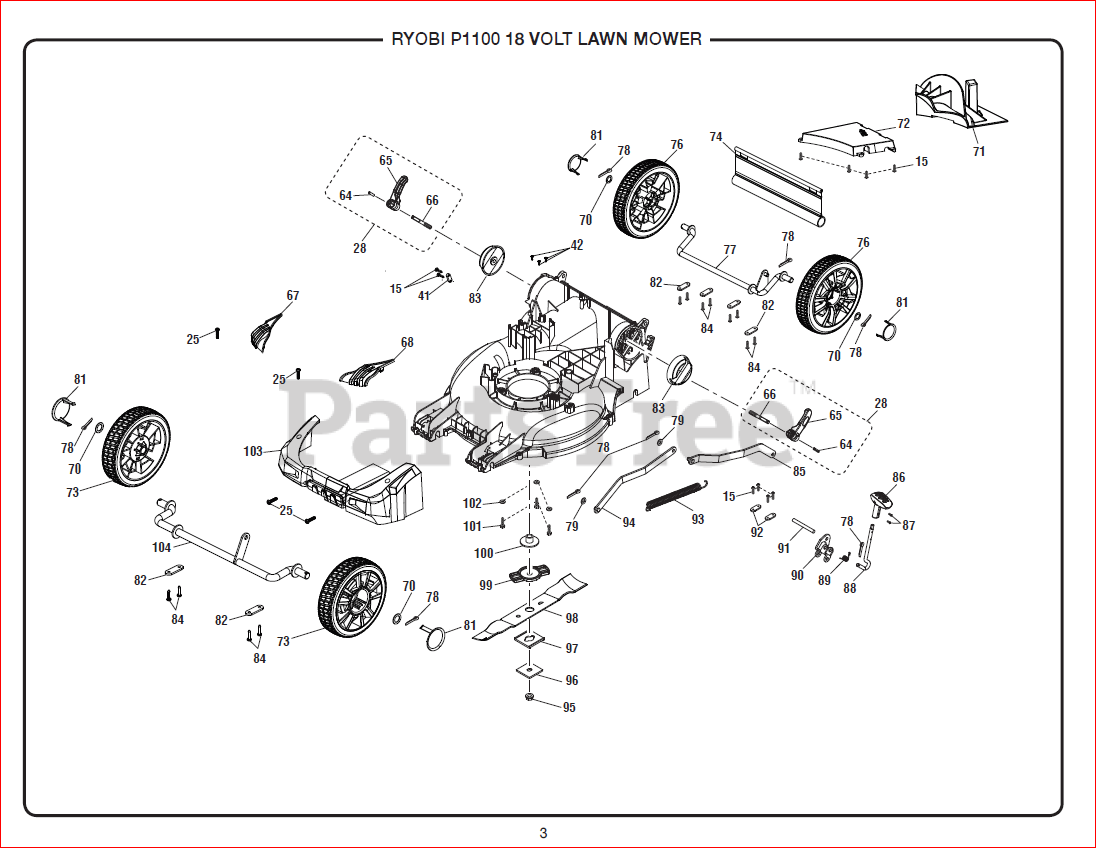

General Assembly 2 Parts Diagram

  • Title

15

Homelite 660608002

Screw (M4 x 16 mm, T20 Torx Pan Hd.).

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, Qty 6

0

28

Homelite 350878001

Handle Lock Assembly

Note: (Inc. Key Nos. 64-66)

$1.49

$

In Stock, only 1 left!

0

41

Homelite 513211001

Wire Press Plate

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 660608001

Screw (M4.2 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

64

Homelite 679988001

Spring Pin

$1.49

$

Usually ships in 3-7 days

0

65

Homelite 526904001

Adjust Height Handle

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 661865002

Quick Lock Press

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 526977001

Grass Protector (Right)

$

$

Not available

68

Homelite 526976001

Grass Protector (Left)

$

$

Not available

70

Homelite 639113003

Washer (ID13.5 x OD20 x 1t)

$1.49

$

Usually ships in 3-7 days

0

71

Homelite 526980001

Mulching Plug

$

$

Not available

72

Homelite 525668001

Rear Cover

$

$

Not available

73

Homelite 311253001

Front Wheel w/Bearing & Cap 6 in.

Note: (Inc. Key No. 81)

$8.49

$

Usually ships in 3-7 days

0

74

Homelite 528595001

Rear Skirt

$11.99

$

In Stock, only 1 left!

0

76

Homelite 311739001

Rear Wheel w/Bearing & Cap 8 in.

Note: (Inc. Key No. 81)

$

$

Not available

77

Homelite 636378002

Rear Wheel Axle

$11.99

$

Usually ships in 3-7 days

0

78

Homelite 678279004

Cotter PinÏ? (2.5)

$1.49

$

Usually ships in 3-7 days

0

79

Homelite 639013001

Washer (ID8.4 x OD18 x 1t)

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 526876001

Wheel Cover (Before Serial Number EU18234D020307)

$1.49

$

In Stock, only 1 left!

0

82

Homelite 639116001

Axle Pressure Plate

$

$

Not available

83

Homelite 526922001

Quick Lock Press Block

$1.49

$

Usually ships in 3-7 days

0

84

Homelite 661189003

Screw (M4 x 18 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, only 4 left!

0

85

Homelite 639186001

Rear Lift Rod

$6.99

$

Usually ships in 3-7 days

0

86

Homelite 526924001

Height Adjustment Handle

$1.49

$

Usually ships in 3-7 days

0

87

Homelite 664021001

Screw (M3 x 9 mm, Flat Hd.)

$

$

Not available

88

Homelite 639204001

Height Adjustment Lever

$3.49

$

Usually ships in 3-7 days

0

89

Homelite 679992001

Torsion Spring (Height Adjustment)

$1.49

$

Usually ships in 3-7 days

0

90

Homelite 639203001

Adjustment Height Bracket

$3.99

$

Usually ships in 3-7 days

0

91

Homelite 639122001

Axle (Height Adjustment)

$1.49

$

Usually ships in 3-7 days

0

92

Homelite 639125001

Pressure Plate (Height Adjustment)

$

$

Not available

93

Homelite 694052001

Rentention Spring

$1.99

$

Usually ships in 3-7 days

0

94

Homelite 639185003

Front Lift Rod

$4.49

$

Usually ships in 3-7 days

0

95

Homelite 679075001

Blade Nut (M10 x 1.25, Hex Flange Hd.)

$1.49

$

In Stock, only 2 left!

0

96

Homelite 639118001

Metal Blade Retainer

$1.99

$

Usually ships in 3-7 days

0

97

Homelite 526920001

Spacer

$1.49

$

In Stock, only 4 left!

0

98

Homelite 639180003

Blade (16 in.)

$10.99

$

In Stock, only 1 left!

0

99

Homelite 526921001

Blade Holder

$1.49

$

Usually ships in 3-7 days

0

100

Homelite 639120001

Motor Shaft Bushing

$3.49

$

Usually ships in 3-7 days

0

101

Homelite 660722002

Bolt (M6 x 26 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

102

Homelite 638557001

Washer (ID6.2 x OD15 x 0.08t)

$1.49

$

Usually ships in 3-7 days

0

103

Homelite 526975001

Bumper

$2.99

$

Usually ships in 3-7 days

0

104

Homelite 636379002

Front Wheel Axle

$9.99

$

In Stock, only 1 left!

0

Homelite 941116016

Lithium Label (Left)

$1.49

$

Usually ships in 3-7 days

0
